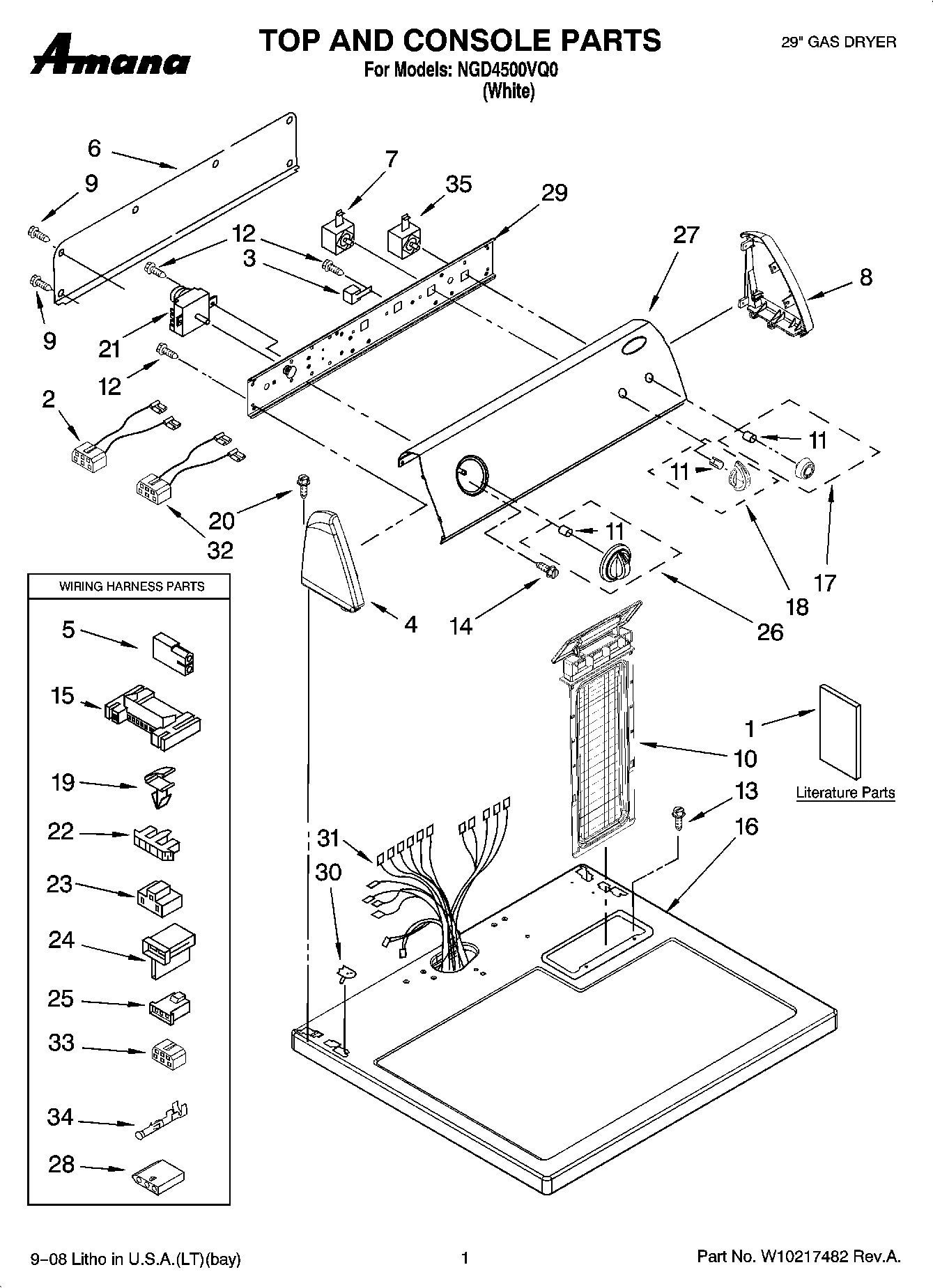

NGD4500VQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Instructions, Installation (English)
1	MAY W10089178
1	MAY 8576796
1	MAY W10150620
2	Wire, Jumper Black (PTS)
3	MAY 694419
4	MAY 8271365
5	Plug, 2-Way Terminal
6	MAY 8274261
7	Switch, Wrinkle Guard
8	MAY 8271359
9	Screw
10	Screen, Lint (White)
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	MAY 8533951
15	CONNECTOR (MOTOR)
16	MAY 8557930
17	MAY W10196504
18	MAY W10196503
19	CLIP, HARNESS
20	Screw, Console
21	MAY 3977678
22	Connector-Timer
23	Connector (PTS) Relay
24	CONNECTOR, 2-POSITION (GAS VALVE)
25	MAY 3403498
26	Timer Knob Assembly
27	Panel, Control
28	MAY 3936144
29	MAY 8271418
30	Nut, Push-In
31	MAY 8299876
32	MAY 3401695
33	Connector
34	Terminal
35	MAY 3977456
