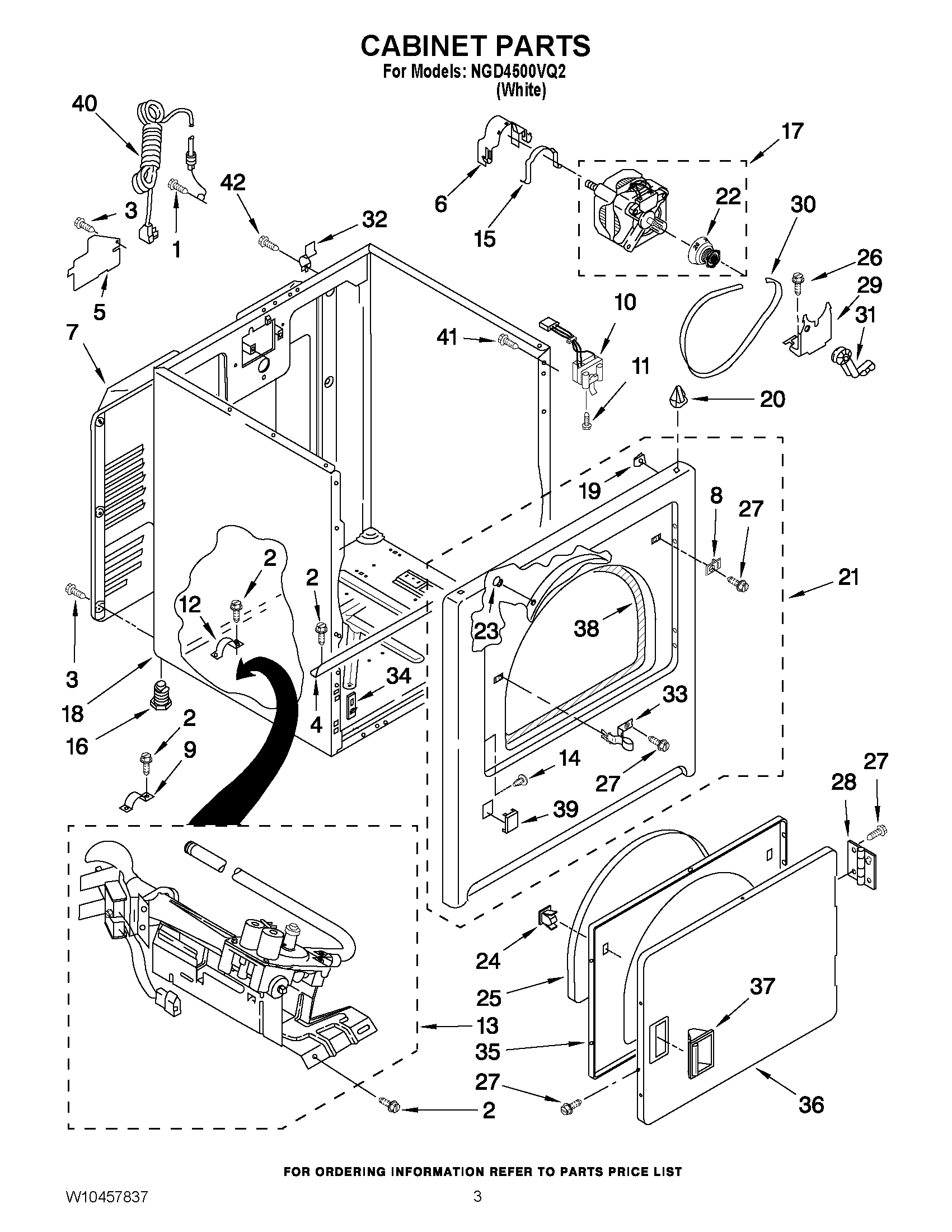

NGD4500VQ2 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 8533974
2	SCREW
3	Screw
4	MAY W10236073
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY 3396805
8	PLUG-STRIKE
9	MAY 3980175
10	MAY 3406109
11	SCREW
12	MAY 341029
13	MAY W10336852
14	PLUG, HINGE HOLES
15	CLAMP, MOTOR MOUNT
16	MAY 3392100
17	Motor Assembly
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	PANEL FRONT (WHITE)
22	Pulley, Motor
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3405246
26	BOLT
27	MAY 342055
28	ASSEMBLY, HINGE AND PIN
29	MAY 348780
30	MAY W10131364
31	IDLER ASSEMBLY
32	Hinge, Top
33	Strike, Door
34	MAY 3394083
35	Door, Rear
36	DOOR FRONT
37	Handle, Door (White)
38	MAY 3406129
39	PLUG, FRONT PANEL (WHITE)
40	MAY W10440460
41	SCREW
42	MAY 359625
