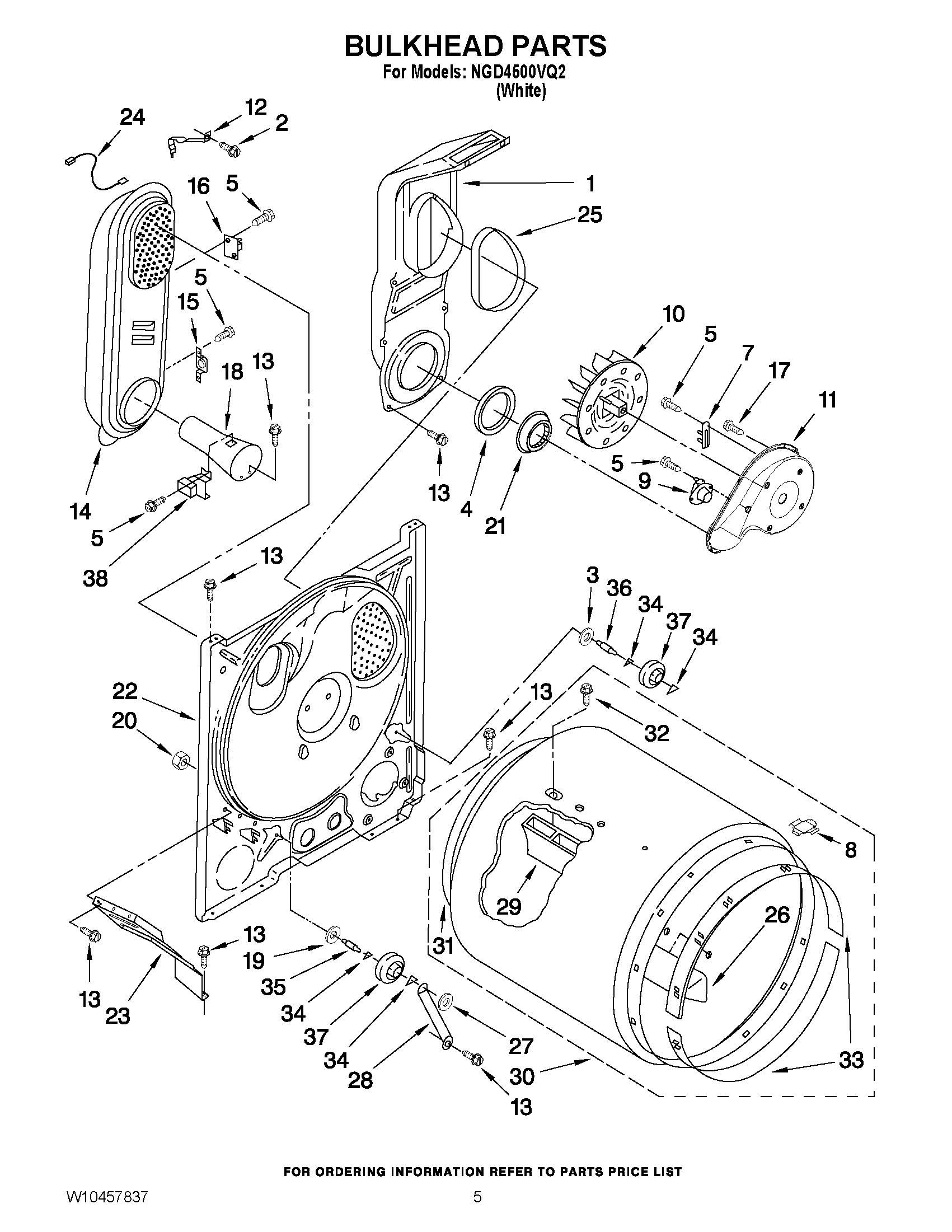

NGD4500VQ2 03 – BULKHEAD PARTS

Products

PositionProduct
1MAY 348368
2Screw
3WASHER
4MAY 347139
5SCREW,8-18 X 3/8
7Fuse, Thermal (91 C)
8Plug, Drum Hole
9MAY 3387134
10Wheel, Blower
11MAY 8577230
12MAY 8066155
13SCREW
14BOX, HEATER (96C)
15MAY W10423382
16MAY 280010
17SCREW
18FUNNEL, BURNER LIGHT
19WASHER
20MAY W10298789
21MAY 696302
22MAY 3403491
23BRACKET, BULKHEAD CHUTE
24WIRE JUMPER
25MAY 339956
26BAFFLE, DRUM (SHORT)
27NUT, PUSH ON
28MAY 3976434
29BAFFLE, DRUM (LONG)
30MAY 695587
31MAY W10352407
32MAY W10219342
33Bearing, Ring
34WASHER, TRI RING
35MAY W10359270
36MAY W10359269
37MAY 3397590
38MAY 338906
