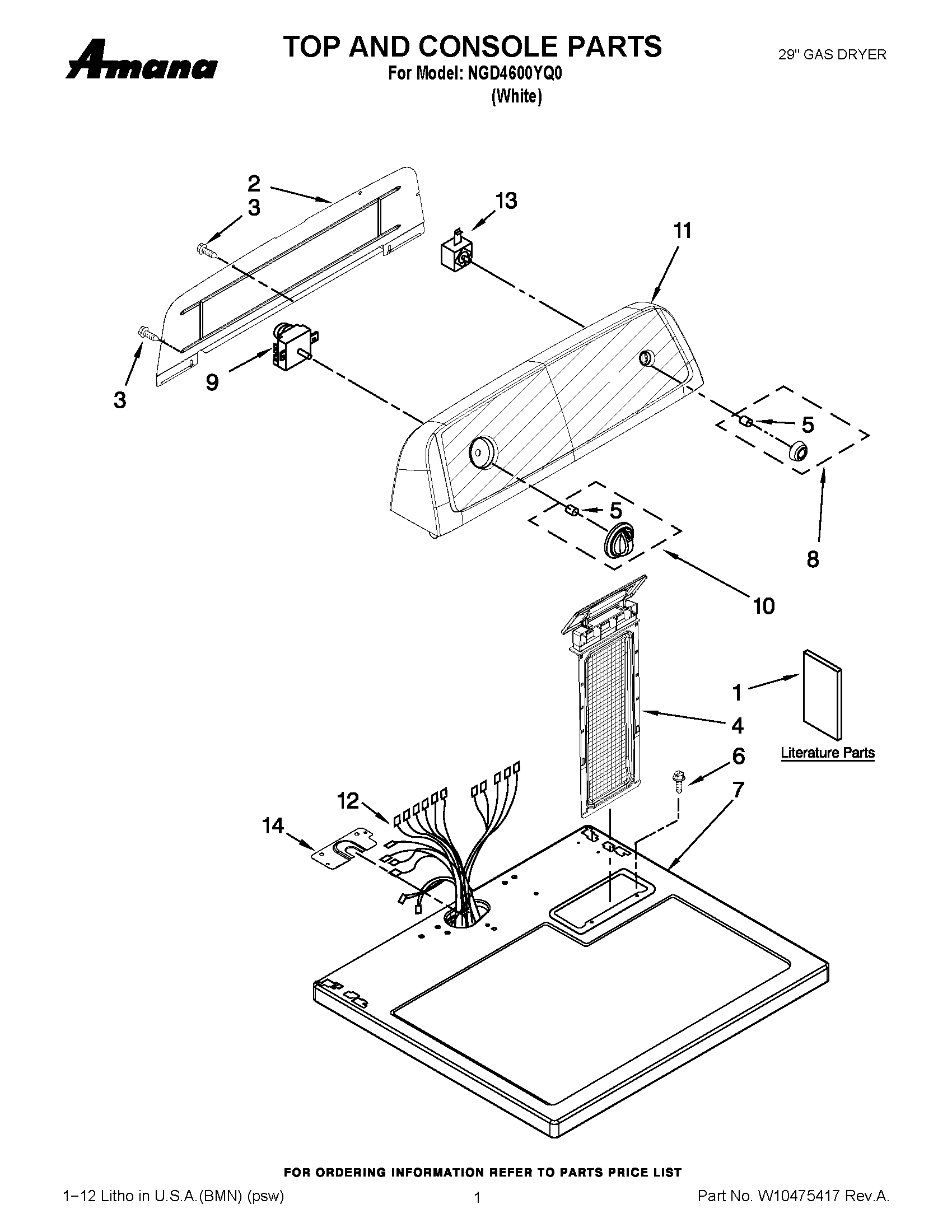

NGD4600YQ0 01 – TOP AND CONSOLE PARTS

NGD4600YQ0 01 – TOP AND CONSOLE PARTS

Written by

in

NGD4600YQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10287572
1INSTRUCTION INSTALLATION
1MAY W10185990
2MAY W10416486
3Screw
4Screen, Lint (White)
5CLIP, SPRING
6SCREW
7MAY 8559800
8KNOB, PUSH TO START (WHITE)
9MAY W10436306
10ASSEMBLY, TIMER KNOB (WHITE)
11MAY W10097039
12MAY W10450287
13MAY W10420741
14MAY W10112578
