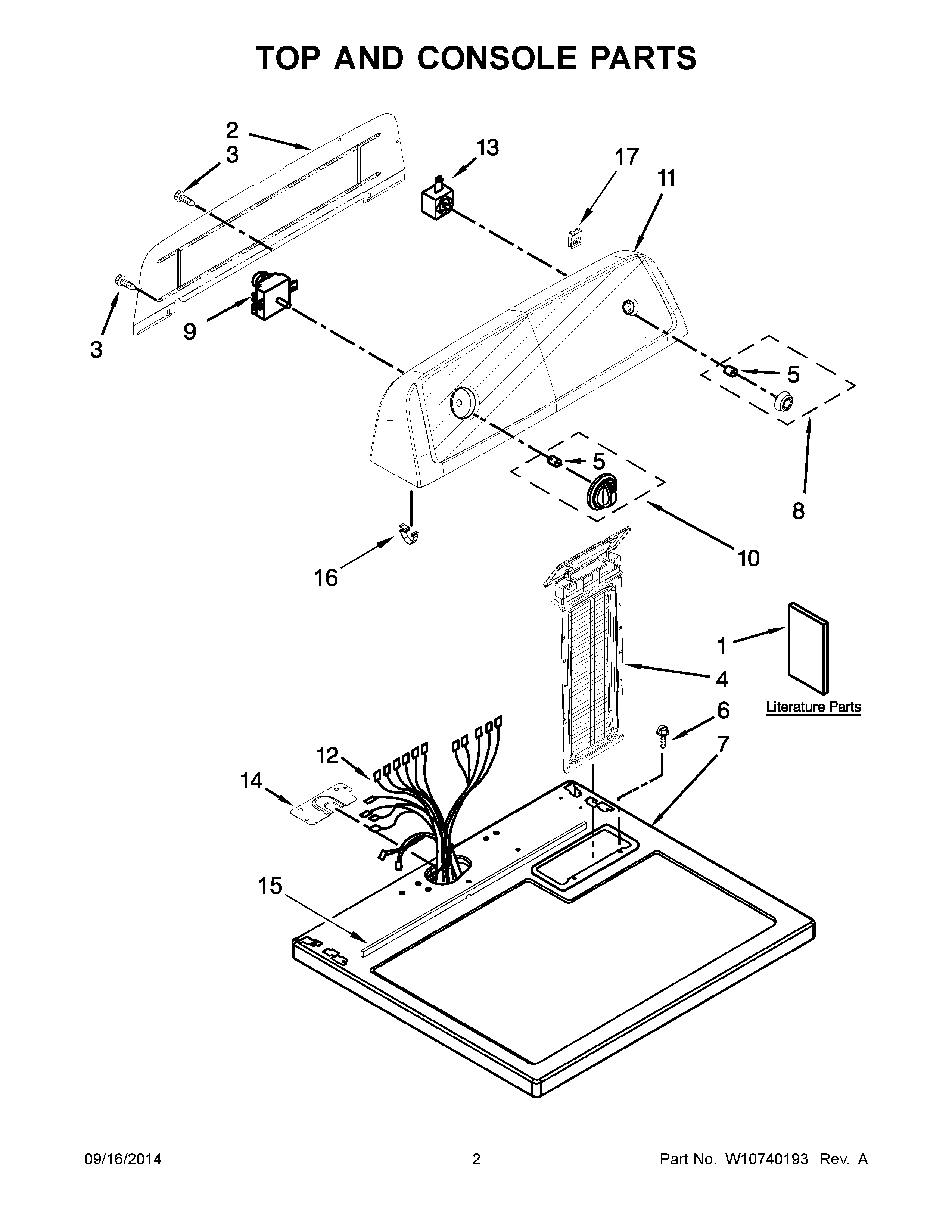

NGD4600YQ3 02 – TOP AND CONSOLE PARTS

NGD4600YQ3 02 – TOP AND CONSOLE PARTS

Written by

in

NGD4600YQ3 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	MAY W10185990
1A	USE AND CARE GUIDE
1	MAY W10514185
2	MAY W10416486
3	Screw
4	MAY W10717210
5	CLIP, SPRING
6	SCREW
7	MAY 8559800
8	KNOB, PUSH TO START (WHITE)
9	MAY W10436306
10	MAY W10711289
11	MAY W10097039
12	MAY W10450287
13	MAY W10420741
14	MAY W10112578
15	MAY W10316616
16	MAY 8312709
17	NUT, "U"
