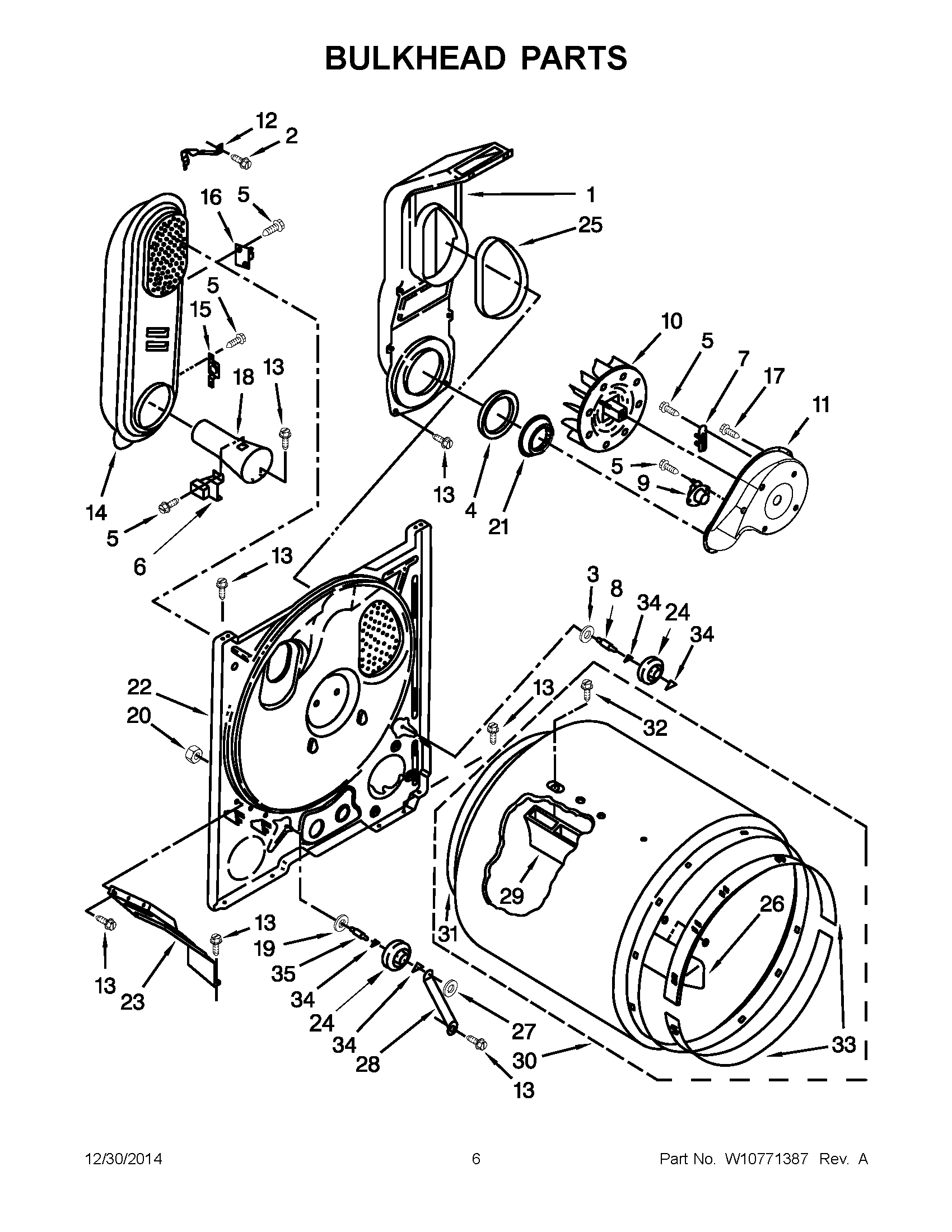

NGD4655EW0 04 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
2	Screw
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 338906
7	Fuse, Thermal (91 C)
8	MAY W10359269
9	MAY 3387134
10	Wheel, Blower
11	MAY 8577230
12	MAY 8066155
13	SCREW
14	BOX, HEATER (96C)
15	MAY W10423382
16	Thermal Cutoff (Includes Illus. 48)
17	SCREW
18	FUNNEL, BURNER LIGHT
19	WASHER
20	MAY W10298789
21	MAY W10389567
22	MAY 3403491
23	BRACKET, BULKHEAD CHUTE
24	MAY 3397590
25	MAY 339956
26	BAFFLE, DRUM (SHORT)
27	NUT, PUSH ON
28	MAY 3976434
29	BAFFLE, DRUM (LONG)
30	ASSEMBLY, DRUM (COMPLETE)
31	MAY W10725245
32	MAY W10219342
33	Bearing, Ring
34	WASHER, TRI RING
35	MAY W10359270
