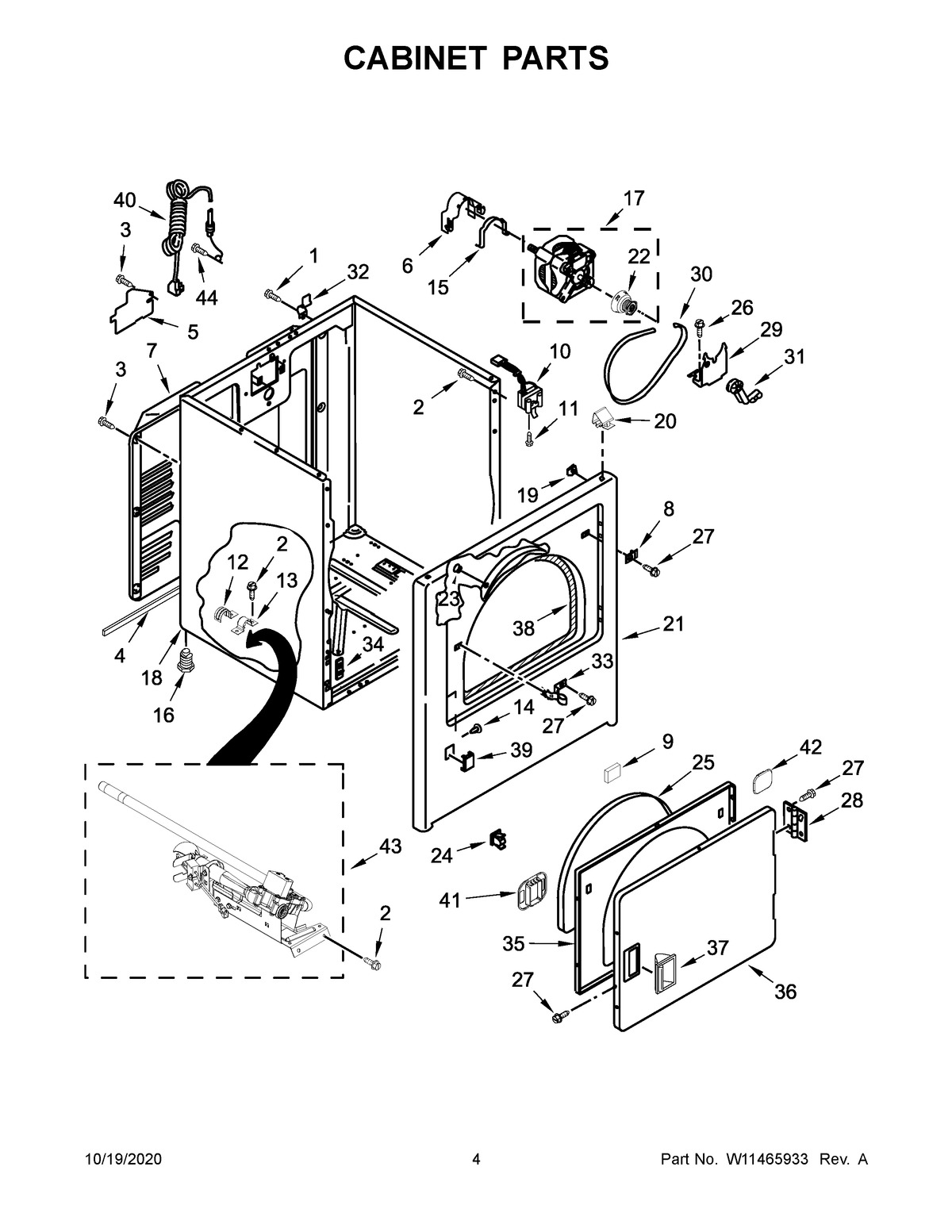

NGD4655EW3 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	SCREW
3	Screw
4	SEAL, SPILL GUARD
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY W10571724
8	PLUG, STRIKE
9	MAY 3389682
10	MAY W10237959
11	SCREW
12	MAY W10727507
13	MAY 341029
14	MAY W11308618
15	CLAMP, MOTOR MOUNT
16	MAY 3392100
17	MOTOR ASSEMBLY
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 8066092
21	MAY W10664698
22	Pulley, Motor
23	Clip, Felt Pad
24	ASSEMBLY, DOOR CATCH
25	SEAL, DOOR
26	BOLT
27	MAY 342055
28	ASSEMBLY, HINGE AND PIN
29	MAY 348780
30	MAY W10131364
31	IDLER ASSEMBLY
32	Hinge, Top
33	STRIKE, DOOR
34	CLIP, FRONT PANEL
35	DOOR, INNER
36	DOOR, FRONT (WHITE)
37	HANDLE, DOOR (WHITE)
38	ASSEMBLY, SEAL AND BEARING
39	PLUG, FRONT PANEL (WHITE)
40	CORD, POWER
41	COVER, DOOR CATCH
42	BEZEL, DOOR CATCH
43	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
44	SCREW
