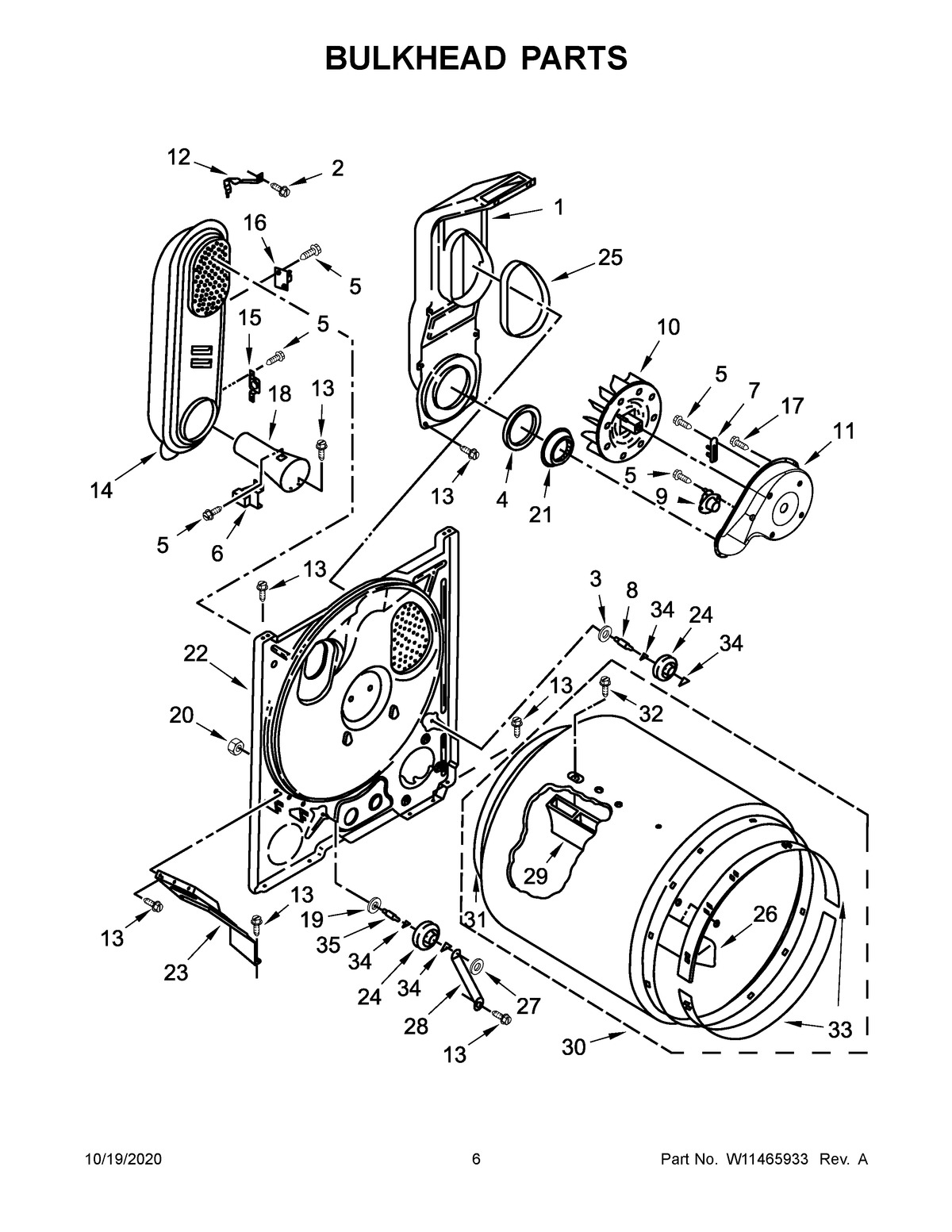

NGD4655EW3 04 – BULKHEAD PARTS

Products

Position	Product
1	ASSEMBLY, LINT CHUTE
2	Screw
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 338906
7	Fuse, Thermal (91 C)
8	MAY W10359269
9	MAY 3387134
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	BOX, HEATER (96C)
15	THERMOSTAT, HIGH LIMIT SPST (180F)
16	KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
17	SCREW
18	FUNNEL, BURNER LIGHT
19	WASHER
20	MAY W10298789
21	MAY W10389567
22	MAY W10714475
23	BRACKET, BULKHEAD CHUTE
24	MAY W10756057
25	MAY 339956
26	BAFFLE, DRUM (SHORT)
27	NUT, PUSH ON
28	BRACKET, SUPPORT
29	BAFFLE, DRUM (LONG)
30	ASSEMBLY, DRUM (COMPLETE)
31	SEAL, REAR DRUM
32	MAY W10219342
33	Bearing, Ring
34	WASHER, TRI RING
35	MAY W10359270
