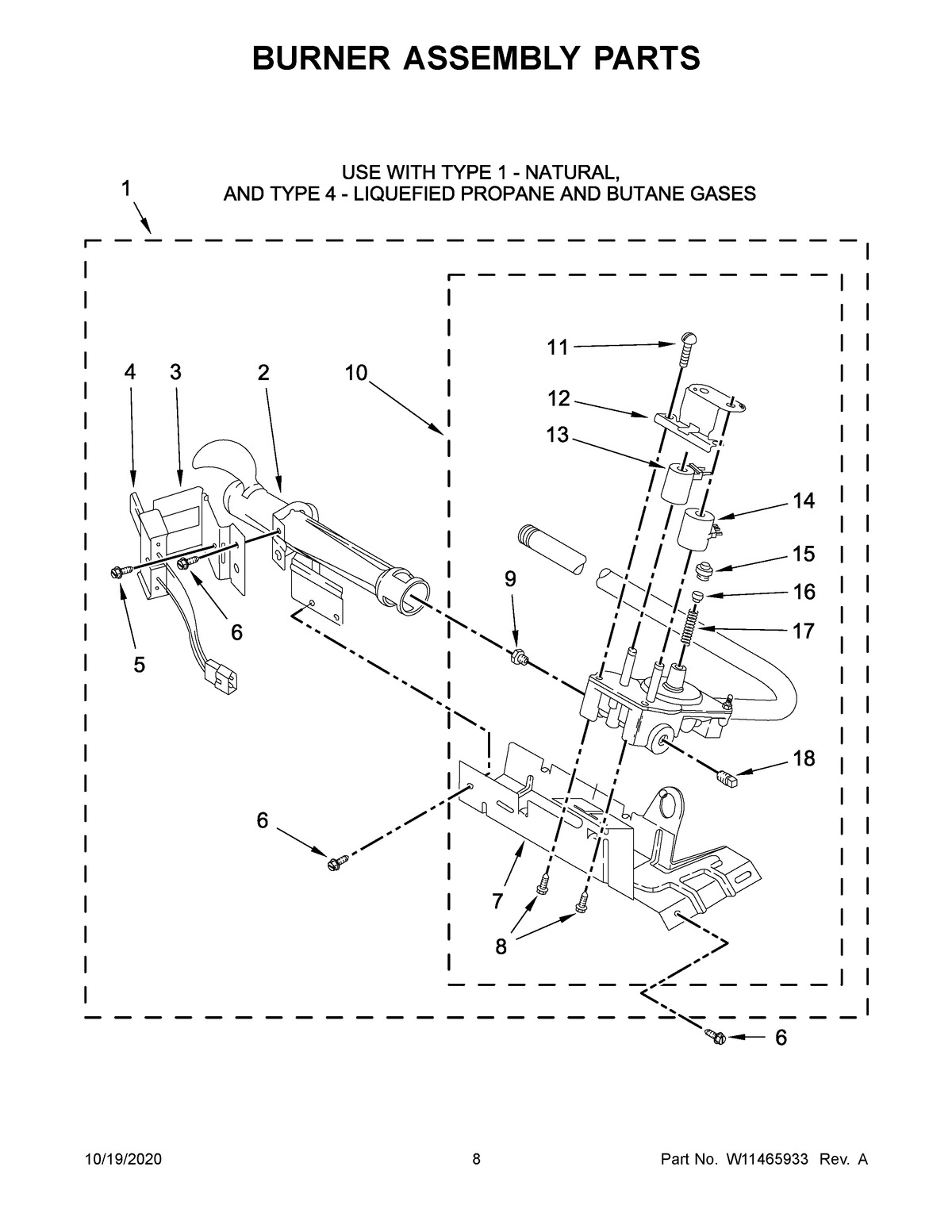

NGD4655EW3 05 – BURNER ASSEMBLY PARTS

Products

Position	Product
NI	MAY 49572A
NI	LINER (NOT A SERVICEABLE PART)
1	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY W10366705
6	SCREW
7	MAY 693986
8	SCREW
9	TYPE 1 (NATURAL)
9B	MAY 234868
9A	Orifice, Burner (Type 4 (Propane))
10	VALVE, GAS (60 HZ)
11	SCREW, COIL
12	MAY 694538
13	MAY 694540
14	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15	MAY 694424
16	MAY 694423
17	MAY 694422
18	MAY 239822
