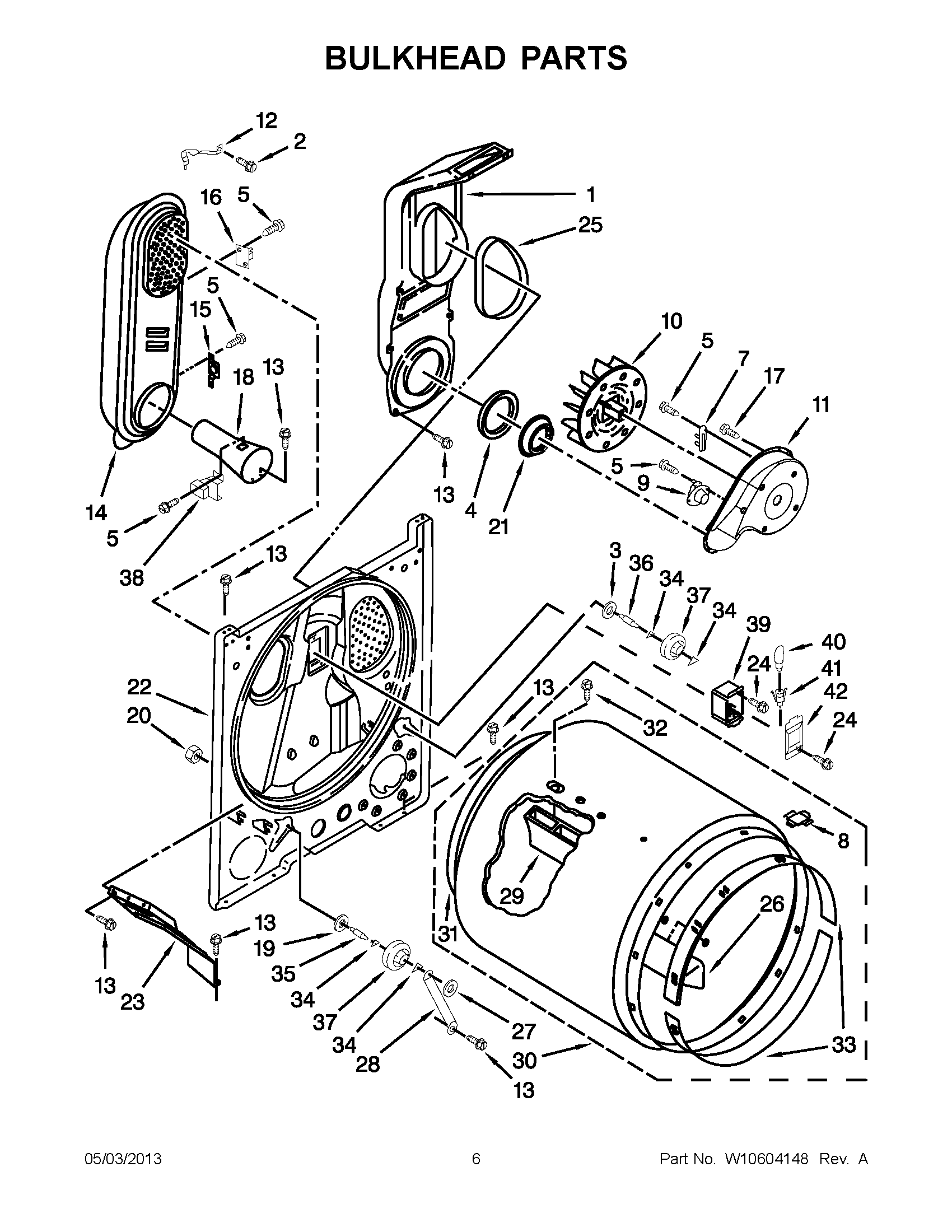

NGD4700YQ1 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
2	Screw
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
7	Fuse, Thermal (91 C)
8	Plug, Drum Hole
9	MAY 3387134
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	BOX, HEATER (96C)
15	MAY W10423382
16	KIT, THERMAL CUT – OFF (INCLUDES ITEM 15)
18	FUNNEL, BURNER LIGHT
19	WASHER
20	MAY W10298789
21	MAY W10389567
22	MAY 3403413
23	BRACKET, BULKHEAD CHUTE
24	SCREW
25	MAY 339956
26	BAFFLE, DRUM (SHORT)
27	NUT, PUSH ON
28	MAY 3976434
29	BAFFLE, DRUM (LONG)
30	DRUM ASSEMBLY COMPLETE
31	MAY W10389561
32	MAY W10219342
33	Bearing, Ring
34	WASHER, TRI RING
35	MAY W10359270
36	MAY W10359269
37	MAY 3397590
38	MAY 338906
39	MAY 3977373
40	MAY 3406124
41	MAY W10214261
42	MAY 3402841
