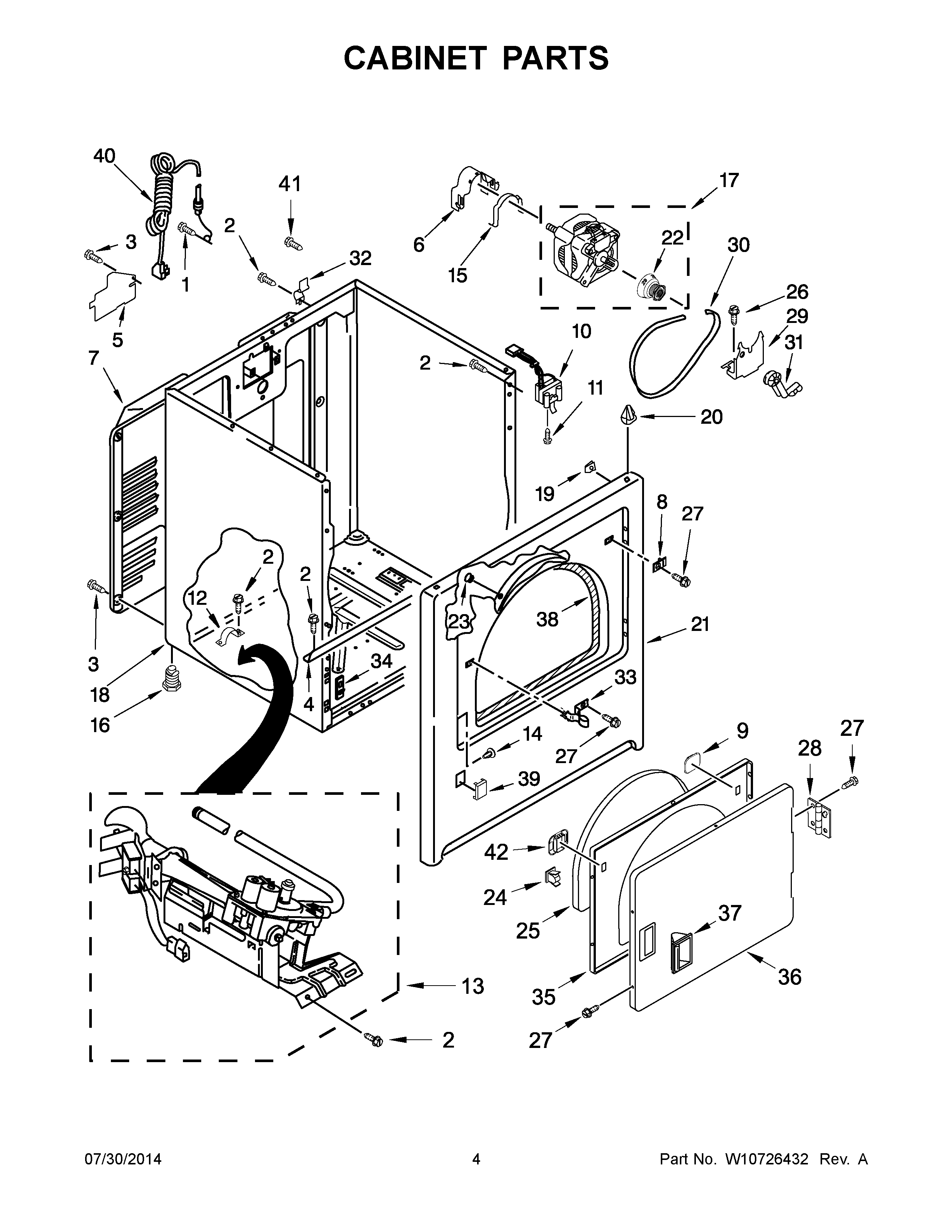

NGD4700YQ3 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	SCREW
3	Screw
4	MAY W10236073
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY W10571724
8	PLUG, STRIKE
9	COVER, DOOR CATCH
10	SWITCH, DOOR
11	SCREW
12	MAY 341029
13	MAY W10336852
14	PLUG, HINGE HOLES
15	CLAMP, MOTOR MOUNT
16	MAY 3392100
17	MOTOR ASSEMBLY
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 8066092
21	PANEL FRONT (WHITE)
22	Pulley, Motor
23	Clip, Felt Pad
24	MAY W10610880
25	MAY W10389572
26	BOLT
27	MAY 342055
28	ASSEMBLY, HINGE AND PIN
29	MAY 348780
30	MAY W10131364
31	IDLER ASSEMBLY
32	Hinge, Top
33	Strike, Door
34	MAY 3394083
35	DOOR, INNER
36	DOOR FRONT
37	MAY W10549552
38	MAY W10663510
39	PLUG, FRONT PANEL (WHITE)
40	MAY 344020
41	MAY 8533974
42	BEZEL, DOOR CATCH
