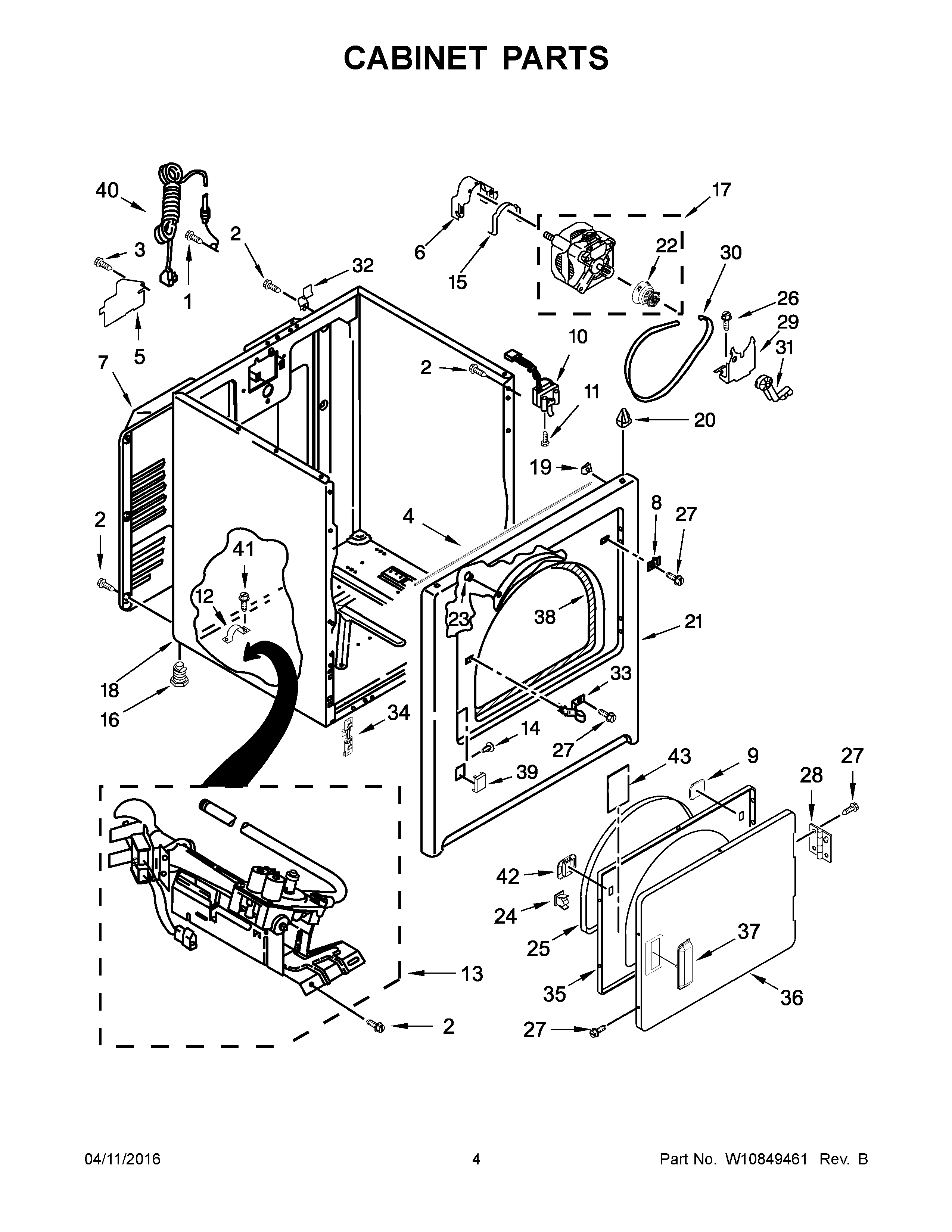

NGD4705EW1 03 – CABINET PARTS

NGD4705EW1 03 – CABINET PARTS

Written by

in

NGD4705EW1 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	SCREW
3	Screw
4	SEAL, SPILL GUARD
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY W10571724
8	PLUG, STRIKE
9	COVER, DOOR CATCH
10	SWITCH, DOOR
11	SCREW
12	MAY W10727507
13	MAY W10336852
14	PLUG, HINGE HOLES
15	CLAMP, MOTOR MOUNT
16	MAY 3392100
17	MOTOR ASSEMBLY
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 8066092
21	MAY W10664698
22	Pulley, Motor
23	Clip, Felt Pad
24	MAY W10610880
25	SEAL, DOOR
26	BOLT
27	MAY 342055
28	ASSEMBLY, HINGE AND PIN
29	MAY 348780
30	MAY W10131364
31	IDLER ASSEMBLY
32	Hinge, Top
33	Strike, Door
34	CLIP, FRONT PANEL
35	DOOR, INNER
36	DOOR, FRONT (WHITE)
37	HANDLE, DOOR (WHITE)
38	ASSEMBLY, SEAL AND BEARING
39	PLUG, FRONT PANEL (WHITE)
40	MAY 344020
41	MAY 8533974
42	BEZEL, DOOR CATCH
43	MAY W10595510
