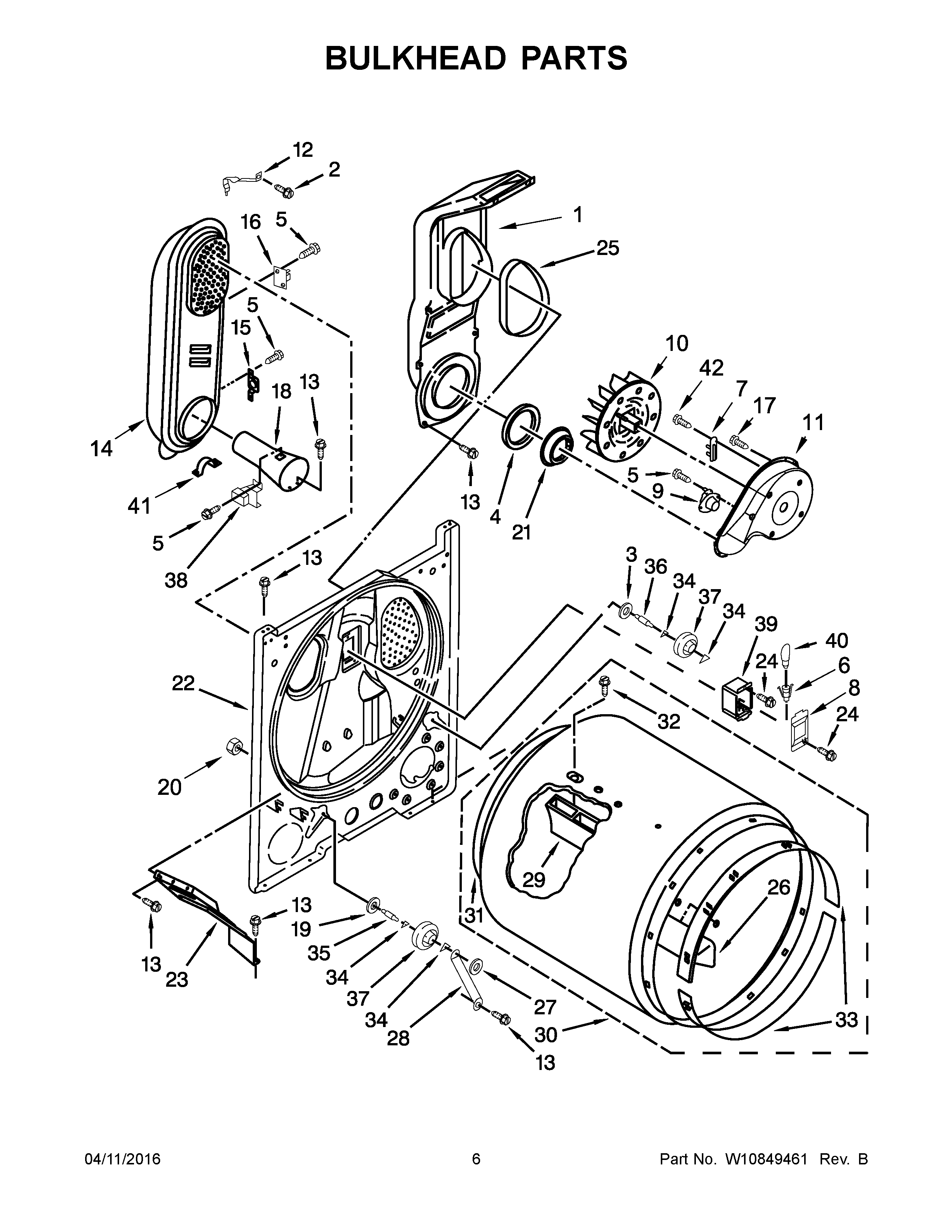

NGD4705EW1 04 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
2	Screw
3	WASHER
4	MAY 347139
6	MAY W10214261
7	Fuse, Thermal (91 C)
8	MAY 3402841
9	MAY 3387134
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	BOX, HEATER (96C)
15	MAY W10423382
16	Thermal Cutoff (Includes Illus. 48)
18	FUNNEL, BURNER LIGHT
19	WASHER
20	MAY W10298789
21	MAY W10389567
22	MAY W10714468
23	BRACKET, BULKHEAD CHUTE
24	SCREW
25	MAY 339956
26	BAFFLE, DRUM (SHORT)
27	NUT, PUSH ON
28	MAY 3976434
29	BAFFLE, DRUM (LONG)
30	ASSEMBLY, DRUM (COMPLETE)
31	MAY W10725245
32	MAY W10219342
33	Bearing, Ring
34	WASHER, TRI RING
35	MAY W10359270
36	MAY W10359269
37	MAY 3397590
38	MAY 338906
39	MAY 3977373
40	MAY 3406124
41	MAY 341029
42	SCREW,8-18 X 3/8
