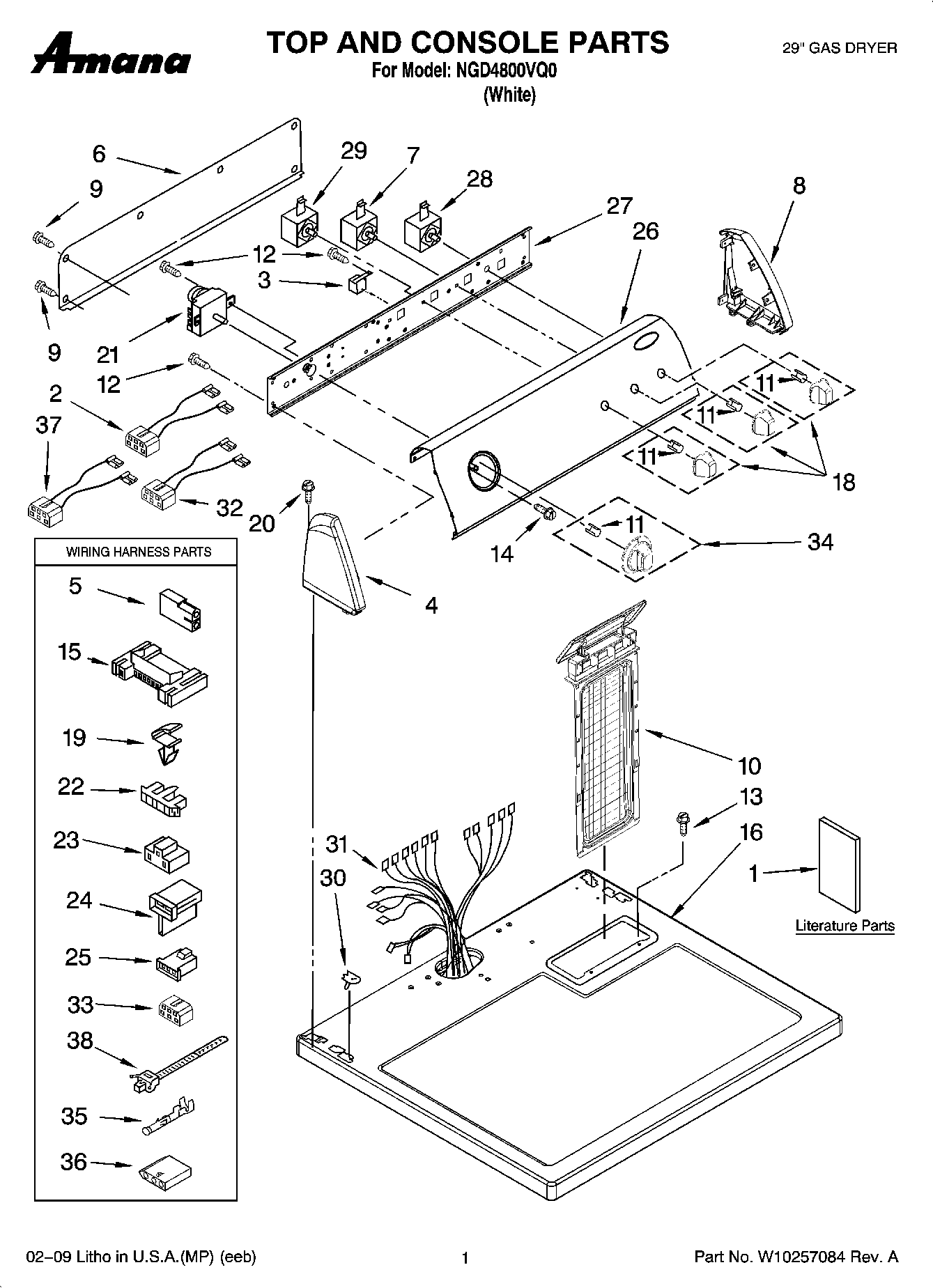

NGD4800VQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10089178
1	MAY W10150620
1	MAY 8576811
1	Instructions, Installation (English)
2	Wire, Jumper (Black)
3	MAY 694419
4	MAY 8271365
5	Plug, 2-Way Terminal
6	MAY 8274261
7	Switch, Temperature
8	MAY 8271359
9	Screw
10	Screen, Lint (White)
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	MAY 8533951
15	CONNECTOR (MOTOR)
16	MAY 8557930
18	MAY W10196503
19	CLIP, HARNESS
20	Screw, Console
21	MAY 8299766
22	Connector-Timer
23	Connector (PTS) Relay
24	CONNECTOR, 2-POSITION (GAS VALVE)
25	MAY 3403498
26	MAY W10086735
27	MAY 8271418
28	MAY 3398095
29	MAY 3405156
30	Nut, Push-In
31	MAY 8299879
32	Jumper, Three Temperature
33	Connector
34	Timer Knob Assembly
35	Terminal
36	MAY 3936144
37	Jumper, Gaurd On/Off
38	Tie, Cable
