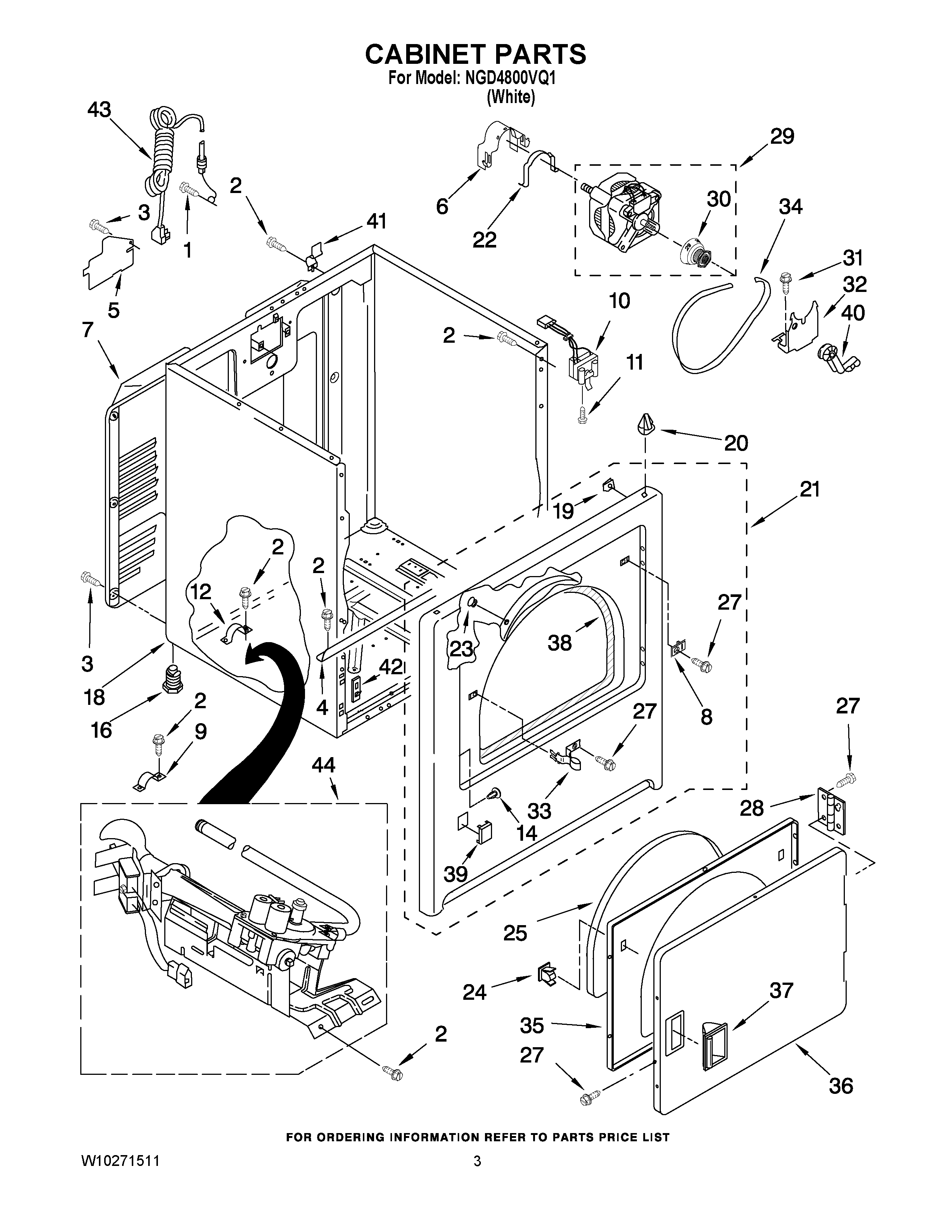

NGD4800VQ1 02 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	Screw, 8-18 x 5/8 (External Ground)
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY 3396805
8	PLUG-STRIKE
9	MAY 3980175
10	Switch, Door
11	SCREW
12	MAY 341029
14	PLUG, HINGE HOLES
16	MAY 3392100
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	PANEL FRONT (WHITE)
22	CLAMP, MOTOR MOUNT
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3405246
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
29	Motor Assembly
30	Pulley, Motor
31	BOLT
32	MAY 348780
33	Strike, Door
34	MAY 8066065
35	Door, Rear
36	DOOR FRONT
37	Handle, Door (White)
38	MAY 3406129
39	MAY 3394975
40	IDLER ASSEMBLY
41	Hinge, Top
42	MAY 3394083
43	MAY 344020
44	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
