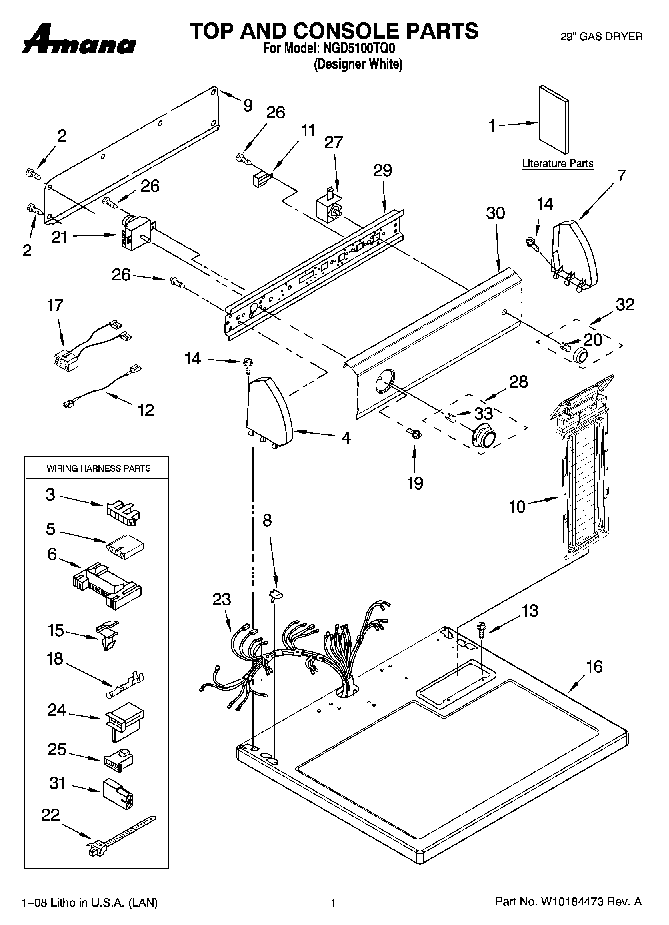

NGD5100TQ0 01 – TOP AND CONSOLE PARTSadmin2025-04-26T09:03:40+00:00NGD5100TQ0 01 – TOP AND CONSOLE PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10150657 |
| 1 | Instructions, Installation (Spanish) |
| 1 | Instructions, Installation (English) |
| 1 | MAY W10150621 |
| 1 | MAY W10150656 |
| 1 | MAY 8576793 |
| 1 | MAY W10150620 |
| 2 | Screw |
| 3 | Connector-Timer |
| 4 | MAY 8271359 |
| 5 | MAY 3936144 |
| 6 | CONNECTOR (MOTOR) |
| 7 | MAY 8271365 |
| 8 | Nut, Push-In |
| 9 | MAY 8274261 |
| 10 | MAY 8558467 |
| 11 | MAY 694419 |
| 12 | Jumper, Wire |
| 13 | SCREW |
| 14 | Screw, Console |
| 15 | CLIP, HARNESS |
| 16 | MAY 8557930 |
| 17 | Wire, Jumper |
| 18 | Terminal |
| 19 | MAY 8533951 |
| 21 | MAY 8299764 |
| 22 | Tie, Cable |
| 23 | MAY 8299876 |
| 24 | CONNECTOR, 2-POSITION (GAS VALVE) |
| 25 | MAY 3403498 |
| 26 | MAY 8533971 |
| 27 | MAY 3977456 |
| 28 | Timer Knob, Assembly (White) |
| 29 | MAY 8271418 |
| 30 | MAY W10182636 |
| 31 | Plug, 2-Way Terminal |
| 32 | Knob, Push-To-Start (White) |
| 33 | CLIP, SPRING |
