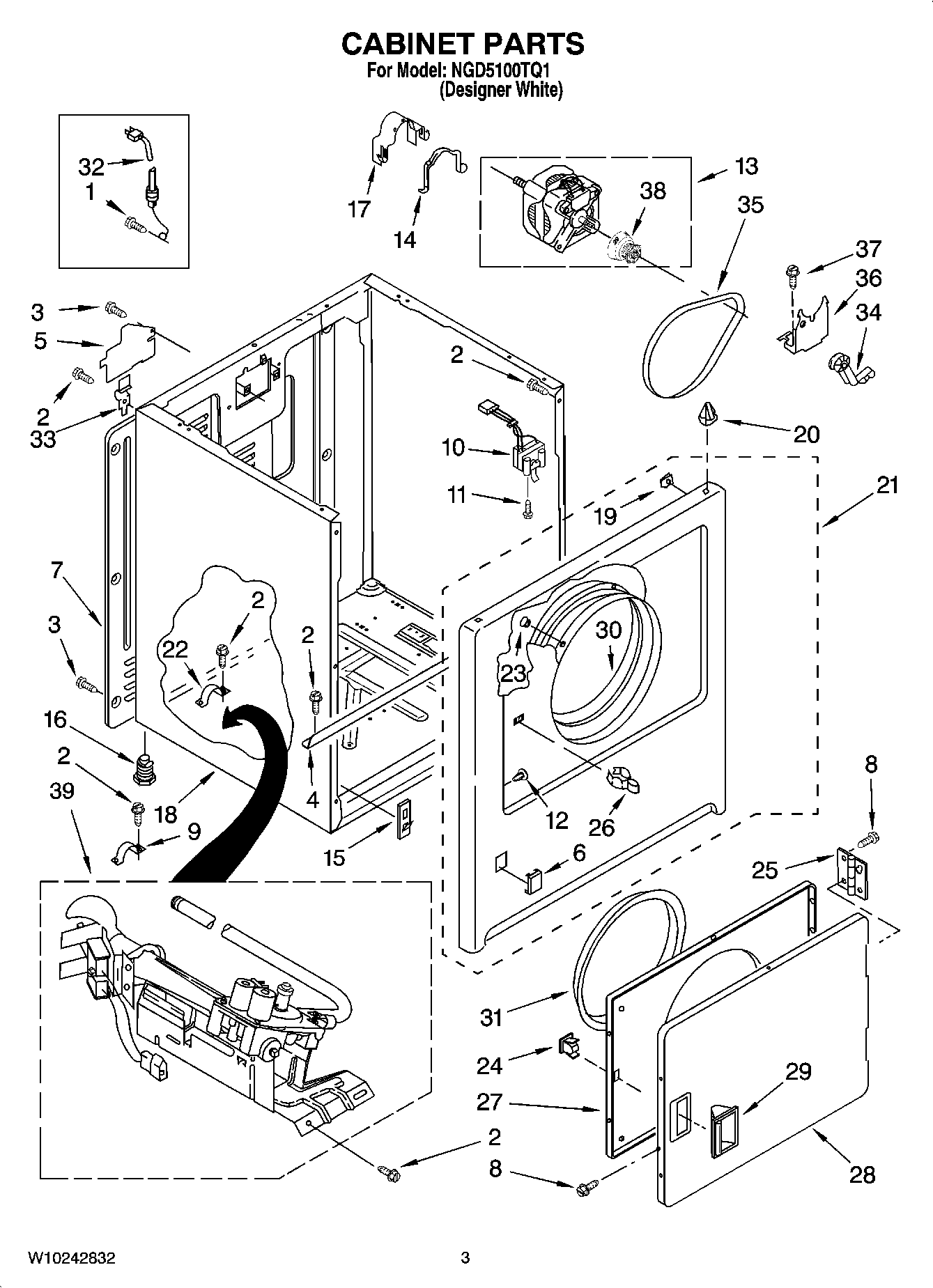

NGD5100TQ1 02 – CABINET PARTS

Products

Position	Product
1	Screw, 8-18 x 5/8 (External Ground)
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	MAY 3394975
7	MAY 3396807
8	MAY 342055
9	MAY 3980175
10	Door Switch Assembly
11	SCREW
12	PLUG, HINGE HOLES
13	Motor Assembly
14	CLAMP, MOTOR MOUNT
15	MAY 3394083
16	MAY 3392100
17	Clamp, Motor (With Shield)
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	MAY 3403574
22	MAY 341029
23	Clip, Felt Pad
24	Catch, Door
25	HINGE AND PIN ASSEMBLY
26	MAY 696144
27	MAY 3403371
28	MAY 3403361
29	Handle, Door (White)
30	MAY 8066124
31	MAY 3405245
32	MAY 344020
33	Hinge, Top
34	IDLER ASSEMBLY
35	MAY W10131364
36	MAY 348780
37	BOLT
38	Pulley, Motor
39	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
