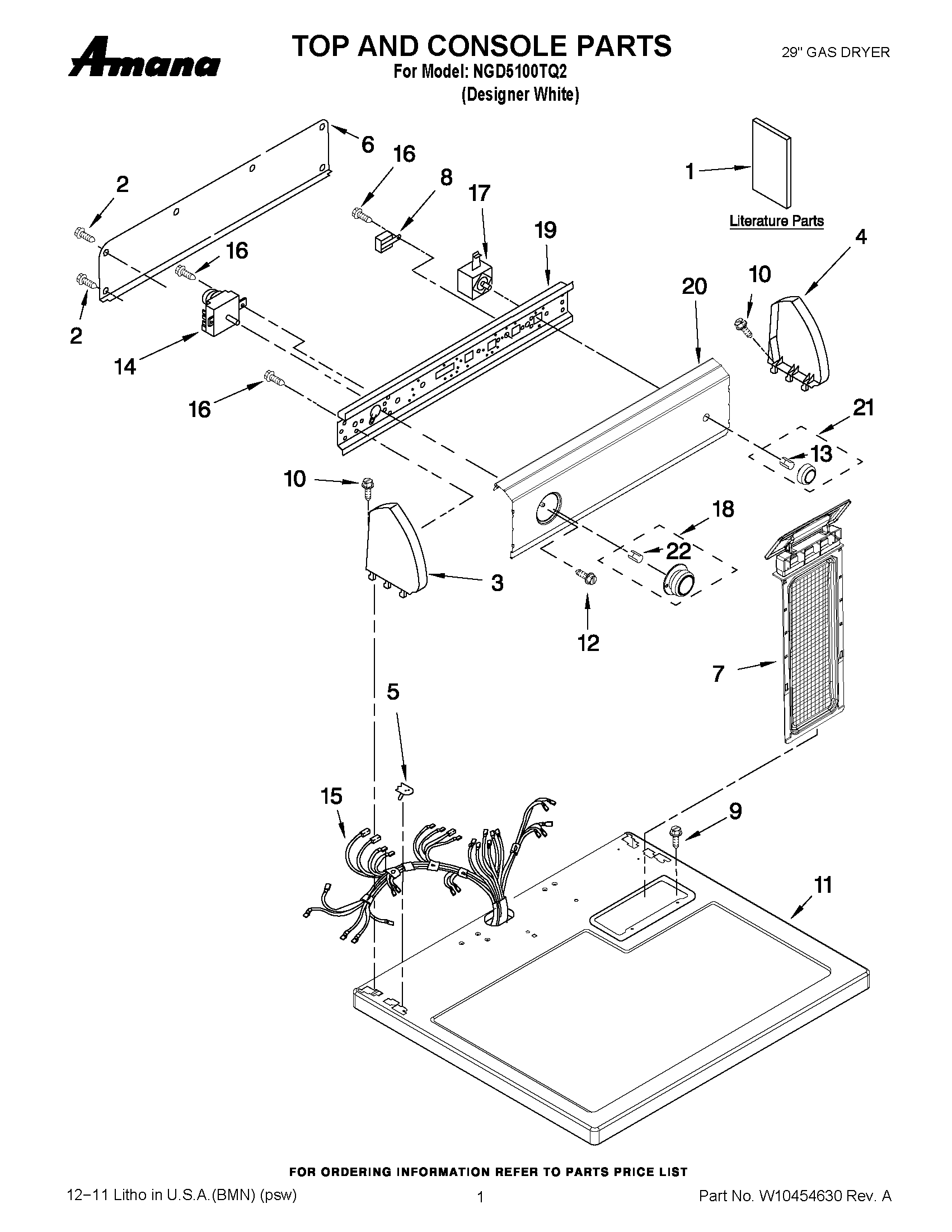

NGD5100TQ2 01 – TOP AND CONSOLE PARTS

NGD5100TQ2 01 – TOP AND CONSOLE PARTS

Written by

in

NGD5100TQ2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTRUCTION INSTALLATION
1	MAY W10185979
1	MAY W10287572
2	Screw
3	MAY 8271359
4	MAY 8271365
5	Nut, Push-In
6	MAY 8274261
7	MAY 8558467
8	MAY 694419
9	SCREW
10	Screw, Console
11	MAY 8557930
12	MAY 8533951
14	TIMER
15	MAY W10111051
16	SCREW,8-18 X 3/8
17	MAY 3977456
18	Timer Knob, Assembly (White)
19	MAY 8271418
20	MAY W10182636
21	Knob, Push-To-Start (White)
22	CLIP, SPRING
