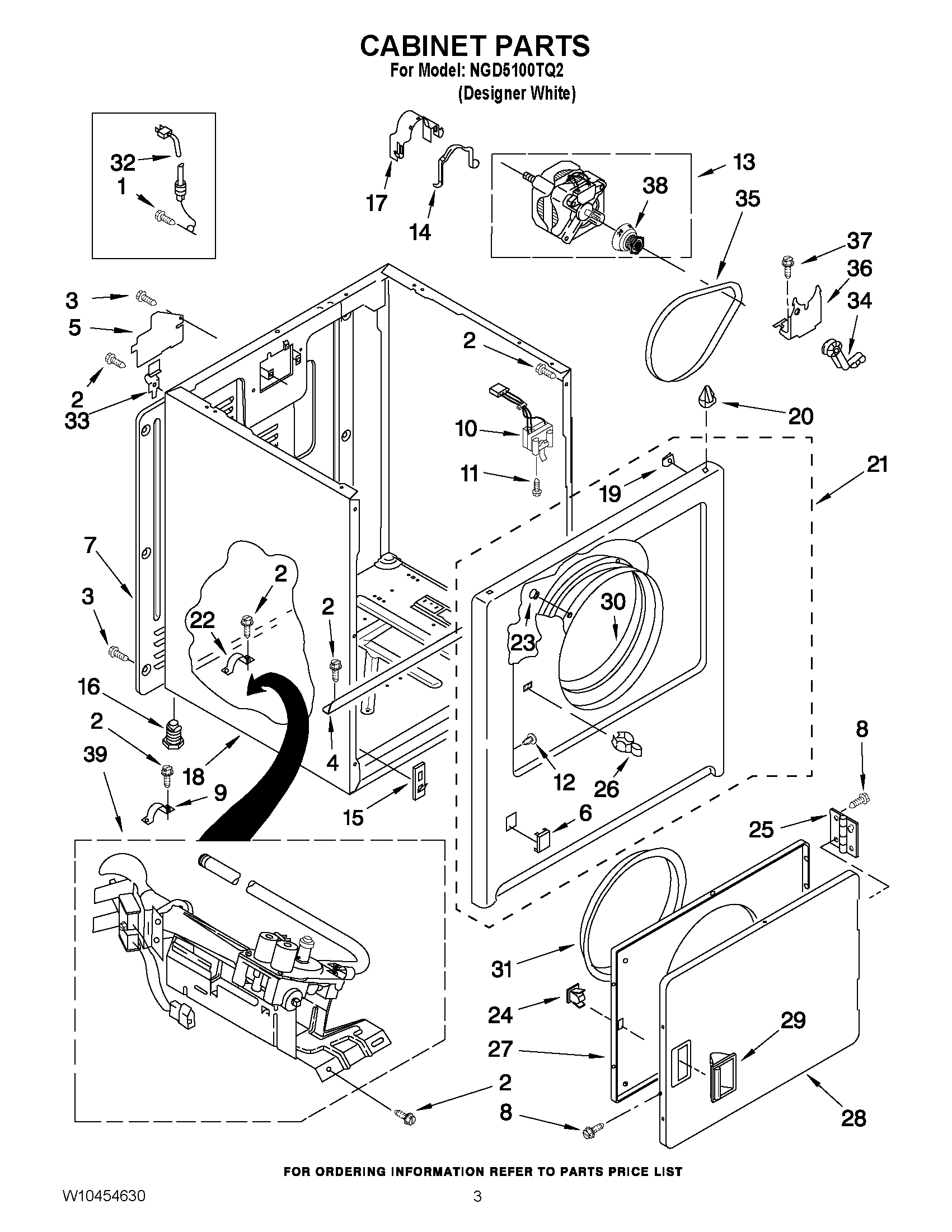

NGD5100TQ2 02 – CABINET PARTS

NGD5100TQ2 02 – CABINET PARTS

Written by

in

NGD5100TQ2 02 – CABINET PARTS

Products

PositionProduct
1SCREW
2SCREW
3Screw
4MAY W10236073
5MAY 3396795
6PLUG, FRONT PANEL (WHITE)
7MAY 3396807
8MAY 342055
9MAY 3980175
10Door Switch Assembly
11SCREW
12PLUG, HINGE HOLES
13Motor Assembly
14CLAMP, MOTOR MOUNT
15MAY 3394083
16MAY 3392100
17Clamp, Motor (With Shield)
18CABINET (WHITE)
19Clip, Ground
20LOCK, FRONT TOP
21MAY 3403574
22MAY 341029
23Clip, Felt Pad
24Catch, Door
25ASSEMBLY, HINGE AND PIN
26MAY 696144
27MAY 3403371
28MAY 3403361
29Handle, Door (White)
30MAY 8066124
31MAY 3405245
32MAY W10440460
33Hinge, Top
34IDLER PULLEY & BEARING ASSY.
35MAY W10131364
36MAY 348780
37BOLT
38Pulley, Motor
39MAY W10336852
