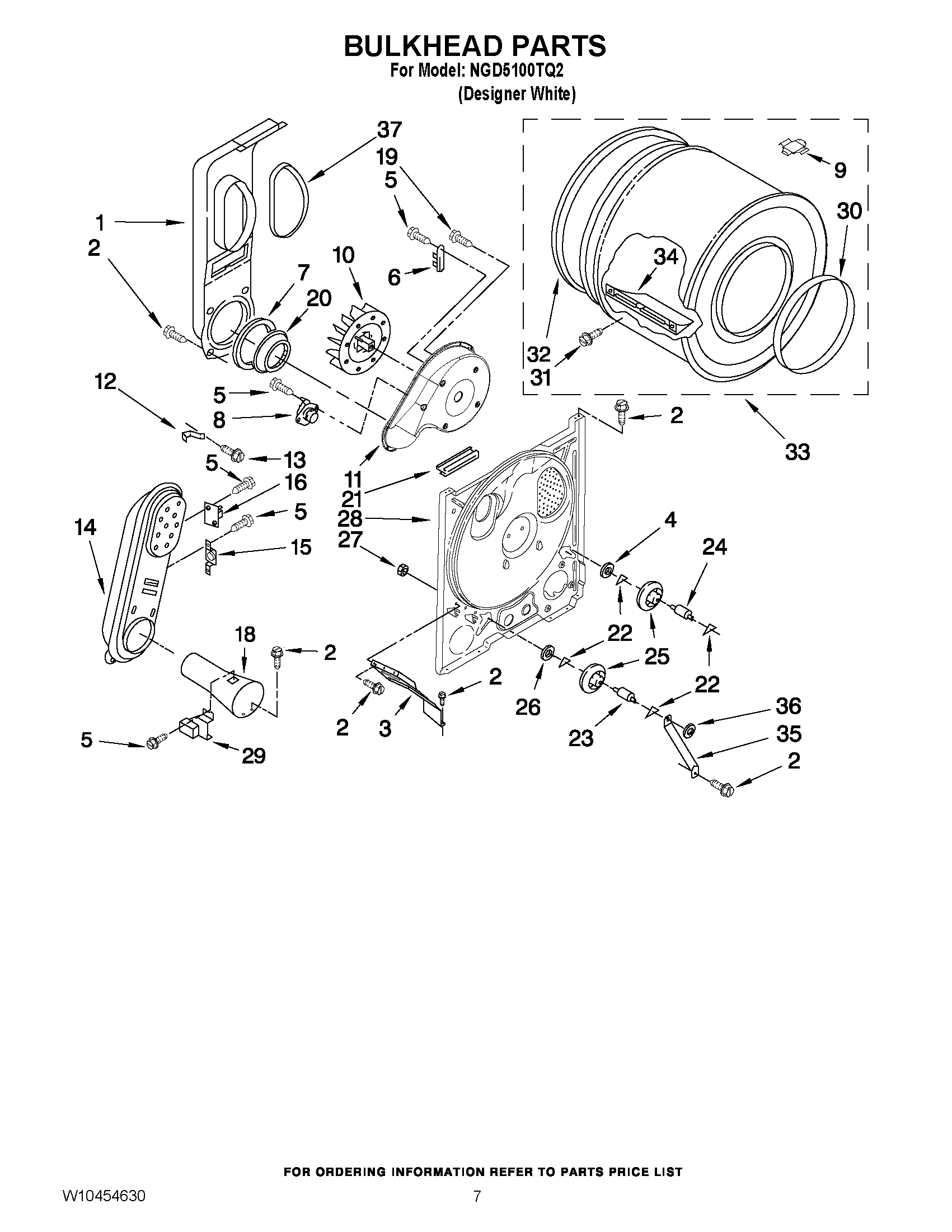

NGD5100TQ2 04 – BULKHEAD PARTS

NGD5100TQ2 04 – BULKHEAD PARTS

Written by

in

NGD5100TQ2 04 – BULKHEAD PARTS

Products

Position	Product
1	MAY 694283
2	SCREW
3	BRACKET, BULKHEAD CHUTE
4	WASHER
5	SCREW,8-18 X 3/8
6	Fuse, Thermal (91 C)
7	MAY 347139
8	MAY 3387134
9	Plug, Drum Hole
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	Screw
14	BOX, HEATER (96C)
15	MAY W10423382
16	MAY 280010
18	MAY 8066048
19	SCREW
20	MAY 696302
21	MAY 3392247
22	WASHER, TRI RING
23	MAY W10359270
24	MAY W10359269
25	MAY 3397590
26	WASHER
27	MAY W10298789
28	MAY 8529955
29	MAY 338906
30	MAY 3394509
31	MAY W10219342
32	MAY 8066085
33	MAY 3396777
34	MAY 342847
35	Bracket, Support
36	NUT, PUSH ON
37	MAY 339956
