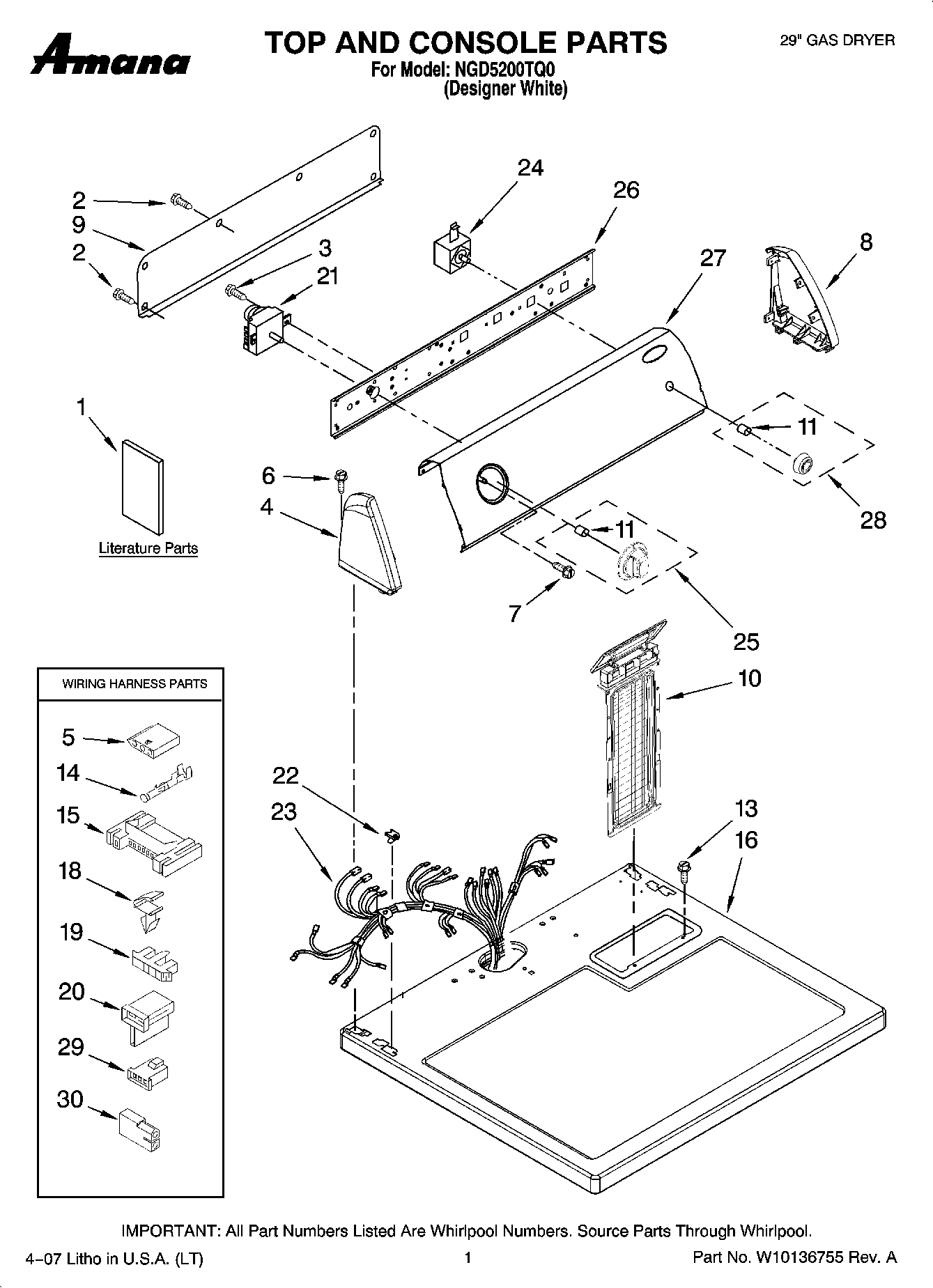

NGD5200TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY 8528188
1	MAY W10088771
1	MAY W10089173
1	Installation Instructions
2	Screw
3	MAY 8533971
4	MAY 8271365
5	MAY 3936144
6	Screw, Console
7	MAY 8533951
8	MAY 8271359
9	MAY 8274261
10	Screen, Lint (White)
11	CLIP, SPRING
13	SCREW
14	Terminal
15	CONNECTOR (MOTOR)
16	MAY 8557930
18	CLIP, HARNESS
19	Connector-Timer
20	CONNECTOR, 2-POSITION (GAS VALVE)
21	MAY 3976575
22	Nut, Push-In
23	MAY 8299876
24	MAY 3977456
25	Timer Knob, Assembly (White)
26	MAY 8271418
27	MAY W10086674
28	Knob, Push-To-Start (White)
29	MAY 3403498
30	Plug, 2-Way Terminal
