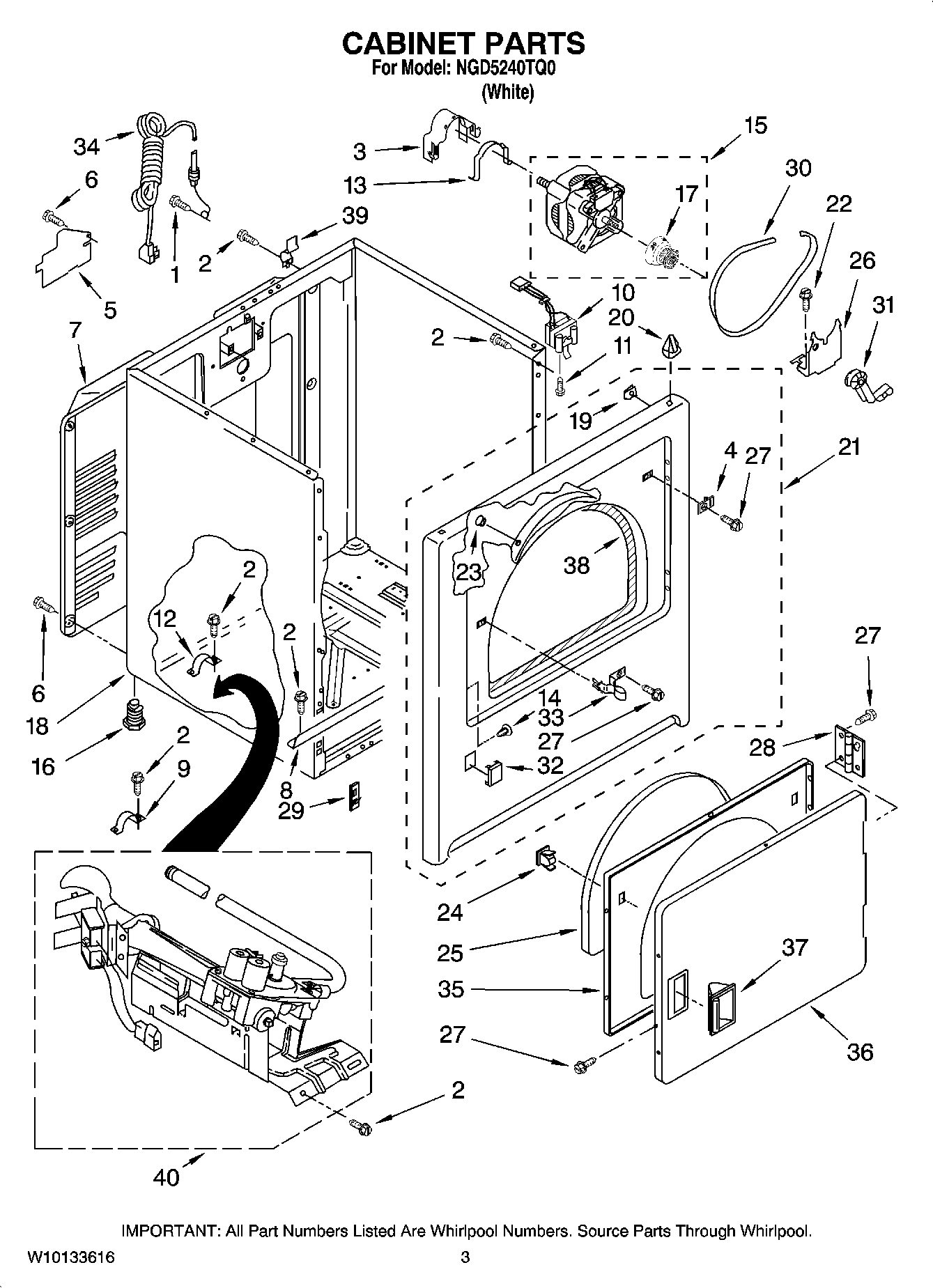

NGD5240TQ0 02 – CABINET PARTS

Products

Position	Product
1	Screw, 8-18 x 5/8 (External Ground)
2	SCREW
3	Clamp, Motor (With Shield)
4	PLUG-STRIKE
5	MAY 3396795
6	Screw
7	MAY 3396805
8	MAY 8541400
9	MAY 3980175
10	MAY 3406109
11	SCREW
12	MAY 341029
13	MAY 660658
14	PLUG, HINGE HOLES
15	MAY 2304772
16	MAY 279810
16	MAY 3392100
17	Pulley, Motor
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	MAY 3403447
22	BOLT
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3405246
26	MAY 348780
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
29	MAY 3394083
30	MAY 8066065
31	IDLER ASSEMBLY
32	MAY 3394975
33	Strike, Door
34	MAY 344020
35	Door, Rear
36	DOOR FRONT
37	Handle, Door (White)
38	MAY 3406129
39	Hinge, Top
40	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
