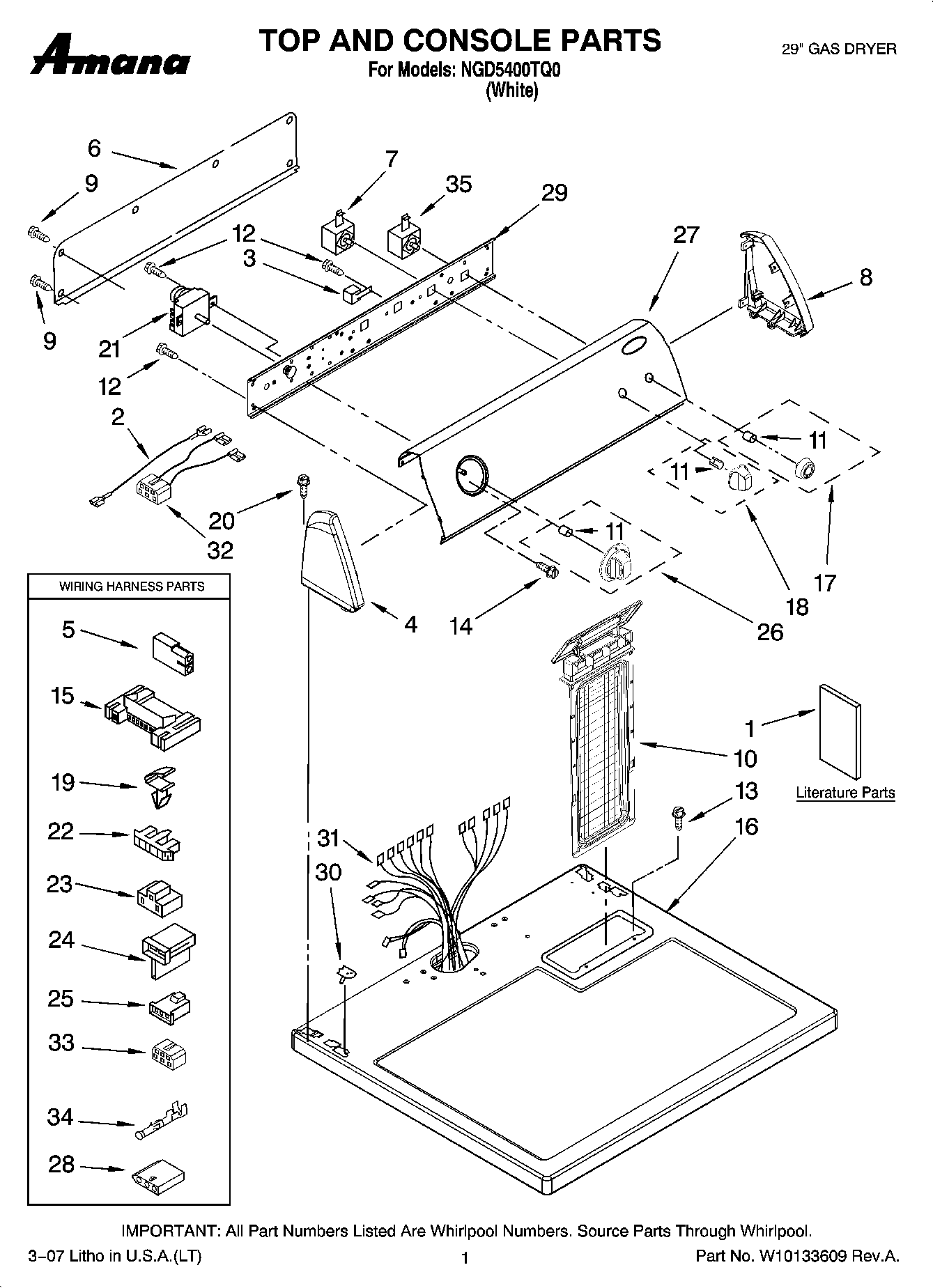

NGD5400TQ0 01 – TOP AND CONSOLE PARTSadmin2025-04-26T09:04:38+00:00NGD5400TQ0 01 – TOP AND CONSOLE PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10088771 |
| 1 | MAY 8576817 |
| 1 | MAY W10089173 |
| 1 | Installation Instructions |
| 2 | Wire, Jumper (Black) |
| 3 | MAY 694419 |
| 4 | MAY 8271365 |
| 5 | Plug, 2-Way Terminal |
| 6 | MAY 8274261 |
| 7 | Switch, Temperature |
| 8 | MAY 8271359 |
| 9 | Screw |
| 10 | Screen, Lint (White) |
| 11 | CLIP, SPRING |
| 12 | MAY 8533971 |
| 13 | SCREW |
| 14 | MAY 8533951 |
| 15 | CONNECTOR (MOTOR) |
| 16 | MAY 8557930 |
| 17 | MAY W10110050 |
| 18 | Knob, Control (2) (White) |
| 19 | CLIP, HARNESS |
| 20 | Screw, Console |
| 21 | Timer Assembly (60 Hz.) |
| 22 | Connector-Timer |
| 23 | Connector (PTS) Relay |
| 24 | CONNECTOR, 2-POSITION (GAS VALVE) |
| 25 | MAY 3403498 |
| 26 | Timer Knob, Assembly (White) |
| 27 | Panel, Control |
| 28 | MAY 3936144 |
| 29 | MAY 8271418 |
| 30 | Nut, Push-In |
| 31 | MAY 8299879 |
| 32 | Wire, Jumper (Temperature) |
| 33 | Connector |
| 34 | Terminal |
| 35 | MAY 3398095 |
