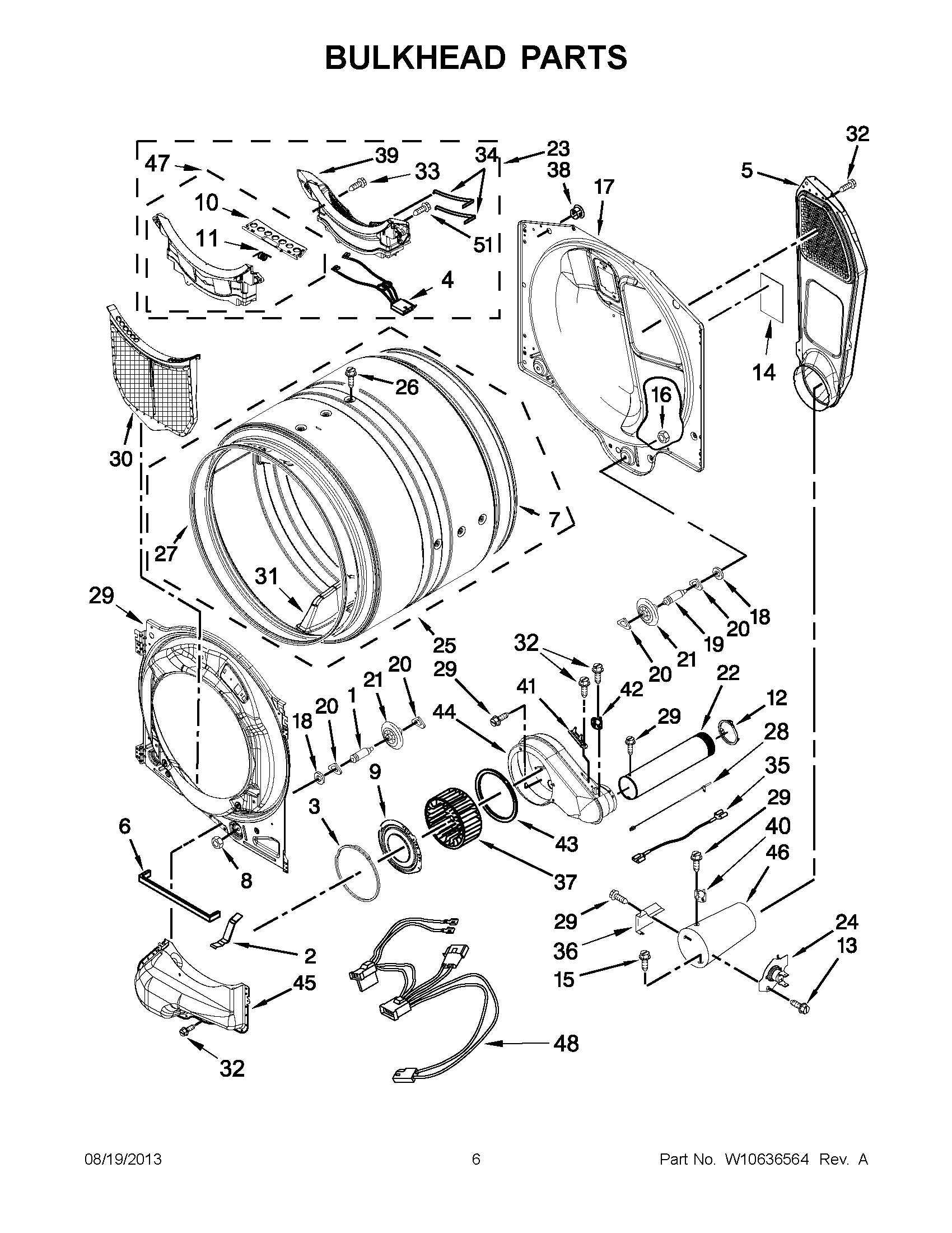

NGD5700BW0 04 – BULKHEAD PARTSadmin2025-04-26T09:04:38+00:00NGD5700BW0 04 – BULKHEAD PARTS
Products
| Position | Product |
|---|
| 1 | SHAFT, DRUM ROLLER RIGHT HAND THREAD |
| 2 | MAY W10414388 |
| 3 | MAY W10211899 |
| 4 | MAY W10298258 |
| 5 | MAY W10295533 |
| 6 | MAY W10211950 |
| 7 | MAY W10521118 |
| 8 | NUT, HEX |
| 9 | MAY W10211901 |
| 10 | MAY W10219016 |
| 11 | MAY W10219015 |
| 12 | MAY W10344699 |
| 14 | MAY W10504381 |
| 15 | Screw |
| 16 | NUT, HEX (LEFT HAND THREAD) |
| 17 | MAY 3387809 |
| 18 | WASHER |
| 19 | SHAFT, DRUM ROLLER - LEFT HAND THREAD |
| 20 | WASHER, TRI RING |
| 21 | ROLLER, SUPPORT |
| 22 | MAY W10342188 |
| 23 | MAY W10219012 |
| 24 | CUT-OFF, THERMAL |
| 25 | DRUM ASSEMBLY COMPLETE |
| 26 | MAY W10219342 |
| 27 | MAY W10521122 |
| 28 | MAY W10419068 |
| 29 | BULKHEAD, FRONT DOOR SCREEN |
| 30 | MAY W10370972 |
| 31 | MAY W10416098 |
| 32 | SCREW |
| 33 | SCREW |
| 34 | SENSOR, ELECTRODE |
| 35 | MAY W10525140 |
| 36 | MAY 338906 |
| 37 | MAY W10211915 |
| 38 | MAY 8529007 |
| 39 | MAY W10211903 |
| 40 | THERMOSTAT, HI LIMIT |
| 41 | Fuse, Thermal (91 C) |
| 42 | THERMISTOR |
| 43 | SEAL, PLATE COVER |
| 44 | MAY W10211911 |
| 45 | MAY W10211896 |
| 46 | MAY 8573824 |
| 47 | MAY W10219013 |
| 48 | MAY W10468426 |
