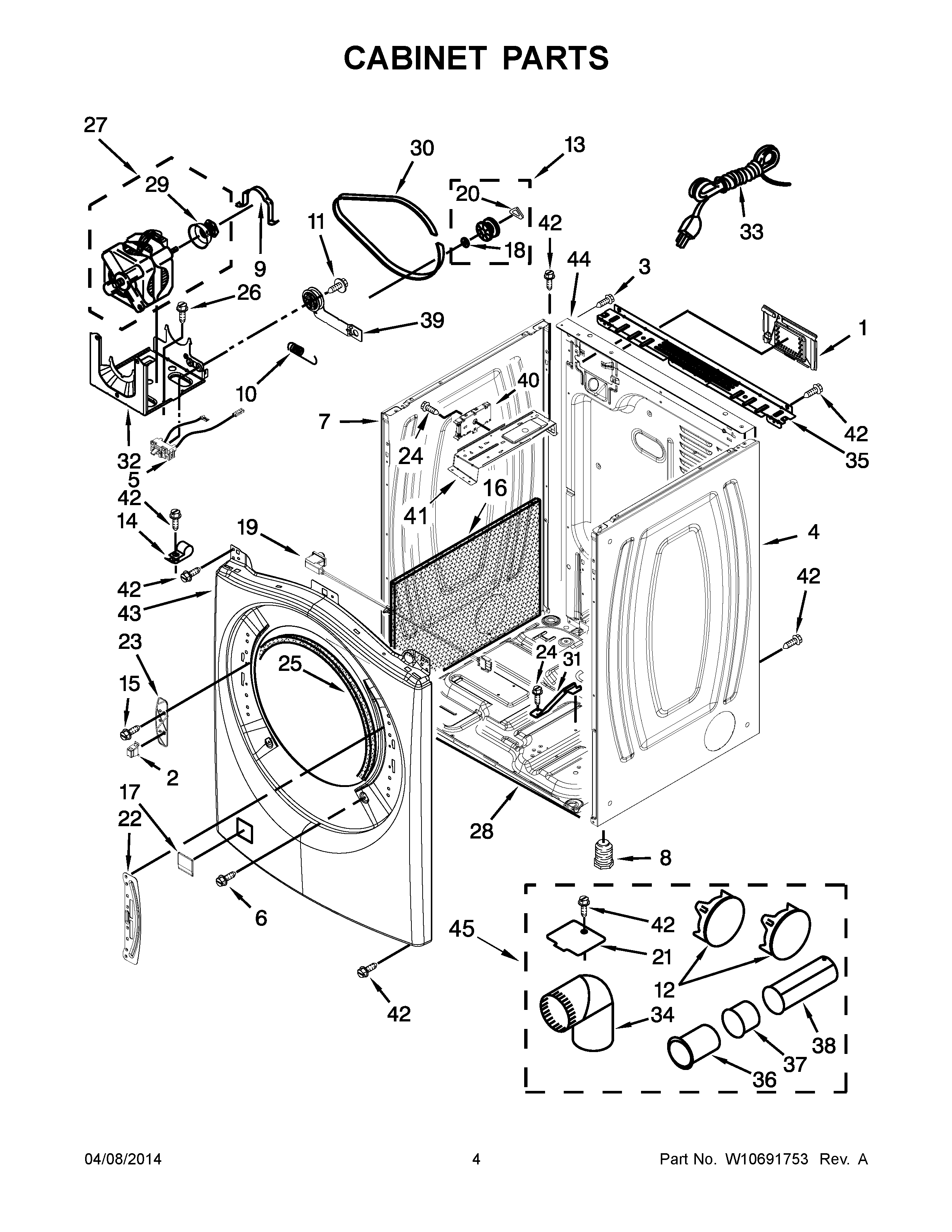

NGD5800DW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	MAY 8317339
2	MAY W10208401
3	MAY 8533974
4	PANEL, SIDE (RIGHT) (WHITE)
5	MAY W10411936
6	SCREW
7	MAY W10468495
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	PLUG, MULTIVENT (MIDNIGHT GREY)
13	MAY W10468057
14	MAY 3978776
15	MAY W10288126
16	MAY W10123956
17	PLUG, FRONT PANEL (WHITE)
18	MAY W10121334
19	ASSEMBLY, DOOR SWITCH
20	WASHER, TRI RING
21	MAY W10354249
22	MAY W10208218
23	MAY W10208250
24	Screw
25	MAY 3387242
26	SCREW
27	MAY W10620755
28	MAY 8565046
29	Pulley, Motor
30	MAY 3387610
31	MAY 8529757
32	MAY W10242878
33	MAY 3401401
34	MAY W10416072
35	MAY W10208382
36	PIPE, EXHAUST (MEDIUM)
37	PIPE, EXHAUST (SHORT)
38	PIPE, EXHAUST (LONG)
39	ASSEMBLY, IDLER
40	BOARD, CONTROL
41	MAY W10259611
42	SCREW
43	FRONT PANEL (INCLUDES DOOR HINGE BRACKET) (WHITE)
44	MAY W10487431
45	KIT, 4-WAY VENT
