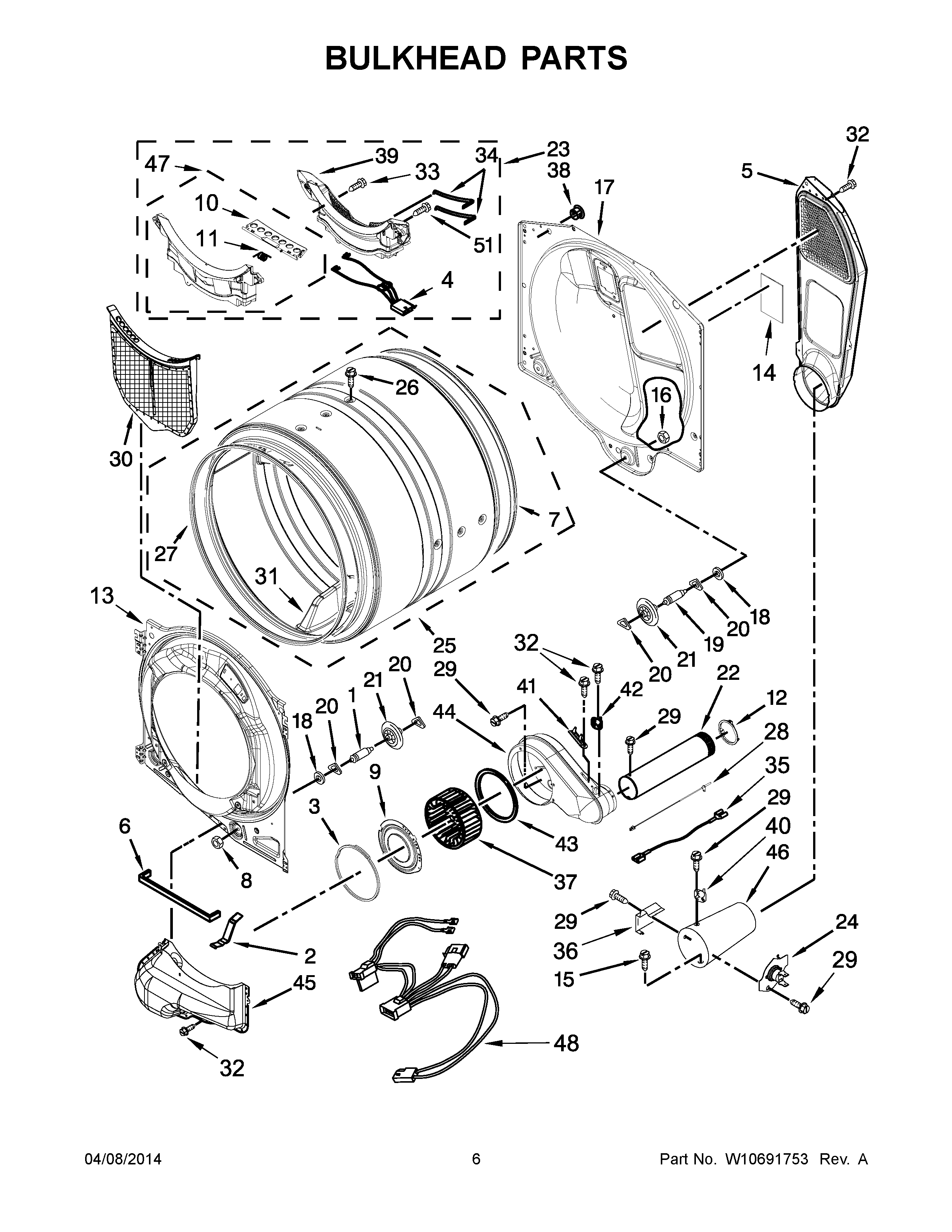

NGD5800DW0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	MAY W10414388
3	MAY W10211899
4	MAY W10298258
5	MAY W10295533
6	MAY W10211950
7	MAY W10521118
8	NUT, HEX
9	MAY W10211901
10	DOOR, LINT SCREEN
11	MAY W10219015
12	MAY W10344699
13	BULKHEAD, FRONT DOOR SCREEN
14	MAY W10504381
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 3387809
18	WASHER
19	SHAFT, DRUM ROLLER – LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY W10342188
23	ASSEMBLY, OUTLET GRILL AND HOUSING
24	CUT-OFF, THERMAL
25	DRUM ASSEMBLY COMPLETE
26	MAY W10219342
27	MAY W10521122
28	THERMISTOR, GAS INLET
29	Screw
30	LINT SCREEN (WHITE)
31	MAY W10416098
32	SCREW
33	SCREW
34	SENSOR, ELECTRODE
35	MAY W10525140
36	MAY 338906
37	MAY W10211915
38	MAY 8529007
39	GRILL, OUTLET
40	THERMOSTAT, HI LIMIT
41	Fuse, Thermal (91 C)
42	THERMISTOR
43	SEAL, PLATE COVER
44	MAY W10211911
45	MAY W10211896
46	MAY 8573824
47	ASSEMBLY, HOUSING AND DOOR
48	MAY W10468426
