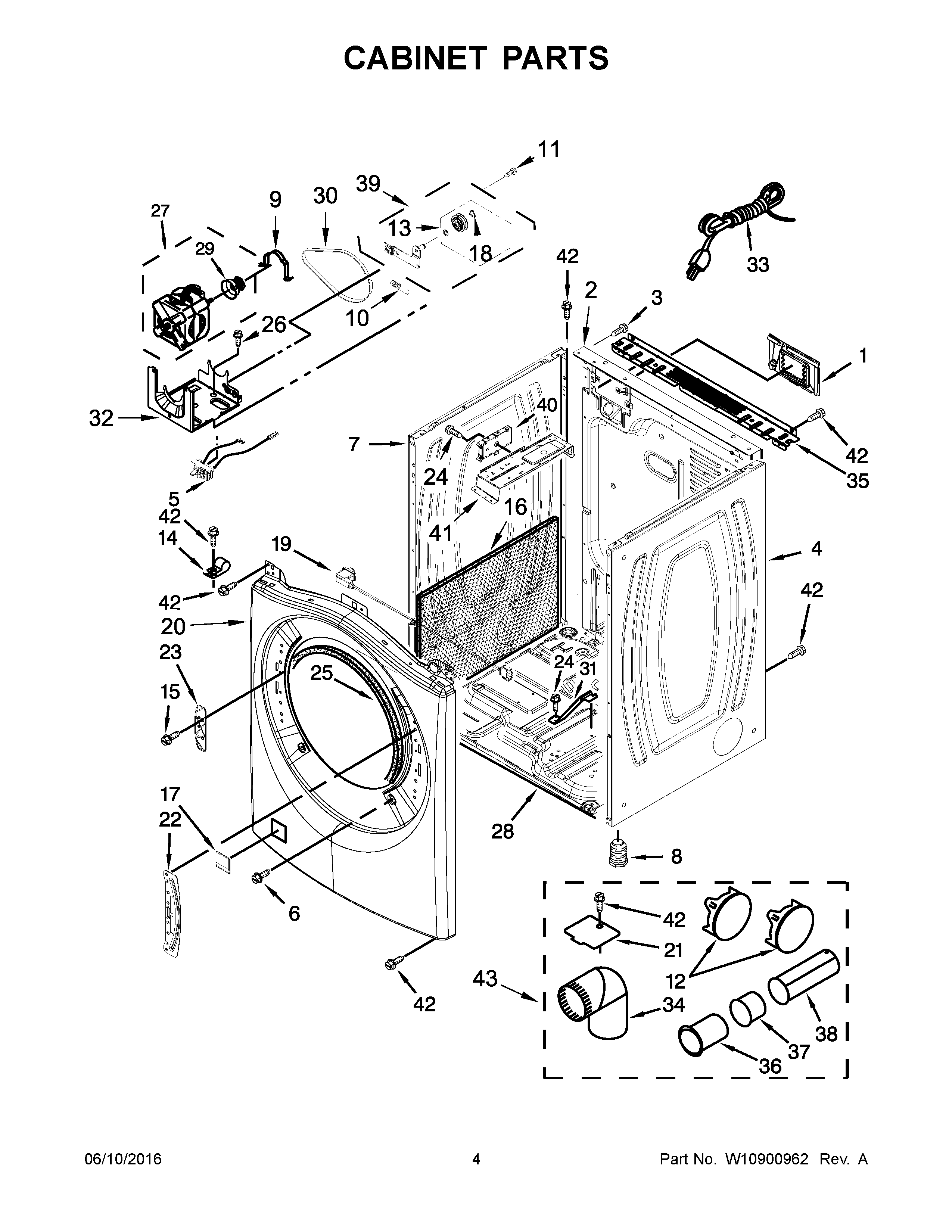

NGD5800DW1 03 – CABINET PARTSadmin2025-04-26T09:04:48+00:00NGD5800DW1 03 – CABINET PARTS
Products
| Position | Product |
|---|
| NI | MAY 279810 |
| 1 | MAY 8317339 |
| 2 | MAY W10487431 |
| 3 | MAY 8533974 |
| 4 | PANEL, SIDE (RIGHT) (WHITE) |
| 5 | SWITCH, BROKEN BELT |
| 6 | SCREW |
| 7 | MAY W10468495 |
| 8 | MAY 3392100 |
| 9 | CLAMP, MOTOR MOUNT |
| 10 | MAY W10446781 |
| 11 | SCREW |
| 12 | PLUG, MULTIVENT (MIDNIGHT GREY) |
| 13 | MAY W10468057 |
| 14 | MAY 3978776 |
| 15 | MAY W10288126 |
| 16 | MAY W10836097 |
| 17 | PLUG, FRONT PANEL (WHITE) |
| 18 | MAY W10121334 |
| 19 | ASSEMBLY, DOOR SWITCH |
| 20 | FRONT PANEL (INCLUDES DOOR HINGE BRACKET) (WHITE) |
| 21 | MAY W10354249 |
| 22 | MAY W10208218 |
| 23 | MAY W10208250 |
| 24 | Screw |
| 25 | MAY 3387242 |
| 26 | SCREW |
| 27 | ASSEMBLY, MOTOR |
| 28 | MAY 8565046 |
| 29 | Pulley, Motor |
| 30 | MAY 3387610 |
| 31 | MAY 8529757 |
| 32 | MAY W10242878 |
| 33 | MAY 3401401 |
| 34 | MAY W10416072 |
| 35 | MAY W10208382 |
| 36 | PIPE, EXHAUST (MEDIUM) |
| 37 | PIPE, EXHAUST (SHORT) |
| 38 | PIPE, EXHAUST (LONG) |
| 39 | ASSEMBLY, IDLER |
| 40 | BOARD, CONTROL |
| 41 | MAY W10259611 |
| 42 | SCREW |
| 43 | KIT, 4-WAY VENT |
