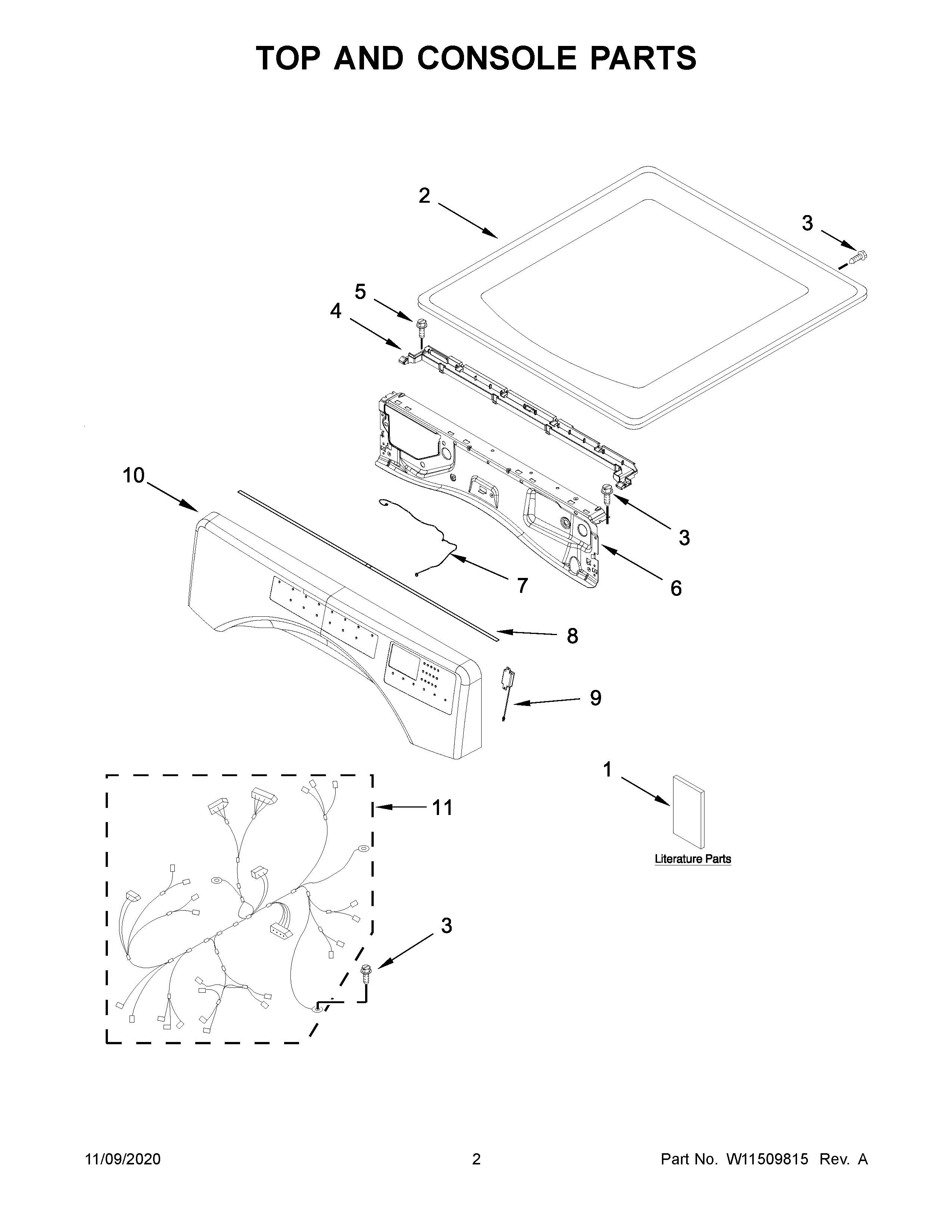

NGD5800HW1 02 – TOP AND CONSOLE PARTS

NGD5800HW1 02 – TOP AND CONSOLE PARTS

Written by

in

NGD5800HW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1DQUICK START GUIDE
1USE AND CARE GUIDE
1BTECH SHEET
1AINSTALLATION INSTRUCTIONS
1CWIRING DIAGRAM
2WPW10208383 Whirlpool Top Panel
3WP693995 Whirlpool Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7W11459337 Whirlpool Wire Harness
8SEAL
9W11123146 Whirlpool Speaker
10W11378950-includeCORE Whirlpool W11378950 Washer Electronic Control Board
11W11157863 Whirlpool Wire Harness
