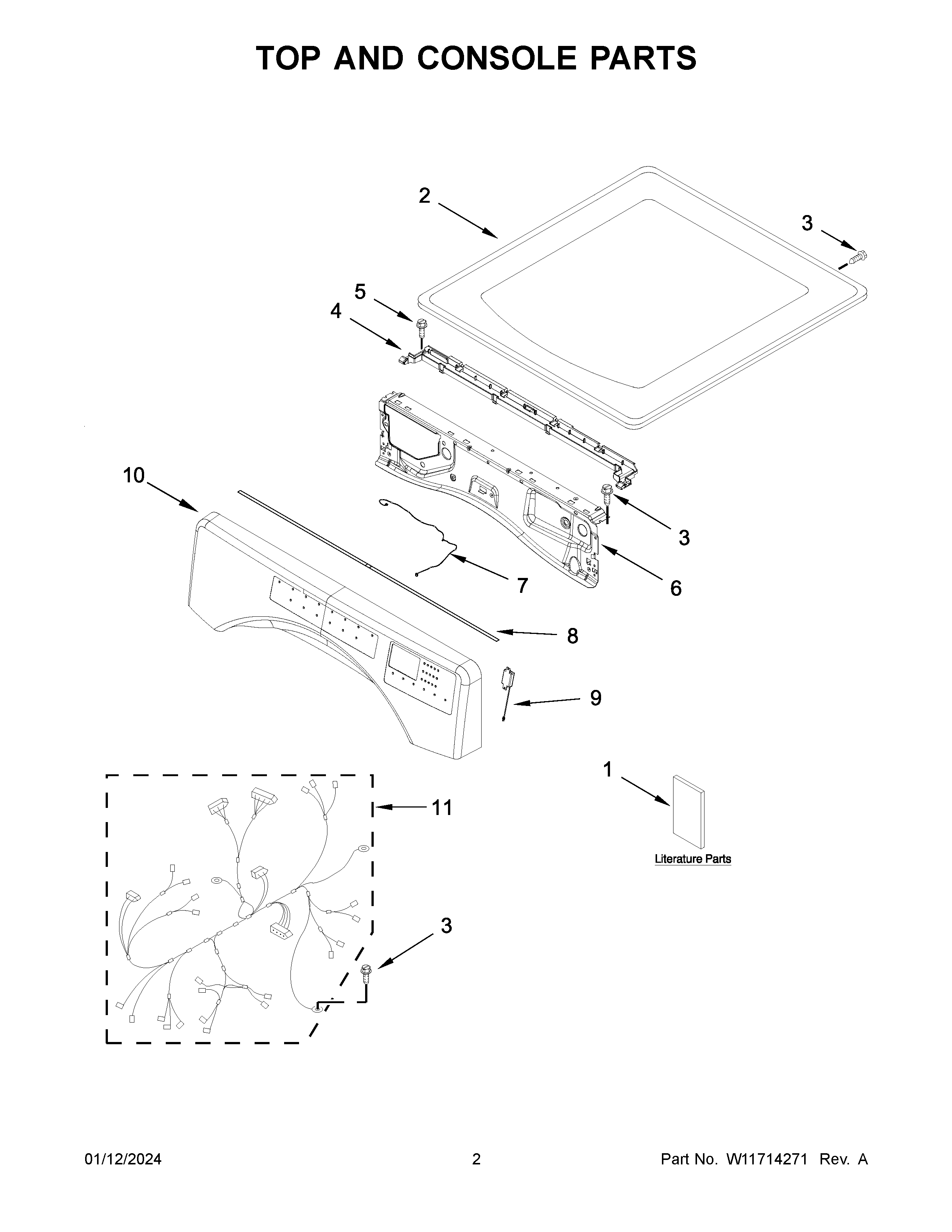

NGD5800HW3 02 – TOP AND CONSOLE PARTS

NGD5800HW3 02 – TOP AND CONSOLE PARTS

Written by

in

NGD5800HW3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1USE AND CARE GUIDE
1AINSTALLATION INSTRUCTIONS
1CWIRING DIAGRAM
1DQUICK START GUIDE
2WPW10208383 Whirlpool Top Panel
3WP693995 Whirlpool Screw
4W11310027 Whirlpool Bracket
5W11686675 Whirlpool Screw
6W11480682 Whirlpool Bracket
7W11459337 Whirlpool Wire Harness
8SEAL
9W11123146 Whirlpool Speaker
10W11714837-includeCORE Whirlpool Console+Core
11W11157863 Whirlpool Wire Harness
