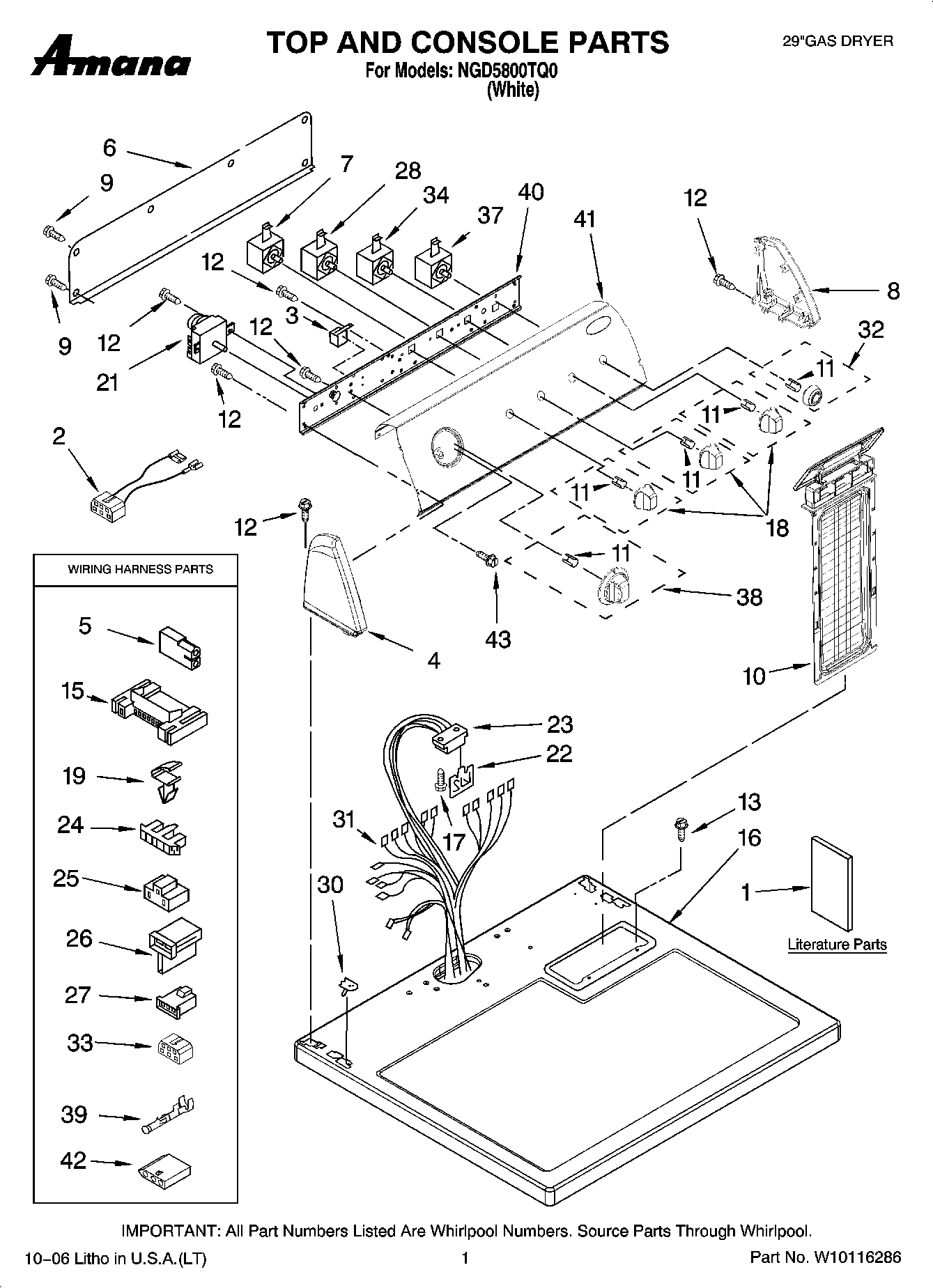

NGD5800TQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10089173
1	Installation Instructions
1	MAY 3406668
1	MAY W10088771
2	MAY 3401695
3	MAY 694419
4	MAY 8271365
5	Plug, 2-Way Terminal
6	MAY 8274261
7	MAY 3405155
8	MAY 8271359
9	Screw
10	Screen, Lint (White)
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
15	CONNECTOR (MOTOR)
16	MAY 8557930
17	MAY 359625
18	Knob, Control (2) (White)
19	CLIP, HARNESS
21	MAY 3406725
22	MAY 8558178
23	MAY 3391885
24	Connector-Timer
25	Connector (PTS) Relay
26	CONNECTOR, 2-POSITION (GAS VALVE)
27	MAY 3403498
28	Switch, Wrinkle Guard
30	Nut, Push-In
31	MAY 8299891
32	Knob, Push-To-Start (White)
33	Connector
34	Switch Rotary (Twist Mount)
37	Switch, Push-To-Start
38	Timer Knob, Assembly (White)
39	Terminal
40	MAY 8271418
41	MAY W10086671
42	MAY 3936144
43	MAY 8533951
