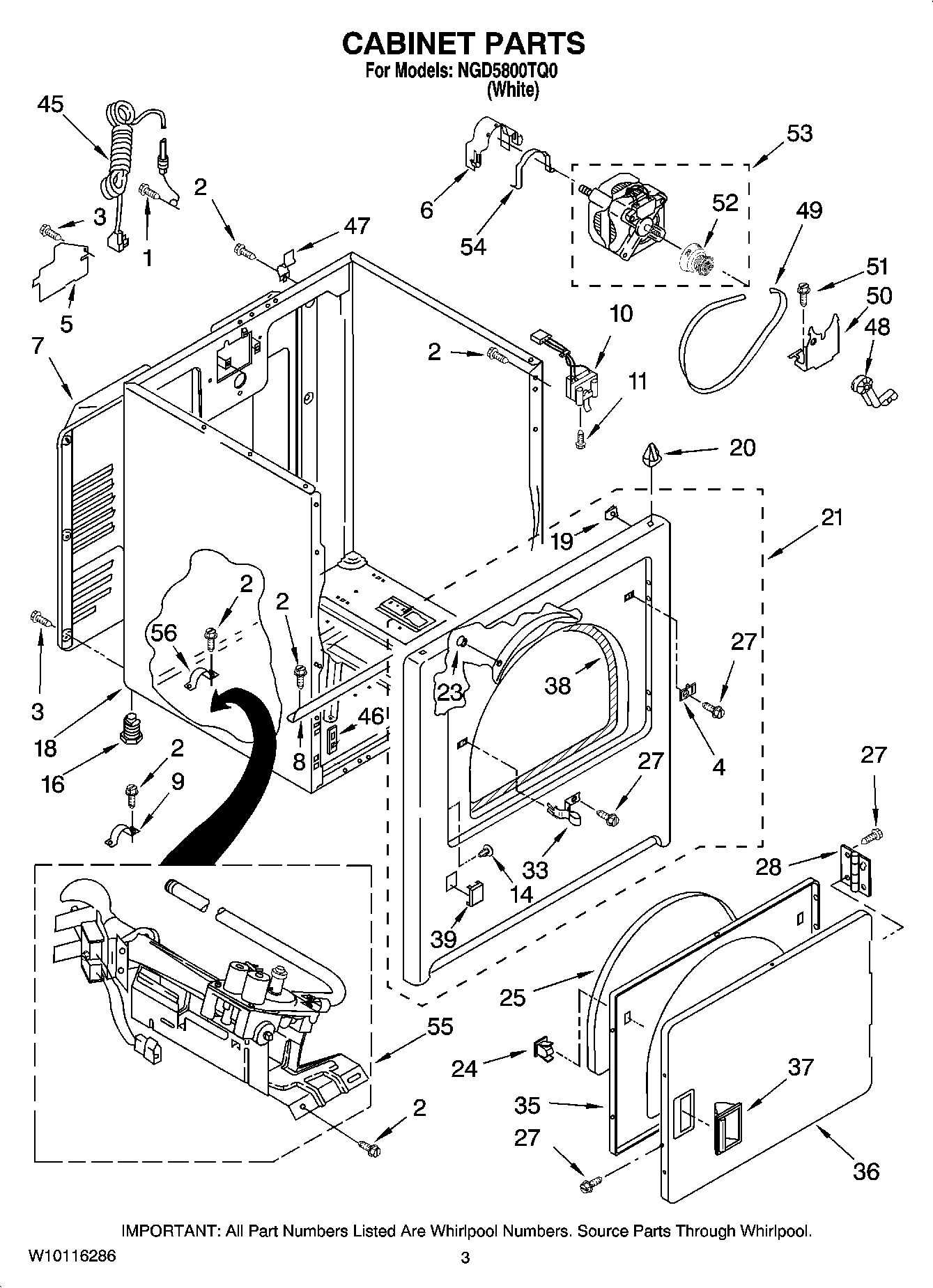

NGD5800TQ0 02 – CABINET PARTS

Products

Position	Product
1	Screw, 8-18 x 5/8 (External Ground)
2	SCREW
3	Screw
4	PLUG-STRIKE
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY 3396805
8	MAY 8541400
9	MAY 3980175
10	Switch, Door
11	SCREW
14	PLUG, HINGE HOLES
16	MAY 279810
16	MAY 3392100
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	MAY 3403447
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3405246
27	MAY 342055
28	HINGE AND PIN ASSEMBLY
33	Strike, Door
35	Door, Rear
36	DOOR FRONT
37	Handle, Door (White)
38	MAY 3406129
39	MAY 3394975
45	MAY 344020
46	MAY 3394083
47	Hinge, Top
48	IDLER ASSEMBLY
49	MAY 8066065
50	MAY 348780
51	BOLT
52	Pulley, Motor
53	MAY 8066206
54	MAY 660658
55	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
56	MAY 341029
