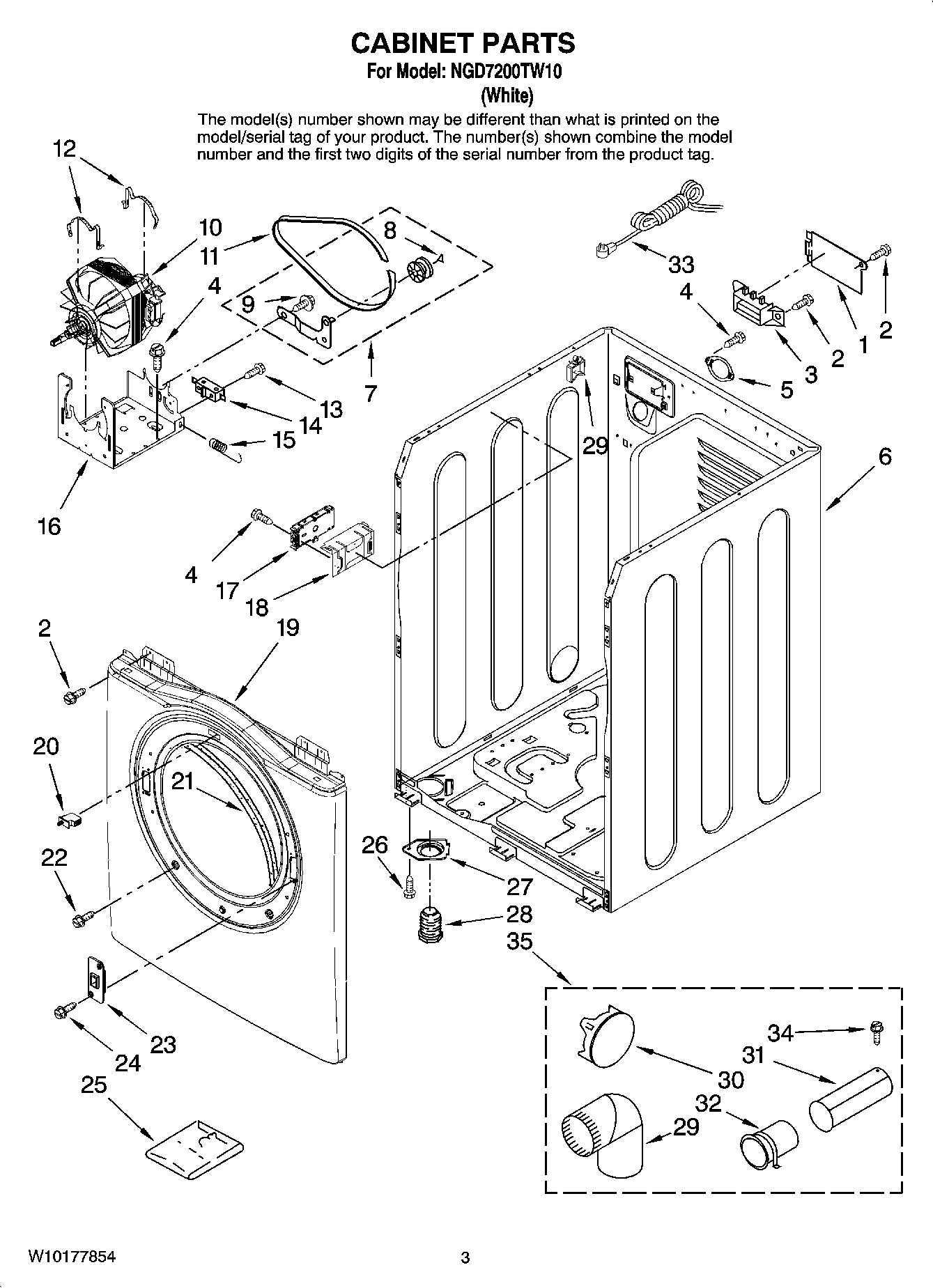

NGD7200TW10 02 – CABINET PARTS

Products

Position	Product
1	MAY 35001157
2	MAY 6006-001174
3	279320 Whirlpool Dryer Rear Terminal Block Kit
4	Screw-Tapping (5)
5	Strain-Relief Power Cord
6	MAY 35001170
7	Bracket, Idler
8	MAY 35001084
9	Retainer, Idler
10	MAY 35001180
11	WPW10205415 Whirlpool Drum Belt
12	MAY 35001081
13	SCREW-TAPPING
14	MAY 35001082
15	MAY 35001278
16	MAY 35001106
17	MAY 35001153
18	MAY 35001168
19	MAY W10177396
20	MAY 35001125
21	MAY W10177398
22	Screw-Tapping (4)
23	MAY 35001112
25	MAY 35001255
26	MAY 6002-000213
27	MAY 35001156
28	Foot-Dryer
29	MAY Y059131
30	Plug-Multivent
31	Duct, Exhaust (B)
32	Duct, Exhaust (A)
33	Power-Cord
34	WPW10346892 Whirlpool Screw
35	MAY 12002641
