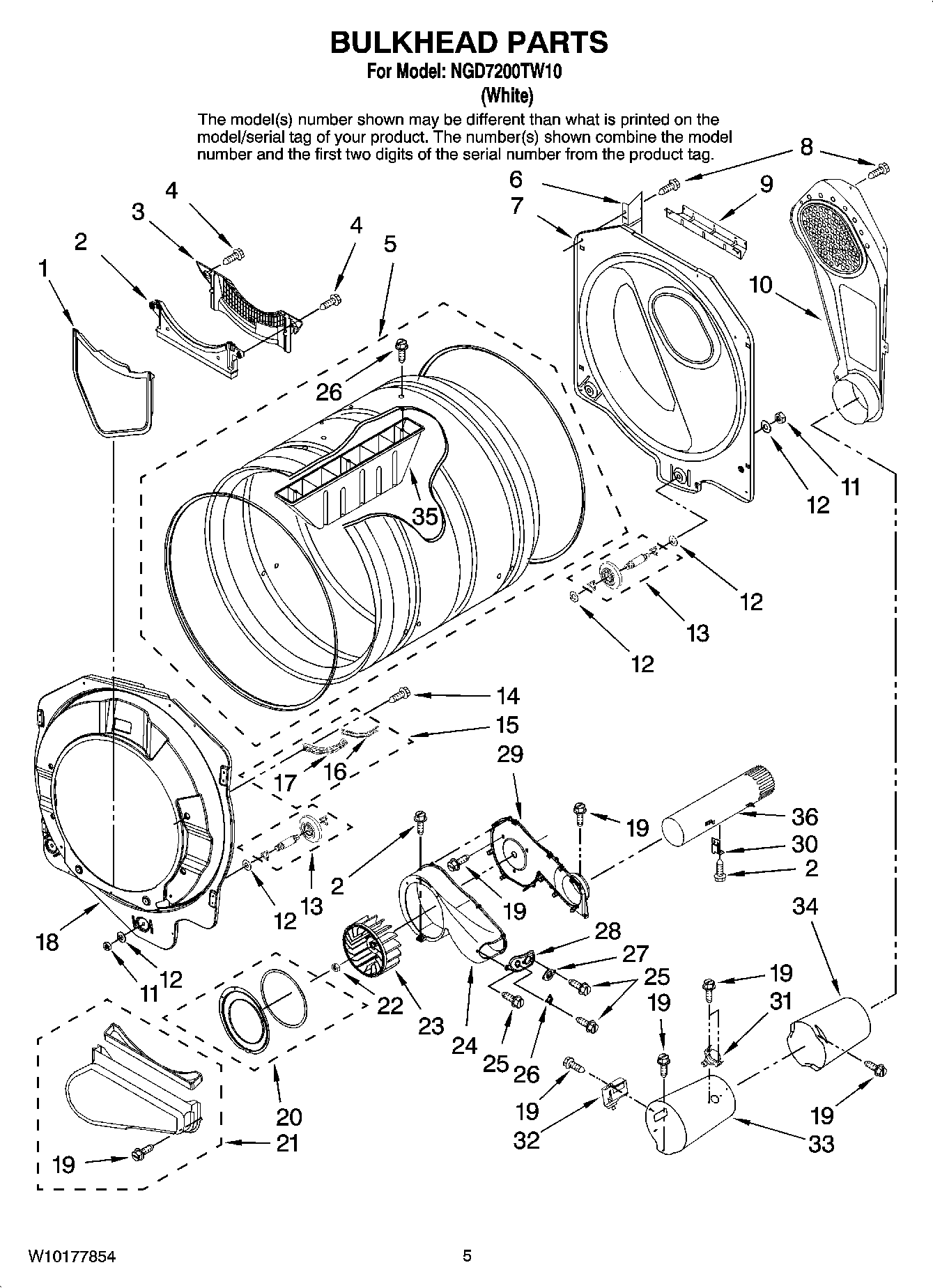

NGD7200TW10 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY W10177426
2	MAY 35001144
3	MAY 35001243
4	MAY 34001214
5	Assembly, Drum
6	Channel Bracket, Rear Bulkhead (2)
7	MAY W10177410
8	6002-000239 Samsung Appliance Tapping Screw TH + No 2S M4
9	MAY 35001145
10	MAY 35001240
11	MAY 35001132
13	MAY W10177428
14	MAY 6002-000132
15	Guide-Sensor Assembly
16	MAY 35001241
17	MAY 35001242
18	Bulkhead, Front
19	Screw-Tapping (5)
20	Cover-Plate Assembly
21	MAY 35001140
22	MAY 35001079
23	MAY 35001220
24	Housing-Blower Front
25	Screw-Tapping (4)
26	WP35001087 Whirlpool Thermostat
27	THERMISTOR
28	BRACKET-THERMISTOR
29	MAY 35001088
30	MAY 35001155
31	WP35001092 Whirlpool Dryer High Limit Thermostat
32	WP338906 Whirlpool Dryer Gas Sensor
33	MAY 35001225
34	MAY 35001249
35	Baffle-Drum
36	Exhaust Pipe
