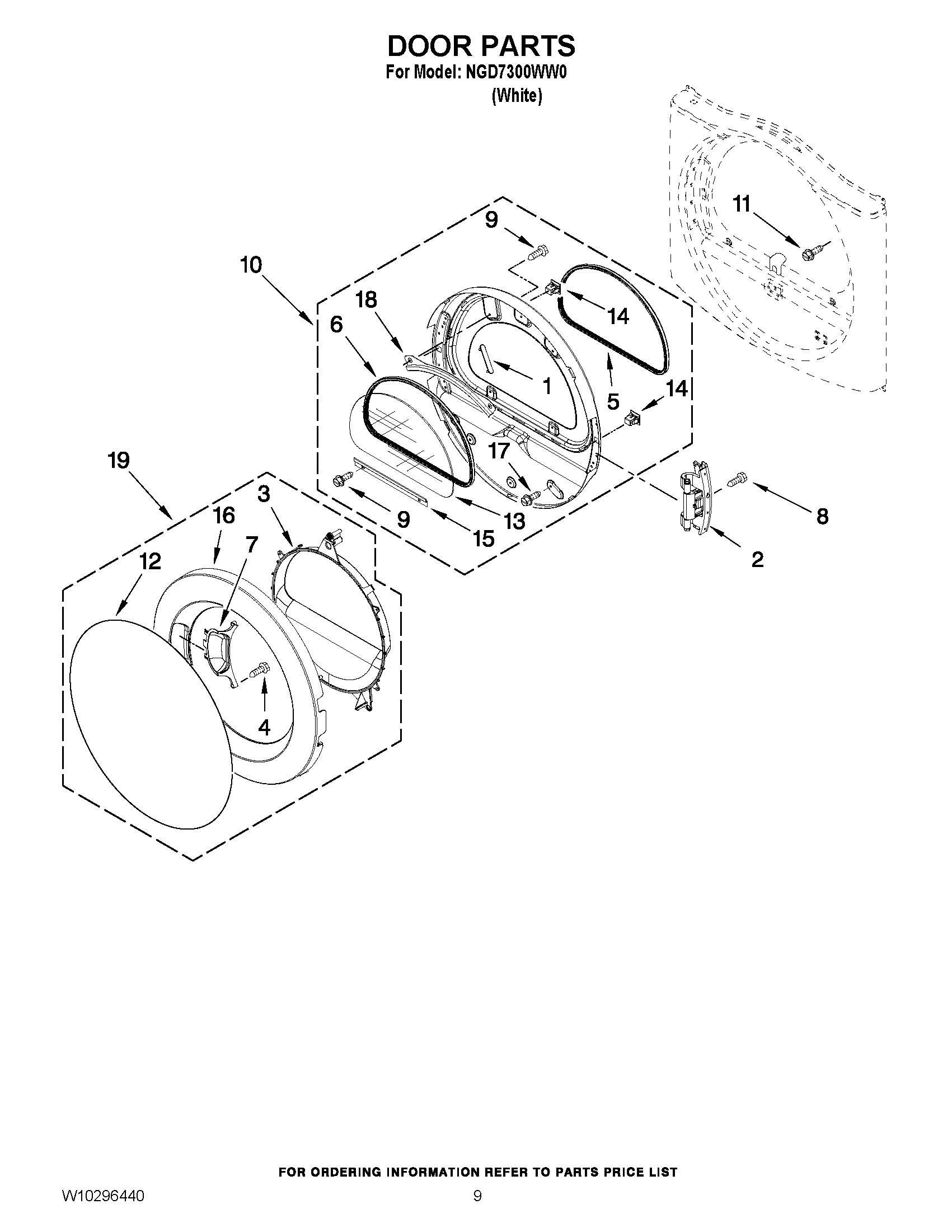

NGD7300WW0 05 – DOOR PARTS

Products

Position	Product
1	LABEL, HINGE HOLE COVER (INNER DOOR)
2	DOOR HINGE ASSEMBLY
3	DOOR, INTERMEDIATE
4	Screw
5	MAY W10163915
6	MAY 8579663
7	MAY W10215754
8	SCREW
9	Screw, 10-16 x 1/2
10	DOOR ASSEMBLY (INNER) (INCLUDES, ITEM. 1 & 14 )
11	MAY 355515
12	MAY W10215741
13	MAY W10286878
14	Catch, Door
15	MAY 8519354
16	MAY W10215742
17	MAY 8534022
18	MAY 8519356
19	OUTER DOOR ASSY.
