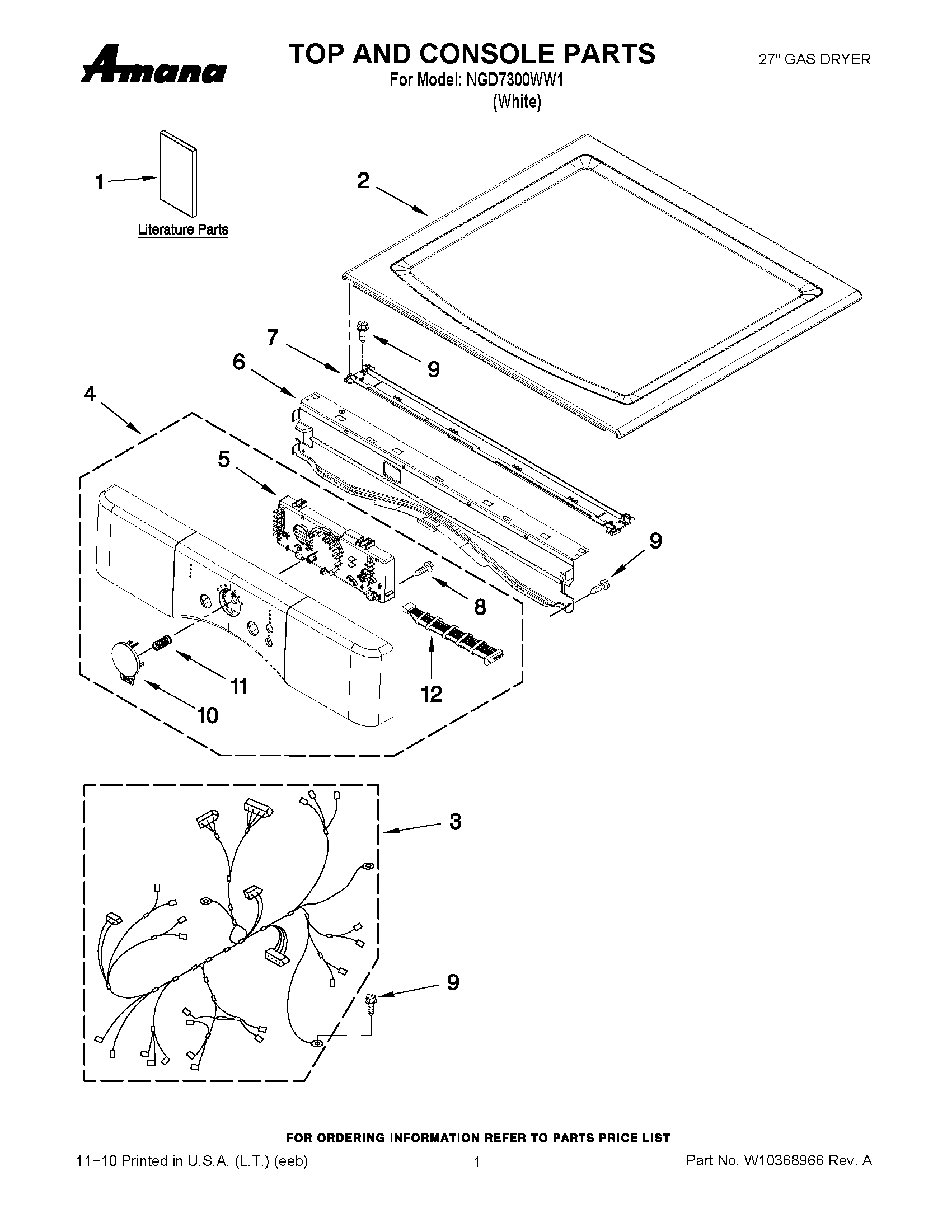

NGD7300WW1 01 – TOP AND CONSOLE PARTS

NGD7300WW1 01 – TOP AND CONSOLE PARTS

Written by

in

NGD7300WW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10240875
1INSTALLATION, INSTRUCTION
1MAY W10340328
2TOP (WHITE)
3MAY W10251443
4MAY W10215746
5ASSEMBLY, USER INTERFACE
6MAY 8565237
7CHANEL, WATER
8SCREW, TOP
9SCREW
10CYCLE BUTTON
11CYCLE BUTTON, SPRING
12MAY W10259049
