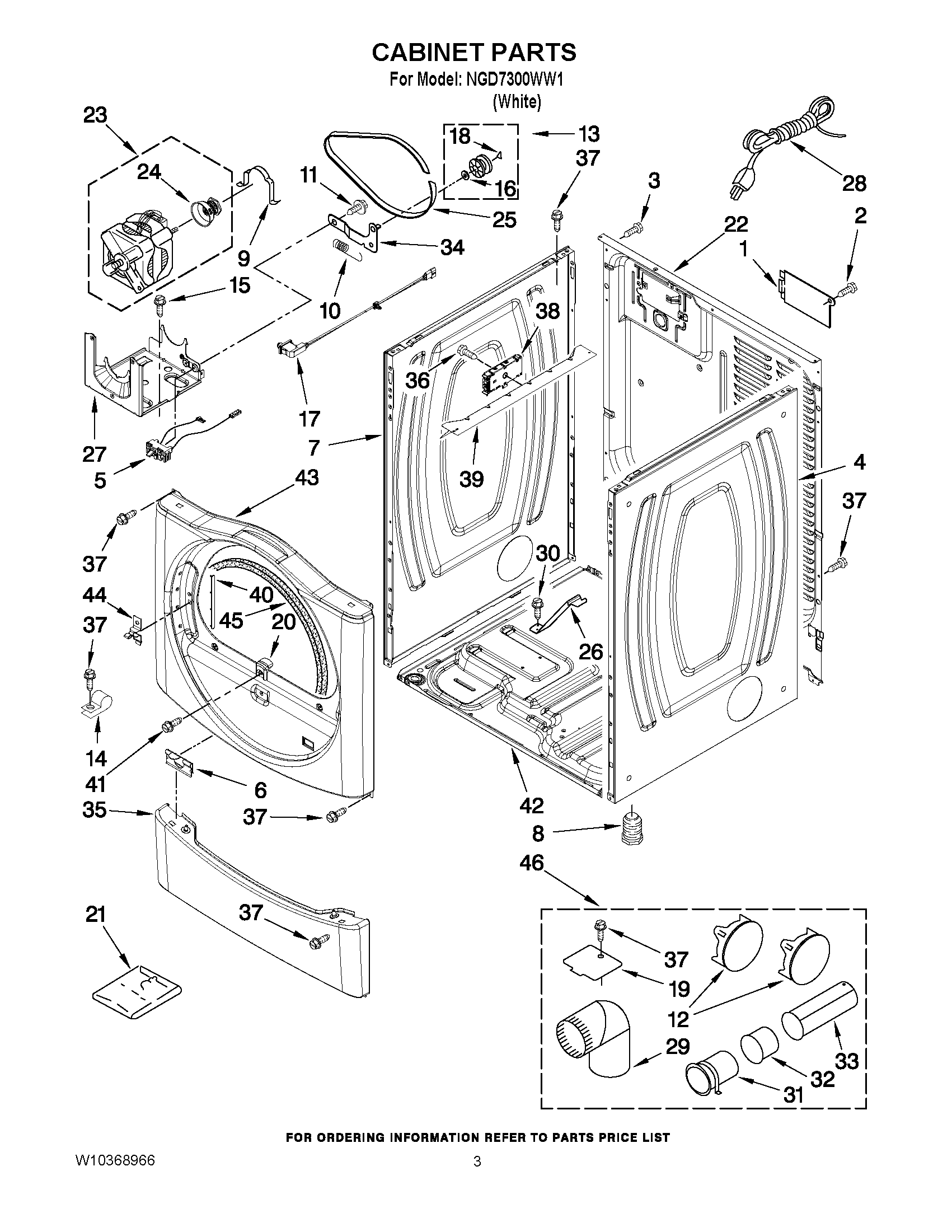

NGD7300WW1 02 – CABINET PARTS

Products

Position	Product
NI	PLUG, MULTIVENT
NI	MAY 279810
1	MAY 8317340
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	MAY 8565048
5	MAY W10246525
6	MAY 8519459
7	MAY 8565054
8	MAY 3392100
9	MAY 660658
10	MAY 3387374
11	SCREW
12	MAY 49252
13	ASSEMBLY, PULLEY
14	MAY 3978776
15	SCREW
16	MAY W10121334
17	DOOR SWITCH ASSEMBLY
18	WASHER, TRI RING
19	MAY 8066115
20	MAY 8565083
21	MAY 8572546
22	MAY 8565059
23	Motor Assembly 60 HZ.
24	Pulley 60 HZ.
25	MAY 3387610
26	MAY 8529757
27	MAY W10242878
28	MAY 3401401
29	MAY 49026
30	Screw
31	PIPE, EXHAUST (MEDIUM)
32	MAY 8563750
33	PIPE, EXHAUST (LONG)
34	MAY 3388674
35	MAY 8540621
36	MAY 8533971
37	SCREW
38	MAY W10235613
39	Bracket, Control
40	PLUG-STRIP FRONT PANEL
41	SCREW
42	MAY 8565046
43	FRONT PANEL (INCLUDE, ITEM. 44 )
44	STRIKE, DOOR
45	MAY 3387242
