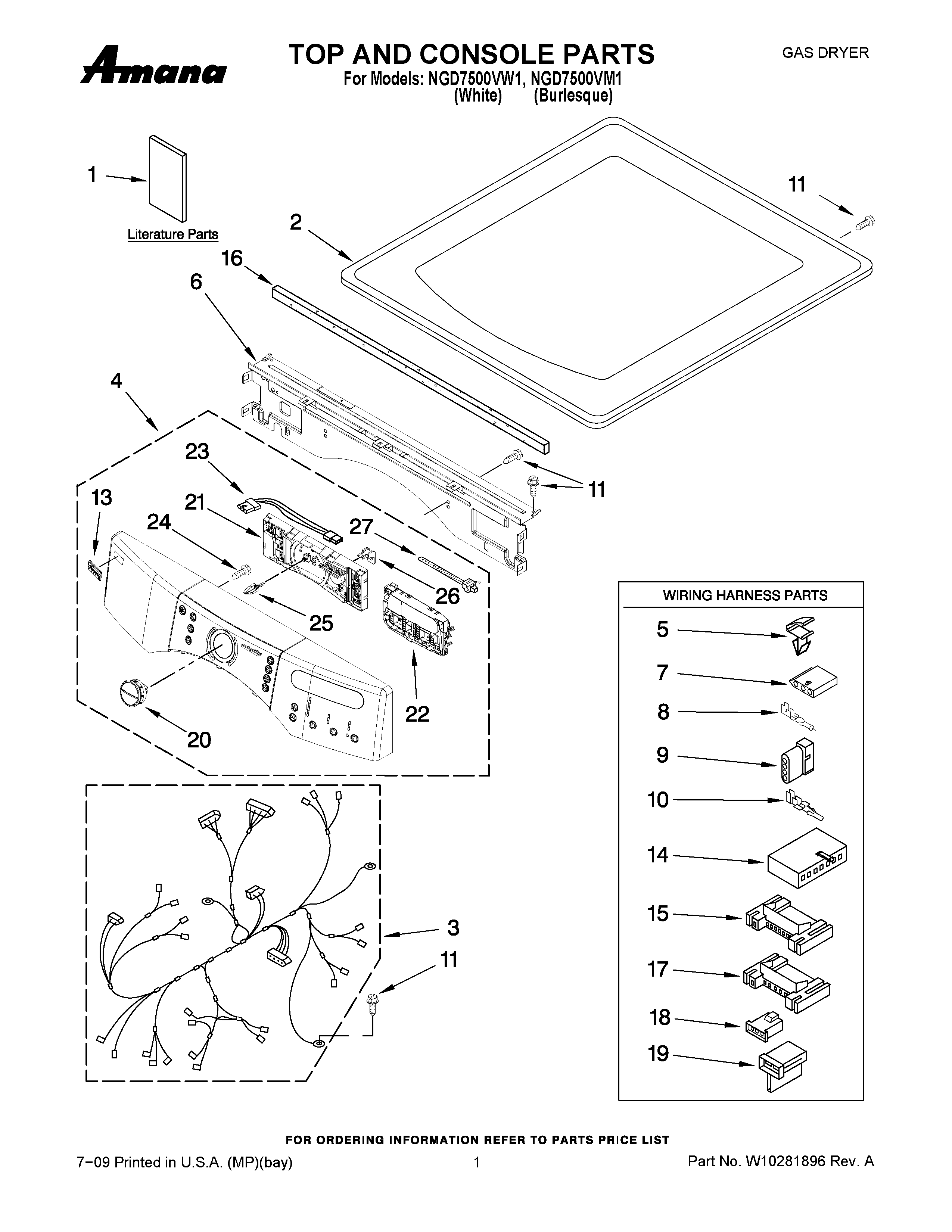

NGD7500VM1 01 – TOP AND CONSOLE PARTS

NGD7500VM1 01 – TOP AND CONSOLE PARTS

Written by

in

NGD7500VM1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10239303
1MAY W10258382
1INSTALLATION, DIAGNOSTIC GUIDE
2MAY W10110661
2MAY 3980634
3MAY W10111062
4MAY W10216297
4MAY W10216290
5CLIP, HARNESS
6BRACKET, CONSOLE (INCLUDE, ITEM. 12 )
7Connector Sensor
8Terminal
9MAY 3936144
10Terminal
11Screw, 8-32 x 1/32
13Medallion
14MAY 3936150
15CONNECTOR (MOTOR)
16Seal, Foam Console Bracket
17MAY 2203186
18MAY 3403498
19CONNECTOR, 2-POSITION (GAS VALVE)
20KNOB, ASSEMBLY
20MAY W10216296
21USER-INTERFACE (CENTER) (INCLUDES: ITEM. 25 )
22MAY W10216284
23MAY W10242905
24SCREW, TOP
25MAY W10023220
26Clip, Harness
27MAY 3391018
