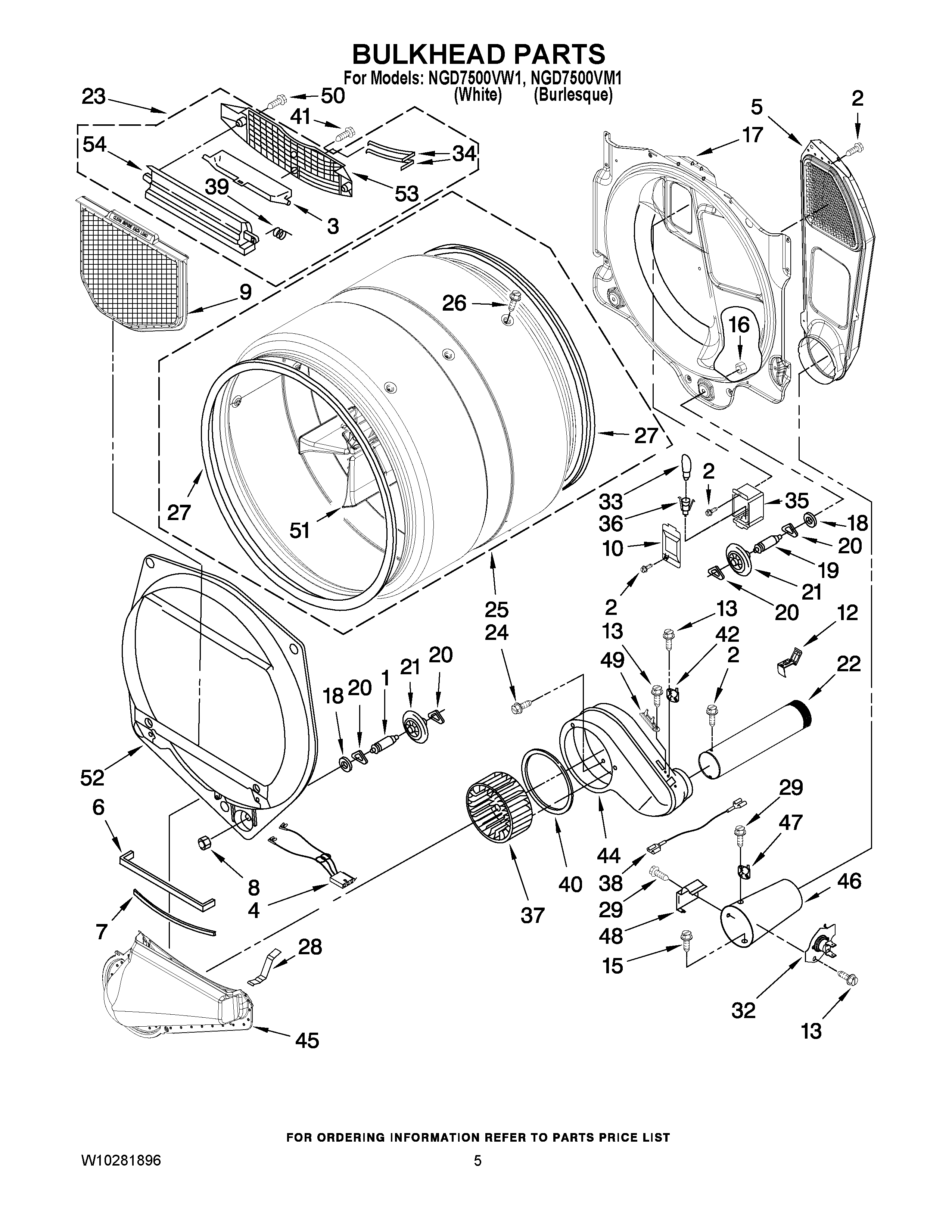

NGD7500VM1 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 8575324
2	SCREW
3	MAY 3394984
4	SENSOR HARNESS
5	MAY 3394346
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	MAY W10049370
10	MAY 3402841
12	CLIP, EXHAUST
13	MAY 8533971
15	Screw
16	NUT, HEX (LEFT HAND THREAD)
17	MAY W10080170
18	WASHER
19	MAY 8575325
20	WASHER, TRI RING
21	MAY 8536973
22	MAY 8563745
23	OUTLET GRILL HOUSING ASSEMBLY (INCLUDES ILLUS. 3,34,39,53,54)
24	Screw
25	MAY W10181466
26	MAY W10219342
27	MAY W10166807
28	CLIP-SPRING
29	SCREW,8-18 X 3/8
32	CUT-OFF, THERMAL
33	MAY 3406124
34	SENSOR, ELECTRODE
35	MAY 8578825
36	MAY W10214261
37	MAY 697772
38	Jumper-Tco Hi-Limit
39	Spring, Lint Screen Door
40	SEAL, PLATE COVER
41	Screw, 8-18 x 1/2
42	THERMISTOR
44	MAY 8544362
45	Lint Duct Assembly
46	MAY 8573824
47	THERMOSTAT, HI LIMIT
48	MAY 338906
49	Fuse, Thermal (91 C)
50	SCREW
51	BAFFLE, DRUM
52	MAY W10252304
53	MAY 8299979
54	MAY 3394985
