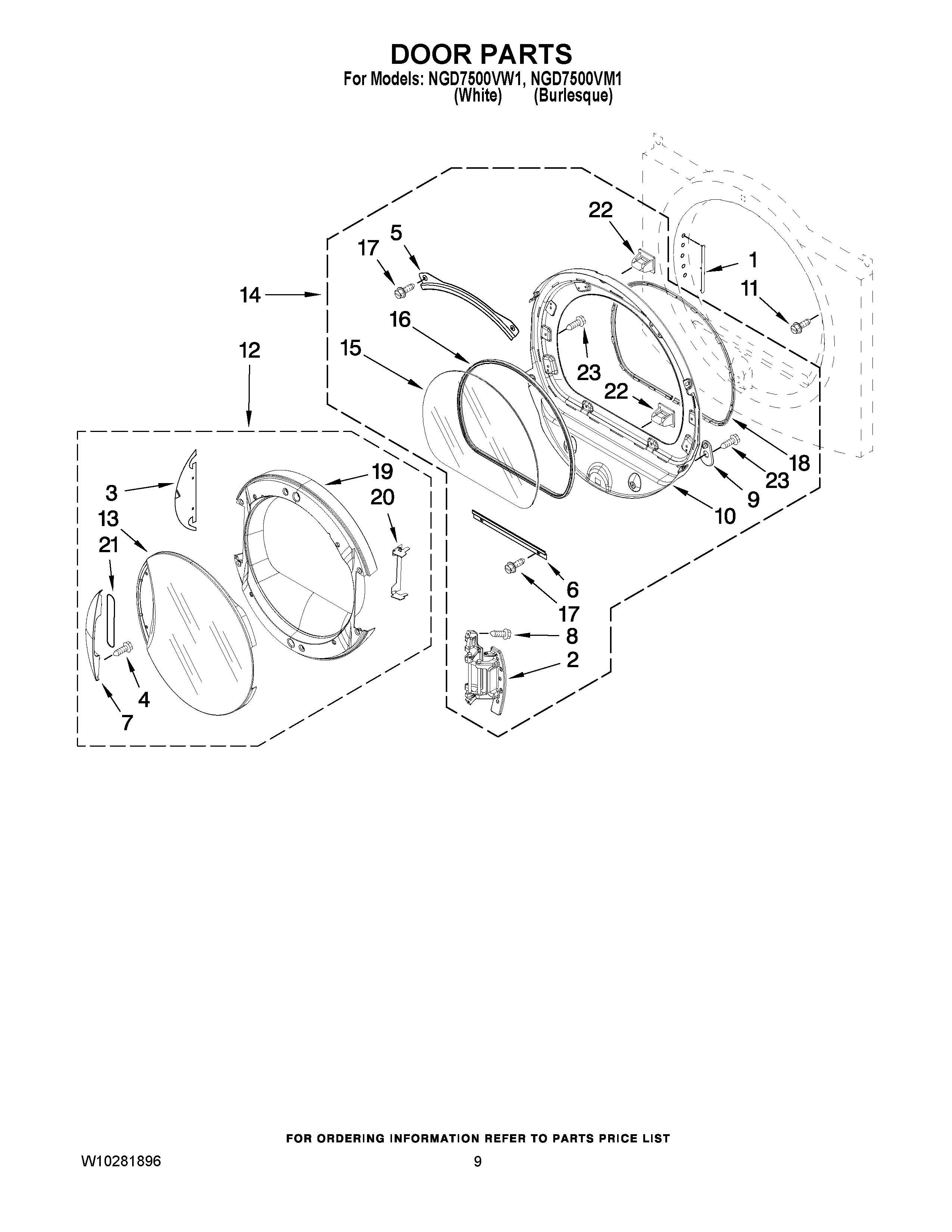

NGD7500VM1 05 – DOOR PARTS

Products

Position	Product
1	PLUG-STRIP FRONT PANEL
1	MAY W10085230
2	MAY W10139920
3	MAY W10180095
4	Screw
5	MAY 8519356
6	MAY 8519354
7	HANDLE, DOOR (INCLUDE, ITEM. 15 )
8	SCREW
9	MAY W10048910
10	DOOR ASSEMBLY (INNER) (INCLUDE, ITEM. 1 & 8 )
11	MAY 355515
12	MAY W10180090
13	MAY W10180093
14	INNER DOOR ASSEMBLY
15	Glass-Window
16	MAY 8579662
17	Screw, 10-16 x 1/2
18	Seal Door Assembly (Upper)
19	MAY W10180094
20	MAY W10180096
21	MAY 8580117
22	Catch, Door
23	SCREW, 14-20 X 1/2
