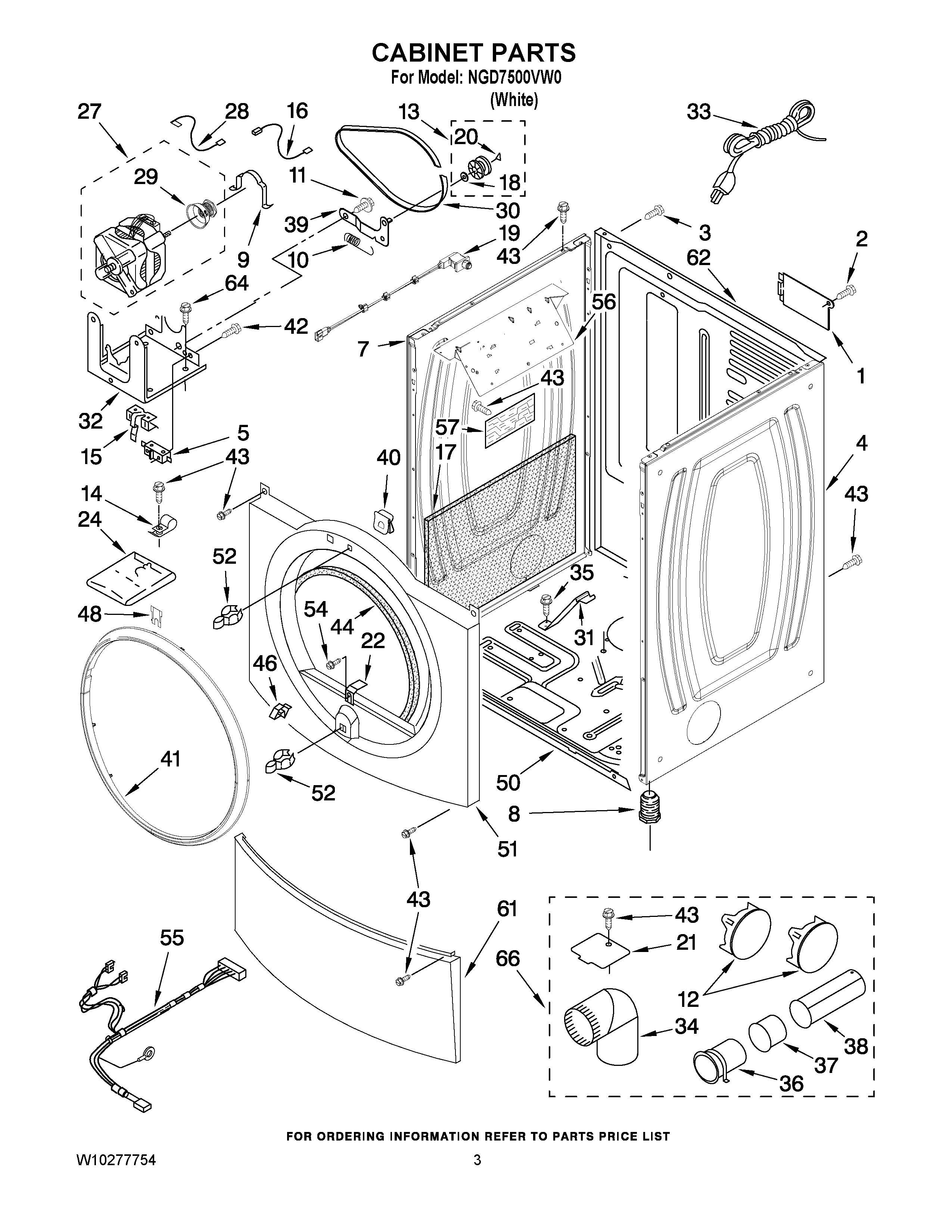

NGD7500VW0 02 – CABINET PARTS

Products

Position	Product
1	MAY 8317340
2	Screw, 8-18 x 3/8
3	MAY 8533974
4	Panel, Side (R.H.) (White)
5	MAY W10167612
7	Panel, Side (L.H.) (White)
8	MAY 3392100
8	MAY 279810
9	CLAMP, MOTOR MOUNT
10	MAY 3387374
11	SCREW
12	MAY 49252
13	ASSEMBLY, PULLEY
14	MAY 3978776
15	MAY 8066120
16	MAY 3394081
17	MAY W10123956
18	MAY W10121334
19	SWITCH, ASSEMBLY DOOR
20	WASHER, TRI RING
21	MAY 8066115
22	MAY 8529053
24	MAY 8541503
27	Motor Assembly 60 HZ.
28	Wire, Jumper (Broken Belt Switch)
29	Pulley 60 HZ.
30	MAY 3387610
31	MAY 8529757
32	MAY 3387118
33	MAY 3401401
34	MAY 49026
35	Screw
36	PIPE, EXHAUST (MEDIUM)
37	MAY 8563750
38	PIPE, EXHAUST (LONG)
39	MAY 3388674
40	Clip, S-Type (3)
41	ASSEMBLY, TRIM-RING (INCLUDE, ITEM. 48 )
42	Screw, 6-20 x 1-1/16
43	SCREW
44	MAY 3387242
46	MAY 8519459
48	Trim-Clip Metal
50	MAY W10239098
51	FRONT PANEL (INCLUDES ILLUS. 44)
52	MAY 696144
54	SCREW
55	MAY W10181464
56	Bracket, Control
57	CONTROL BOARD
61	Panel, Toe (White)
62	MAY W10180481
64	SCREW
66	MAY 279818
