NGS5712AS0 05 – DOOR

NGS5712AS0 05 – DOOR

Written by

in

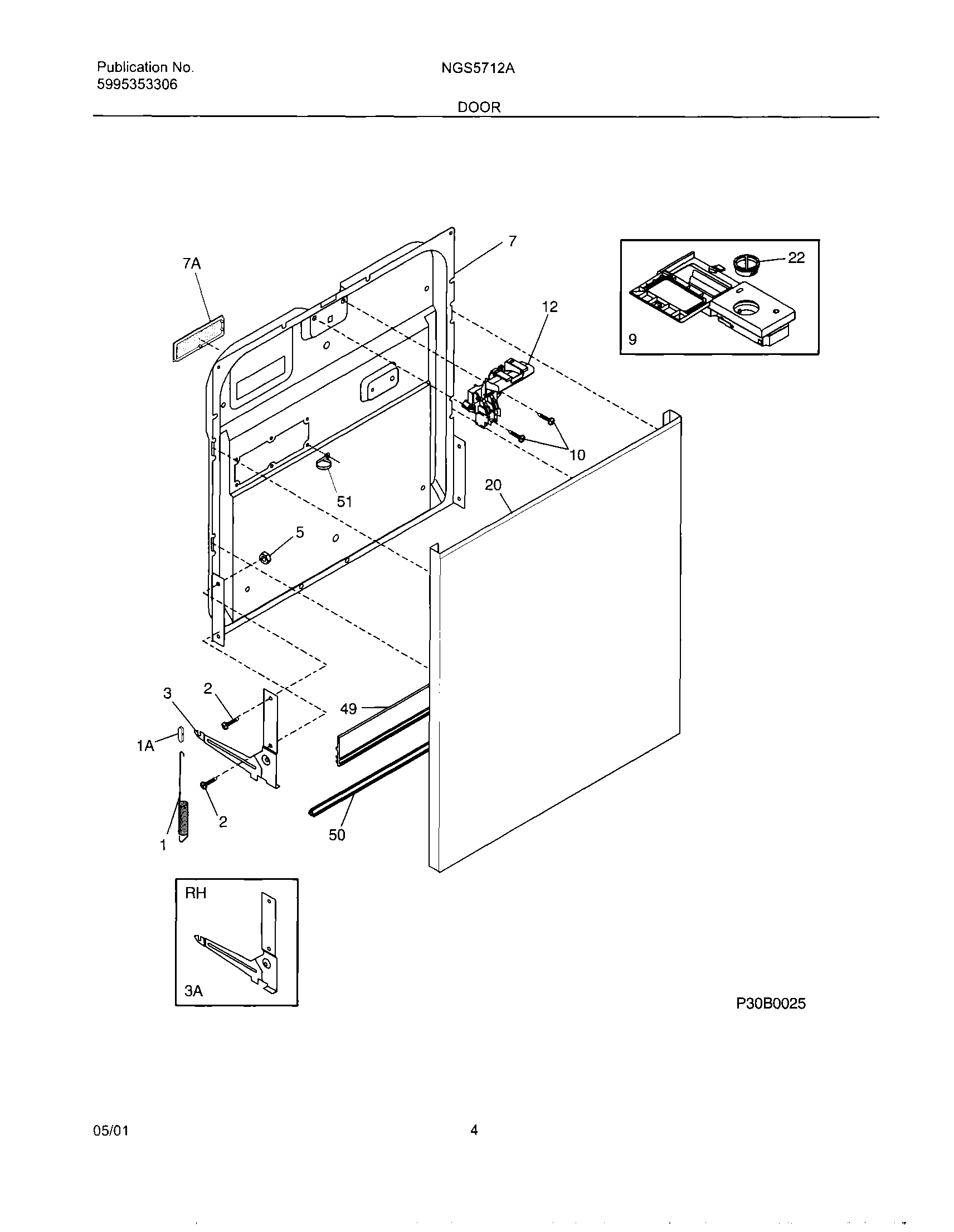

NGS5712AS0 05 – DOOR

Products

PositionProduct
NI154294701 Frigidaire Dishwasher Screw
NIPIN-ARM (NOT ILLUSTRATED)
1154325201 Frigidaire Linkage Spring
1154430601 Frigidaire Dishwasher Door Spring
2154093301 Frigidaire Dishwasher ARM Assembly Screw
35304409912 Frigidaire Dishwasher P-1 Right Hinge
55303013272 Frigidaire Oven Nut
7WCI 154226601
7WCI 154299002
9WCI 154230102
10154103702 Frigidaire Dishwasher Screw
125304442175 Frigidaire Black Door Latch Assembly
20WCI 154359006
22154388801 Frigidaire Dishwasher Rinse Aid Dispenser Cap
49809006501 Frigidaire Bottom Seal/Gasket Door
50WCI 154211401
51WCI 154320301
