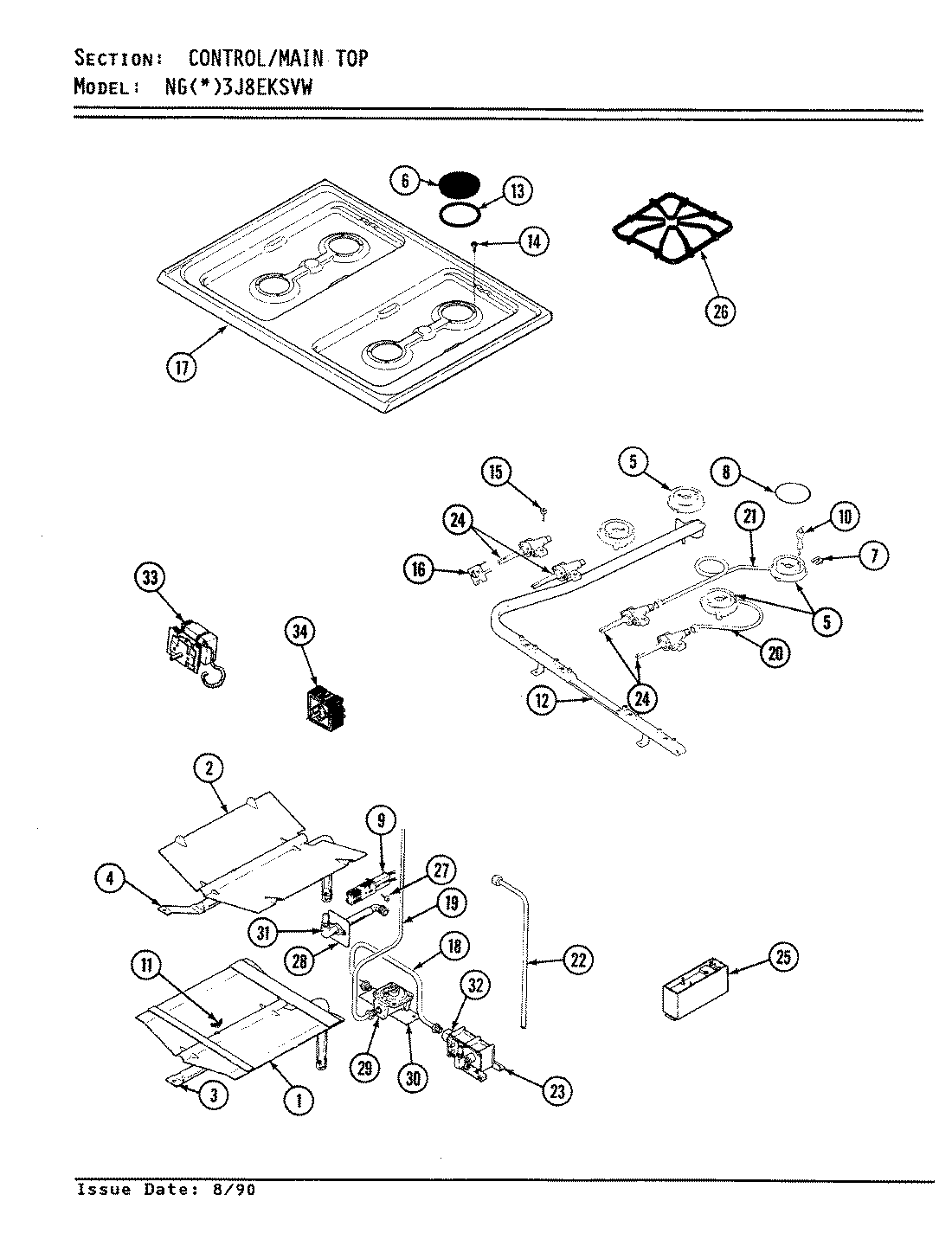

NGW3J8EKSVW 04 – TOP ASSEMBLY
Written by
in
NGW3J8EKSVW 04 – TOP ASSEMBLY
Products
Position
Product
1
MAY 3601W184-15
2
MAY 3601F181-45
3
MAY 7505P101-60
4
MAY 7505P100-60
5
MAY 5415A016-60
5
MAY 5415A015-60
5
MAY 5110A825-60
5
MAY 5110A824-60
5
MAY 3403D018-59
6
MAY 3403A019-60
7
MAY 7112P072-60
8
MAY 7201P037-60
9
MAY 7432P066-60
10
MAY 7432P053-60
11
NUT, WING
12
MAY 7513P086-60
13
MAY 2014F001-00
14
MAY 7101P256-60
15
MAY 7101P043-60
16
WP7403P190-60 Whirlpool Switch
17
MAY 2001F063-84
17
MAY 2001F063-81
18
MAY 7506P075-60
19
MAY 7506P101-60
20
MAY 7506P076-60
21
MAY 7506P077-60
22
MAY 3414F057-44
23
MAY 7501P034-60
24
MAY 7214P003-60
24
MAY 7502P100-60
25
MAY 3801F205-45
25
MAY 7431P016-60
26
MAY 7518P005-60
27
SCREW (10-24X5/16-NI)
28
MAY 3605F019-45
29
MAY 7510P028-60
30
MAY 3801F191-45
31
MAY 7507P028-60
32
MAY 1555251
33
MAY 7404P064-60
34
MAY 7403P092-60
←
