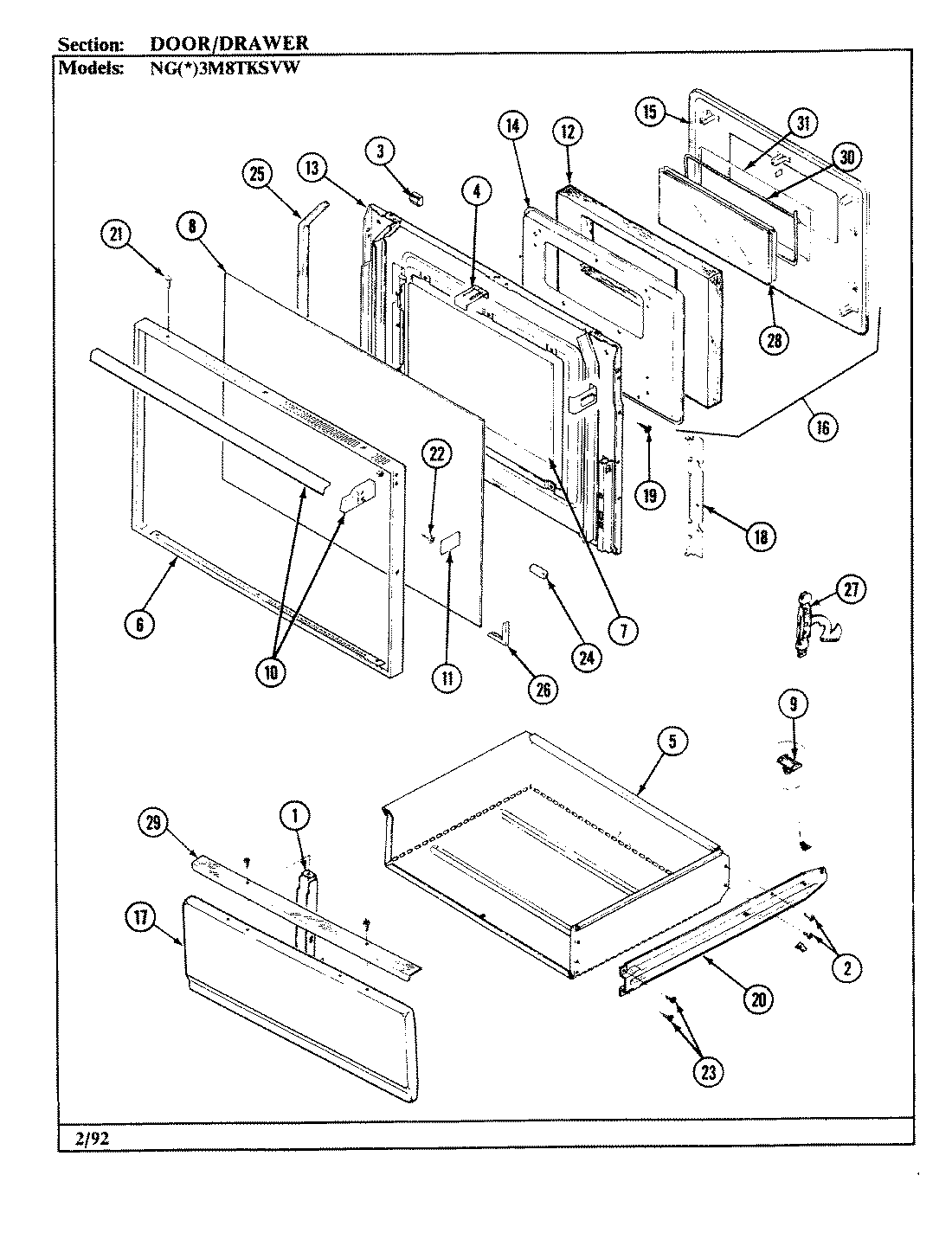

NGW3M8TKS 03 – DOOR/DRAWER
Written by
in
NGW3M8TKS 03 – DOOR/DRAWER
Products
Position
Product
1
SCREW
1
MAY 3801F115-51
2
MAY 7101P272-60
3
MAY 8003P009-60
4
CLIP, DOOR
5
MAY 3405F008-80
6
MAY 7706P243-60
7
MAY 7902P097-60
8
TAPE, FOIL (3“ WIDE)
8
MAY 7902P276-60
9
MAY 8016P004-60
9
MAY 8016P009-60
10
MAY 7701P047-60
11
MAY 7728P068-60
12
MAY 4804F006-60
13
WP7103P114-60 Whirlpool Snap Nut
13
MAY 8114P274-60
13
MAY 2402W173-19
14
MAY 2410F016-51
15
MAY 2410W041-19
16
MAY 2410A041-19
17
MAY 2416F018-71
17
MAY 2416F018-74
18
MAY 3804F051-80
19
MAY 7107P015-60
20
MAY 3406F026-80
21
WP7101P126-60 Whirlpool Screw
22
MAY 7101P305-60
23
MAY 7101P061-60
24
MAY 7208P011-60
25
MAY 7208P002-60
26
MAY 8010P045-60
27
MAY 3420A033-34
28
MAY 7902S303-60
29
MAY 2411F001-74
29
WP2411F013-71 Whirlpool Door Handle
30
MAY 7201P018-60
31
MAY 3804F022-45
←
