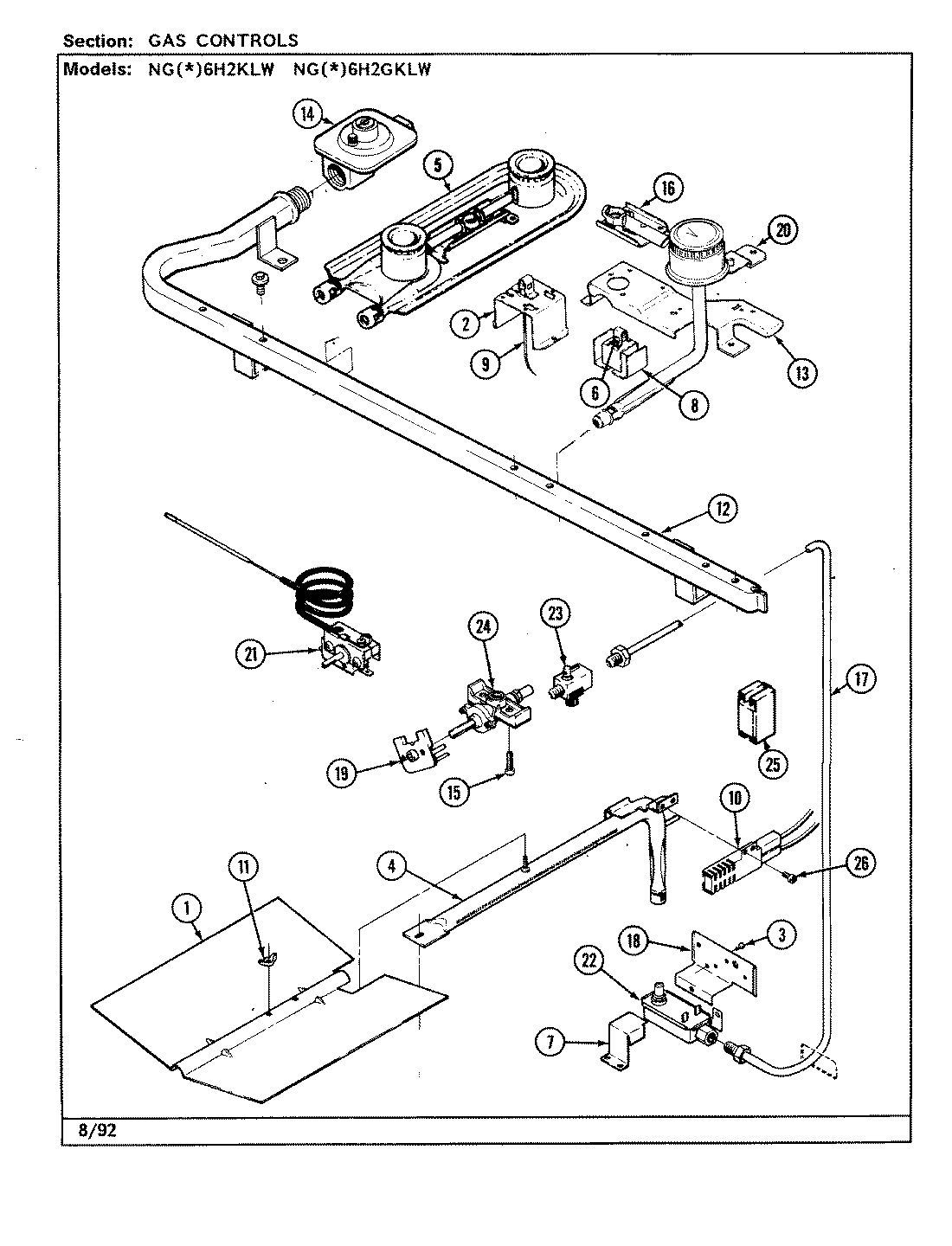

NGW6H2KLW 04 – GAS CONTROLS

Products

Position	Product
1	MAY 3601F101-45
2	MAY 3807F112-34
3	WP4159193 Whirlpool Screw
4	MAY 7505P065-60
5	MAY 3412A004-23
7	MAY 4005F173-51
9	MAY 7432P015-60
10	MAY 7432P051-60K
10	MAY 7432P067-60
11	NUT, WING
12	MAY 7513P052-60
14	MAY 7510P002-60
15	MAY 7101P043-60
15	MAY 7101P296-60
16	MAY 7506P018-60
17	MAY 3414F051-44
18	MAY 3807F124-34
19	WP7403P190-60 Whirlpool Switch
20	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
21	MAY 7515P019-60
21	MAY 7101P279-60
21	MAY 7404P062-60
22	MAY 1555251
22	MAY 7501P106-60
22	MAY 7501P015-60
23	MAY 7502P002-60
24	MAY 7502P009-60
25	MAY 7431P003-60
25	MAY 7431P017-60
26	SCREW (10-24X5/16-NI)
