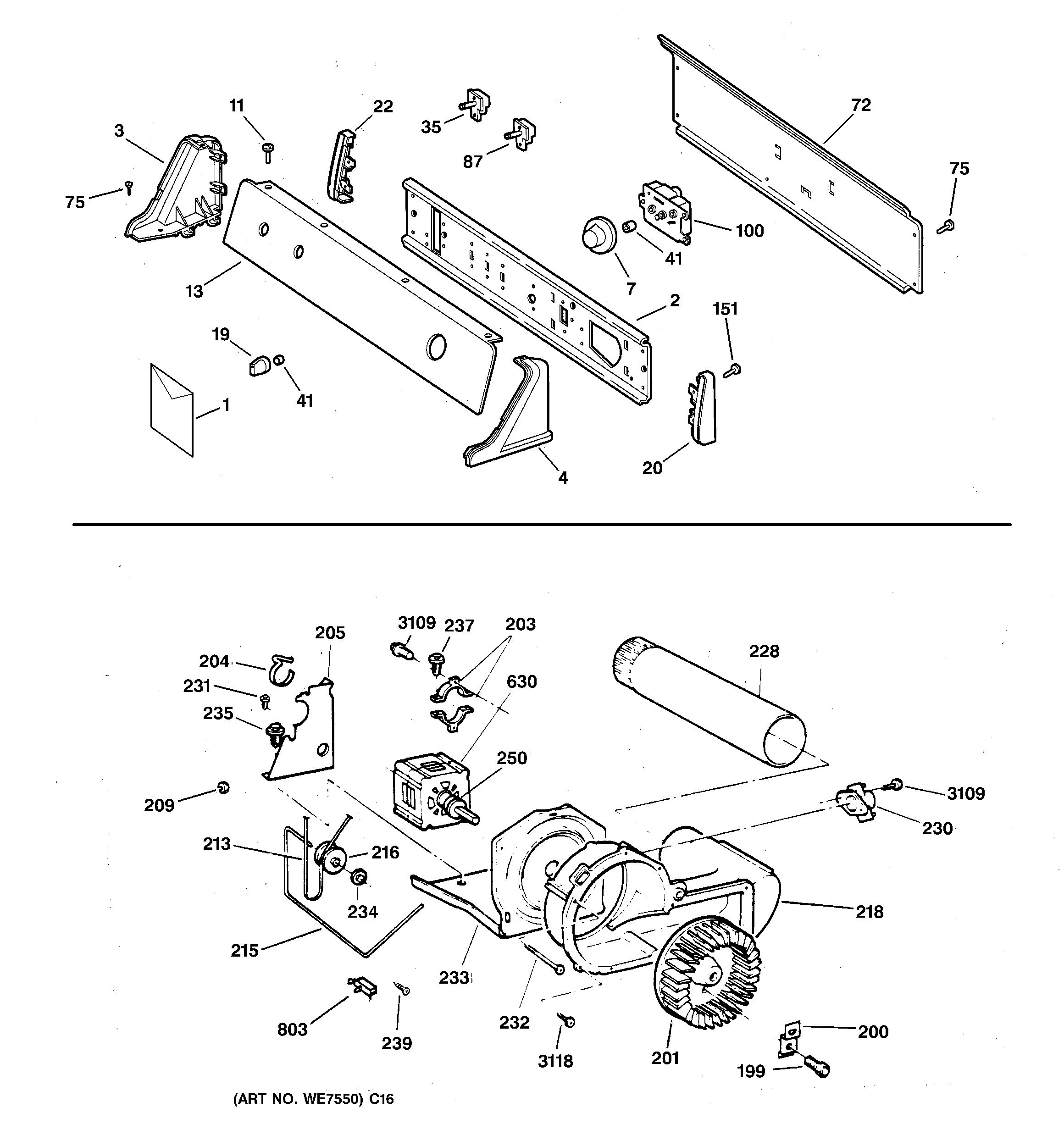

NJSR453GW2WW BACKSPLASH, BLOWER AND DRIVE ASSEMBLY

NJSR453GW2WW BACKSPLASH, BLOWER AND DRIVE ASSEMBLY

Written by

in

NJSR453GW2WW BACKSPLASH, BLOWER AND DRIVE ASSEMBLY

Products

PositionProduct
1GEN 49-90069
1GEN 31-16045
1GEN 39-9983
2GEN WH46X0348
7GEN WE01X1267
11GEN WH02X1206
13GEN WE19M1131
19GEN WH01X2756
20GEN WE19M1059
22GEN WE19M1058
35WE4X881 GE Dryer Rotary Start Switch
41GEN WE01X0980?
72GEN WE20X0811
75WE2M173 GE Screw
87GEN WE4M239
100WE4M188 GE Timer
112WR01X21159 GE Button Plug
151WZ4X241D GE Screw Package
199GEN WE02X0280
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205WE13M39 GE Motor Support
209GEN WE02M0165
213WE03X29897 BELT DRIVE
215WE03X20434 GE Washer Idler Arm
216WE12X81 GE Dryer Idler Pulley
218GEN WE14M0078
222GEN WE20M0253
228WE14X20421 GE Exhaust Duct
230WE4M216 GE Dryer Bias Thermostat
232WE2M202 GE Screw
233MOTOR PLATE (E-COAT)
234GEN WE02M0096
235WE1M280 GE Screw
236WE1M642 GE Washer Leveling Leg
237WE2M200 GE Ground Screw
239GEN WE02M0167
250GEN WE12X0041
305WE49X22295 GE Front Panel Assembly
307PANEL DOOR OUTER WH
311WE14X25080 GE Dryer Lint Filter Trap Assembly
312FELT TRAP DUCT
313WE3M26 GE Washer Dryer Front Drum Bearing
316GEN WE01M0333
325WE1M825 GE Washer 39 Inch Dryer Gasket Seal
327WE1M1011 GE Washer Dryer Door Latch
328GEN WE1M449
380WE4M415 GE Washer Door Switch
401WE20X20417 GE Cover White
403WE2M160 GE Screw
404GEN WE20M0260
405WR2X9260 GE Refrigerator Screw
408GEN WE20M304
410LEVEL LEG & BRKT FRNT
410WE1M468 GE Leveling Screw Bracket
420WE20X20559 GE Rear Panel
421CORD SET 120V
461WZ5X158D GE Screw Package of 12
502WE2M174 GE Screw #10
503WE21X20562 GE Drum Assembly
504WE11X29438 GE Washer Drum Mounting Hub
505THERMOSTAT TRIMMER
507GEN WE4M0181
509WE14M75 GE Baffle Assembly
515WE1X1172 GE Strap Assembly
525SCREW TIMMER T-STAT
526WE11X29440 GE Combustion Chamber
527WE11X29441 GE Duct Transition
530WE4M80 GE Dryer Thermostat
532DIFFUSER GAS
534WE2M163 GE Washer Screw
552WE4X448 GE Heat Detector Assembly
610WE9M13 GE Door Gasket
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
702GEN WE1M472
709WE1X1148 GE Main Orifice
710WE1X1076 GE Leak Limiter
711GEN 1/8-27 NPT
712WE14X215 GE Gas Valve
714GEN WE1M471
716WE14M104 GE Burner Assembly
717WE04X25996 GE Washer Igniter
721GEN WE13X0118
723GEN WE13X0195
729WE4X692 GE Gas Valve Solenoid
730WR01X10317 GE Refrigerator Screw 8-32 CA Hex Washer 1/2
731WE4X693 GE Main Coil
732GEN WE13X0169
803WD21X10261 GE Dishwasher Interlock Switch
3046WE2M196 GE Screw #8
3049WE1X1192 GE Dryer Door Strike
3051WE1M1033 GE Hinge
3102WE1M300 GE Dryer Bearing Bracket
3109WD02X10057 GE Dishwasher Screw 10-16 x 1
3118GEN WH02M0342
3127WE25M40 GE Dryer Rear Bearing Kit
9999WE25X218 GE Conversion Kit
9999WE25X217 GE LP Natural Gas Conversion Kit
