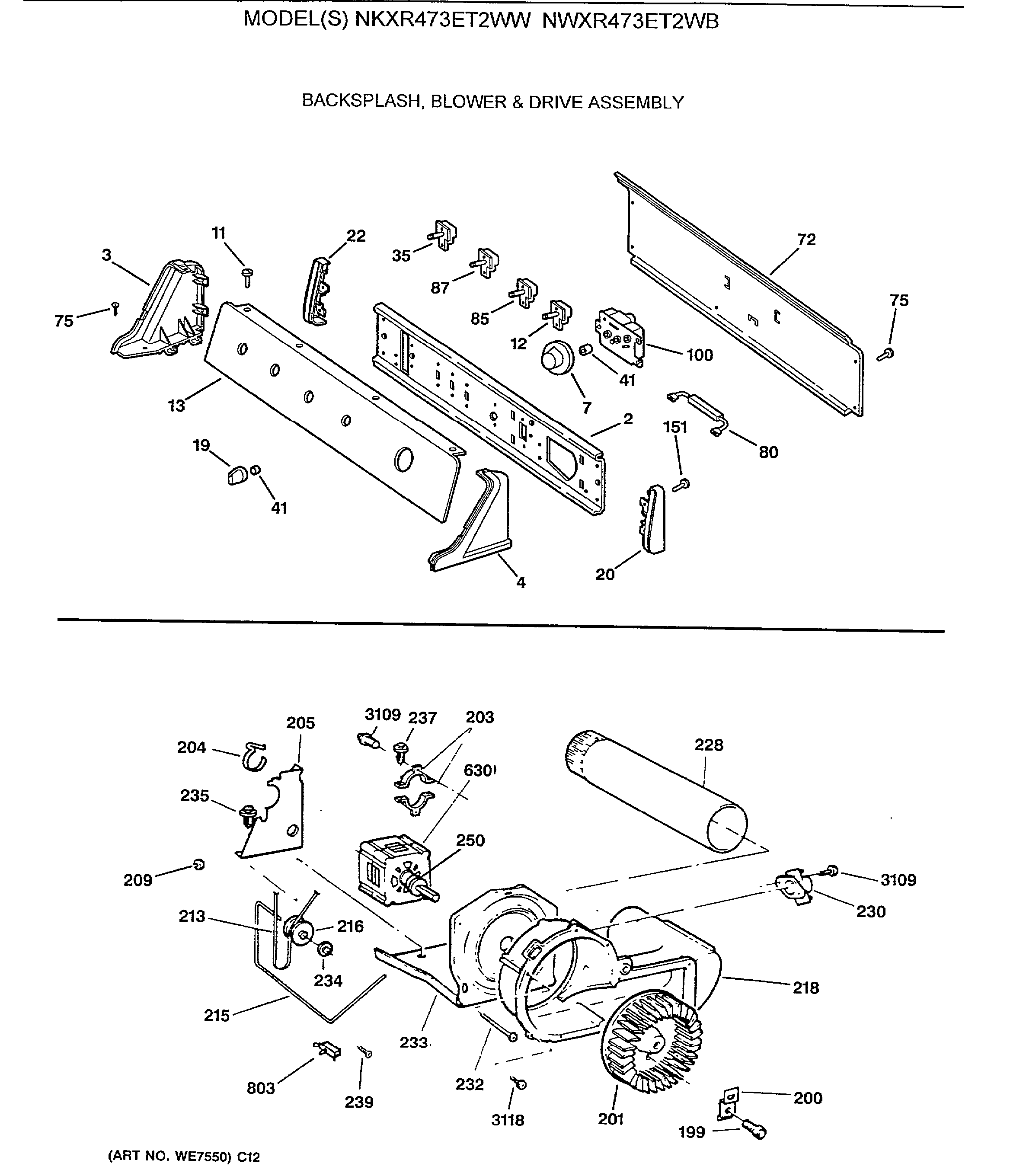

NKXR473ET2WW BACKSPLASH, BLOWER & DRIVE ASSEMBLY

Products

Position	Product
1	GEN 39-9332
1	GEN 31-2791
1	GEN 31-1742
2	GEN WH46X0348
3	GEN WE19M0940
4	GEN WE19M0941
7	GEN WE01X1267
11	GEN WH02X1206
12	GEN WH12X1005
13	GEN WE19M0943
19	GEN WH01X2756
20	GEN WE19X0984
22	GEN WE19X0983
35	WE4X881 GE Dryer Rotary Start Switch
41	GEN WE01X0980?
72	GEN WE20X0811
75	WE2M173 GE Screw
80	GEN WE04M0186
85	WE4M399 GE Rocker Switch
87	GEN WE04M0185
100	WE4M189 GE Timer
151	WZ4X241D GE Screw Package
199	GEN WE02X0280
200	WE1X688 GE Dryer Clamp and Screw
201	WE16M15 GE Washer Dryer Blower Wheel
203	WE13X200 GE Motor Strap
204	WE1X921 GE Motor Strap
205	WE13M39 GE Motor Support
209	GEN WE02M0165
213	WE03X29897 BELT DRIVE
215	WE03X20434 GE Washer Idler Arm
216	WE12X81 GE Dryer Idler Pulley
218	GEN WE14M0078
228	WE14X20421 GE Exhaust Duct
230	GEN WE04M0156
232	WE2M202 GE Screw
233	GEN WE13M0025
234	GEN WE02M0096
235	GEN WE02M0155
237	WE2M200 GE Ground Screw
239	GEN WE02M0167
250	GEN WE12X0041
630	WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
803	WD21X10261 GE Dishwasher Interlock Switch
3109	WD02X10057 GE Dishwasher Screw 10-16 x 1
3118	GEN WH02M0342
