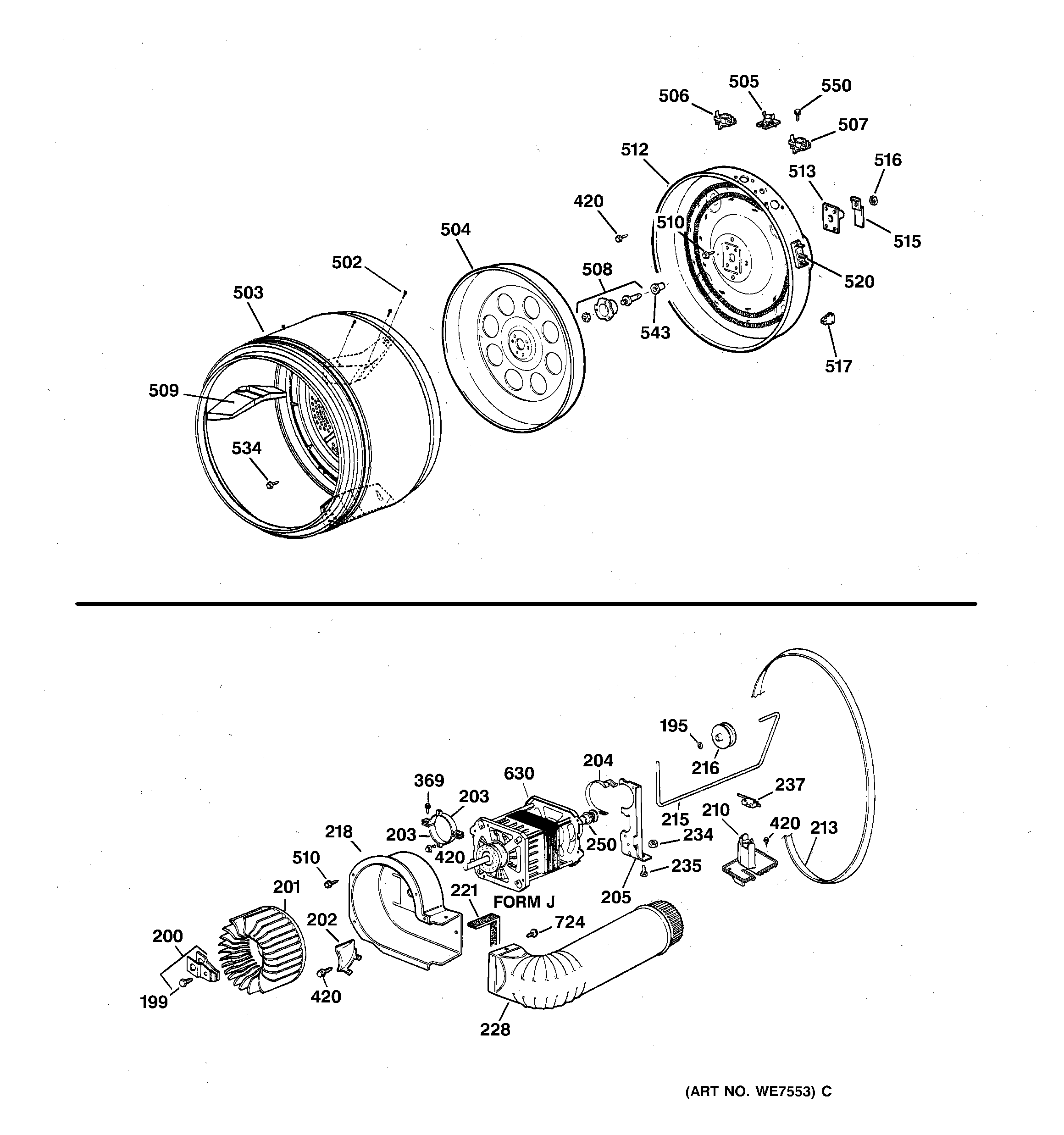

NLLR113ET1WO DRUM, HEATER ASM., BLOWER & DRIVE ASSEMBLY

NLLR113ET1WO DRUM, HEATER ASM., BLOWER & DRIVE ASSEMBLY

Written by

in

NLLR113ET1WO DRUM, HEATER ASM., BLOWER & DRIVE ASSEMBLY

Products

PositionProduct
195GEN WH02X0885
199GEN WE02X0280
200WE1X688 GE Dryer Clamp and Screw
201WE16M15 GE Washer Dryer Blower Wheel
202GEN WE01X0689
203WE13X200 GE Motor Strap
204WE1X921 GE Motor Strap
205GEN WE13X0161
210GEN WE13X0218
213WE12X10014 GE Washer Drive Belt
215GEN WE03X0069
216WE12X83 GE Dryer Idler Pulley
218GEN WE14X0134
221GEN WE01X1171
228GEN WE14X0213
234GEN WE02X0154
235GEN WE02X0194
237GEN WE04X0532
250GEN WE12X0041
369WH2X1217 GE Screw Assembly
420GEN WH02X0893
502GEN WE02X10001
503GEN WE21X10001
504GEN WE14X0086
505WE4X800 GE Dryer Thermal Fuse Thermostat
506GEN WE04X0813
507WE4X584 GE Dryer High Limit Thermostat
508WE25M40 GE Dryer Rear Bearing Kit
509GEN WE14X10001
510WE2X263D GE Screw Package 12 C92
512WE11X103 GE Dryer Large Coil Heater Assembly
513WE1X461 GE Bearing Retainer
515WE1X1172 GE Strap Assembly
516WR01X10212 GE Refrigerator 8-32 Nut
517GEN WE01X1176
520GEN WE01X1177
534GEN WE02X0153
543WE3X75 GE Dryer Rear Drum Bearing
550GEN WE02X0281
630WE17X10010 GE Washer Dryer Drive Motor and Pulley Assembly
724SCREW 10-16 X 1/2" HEX
