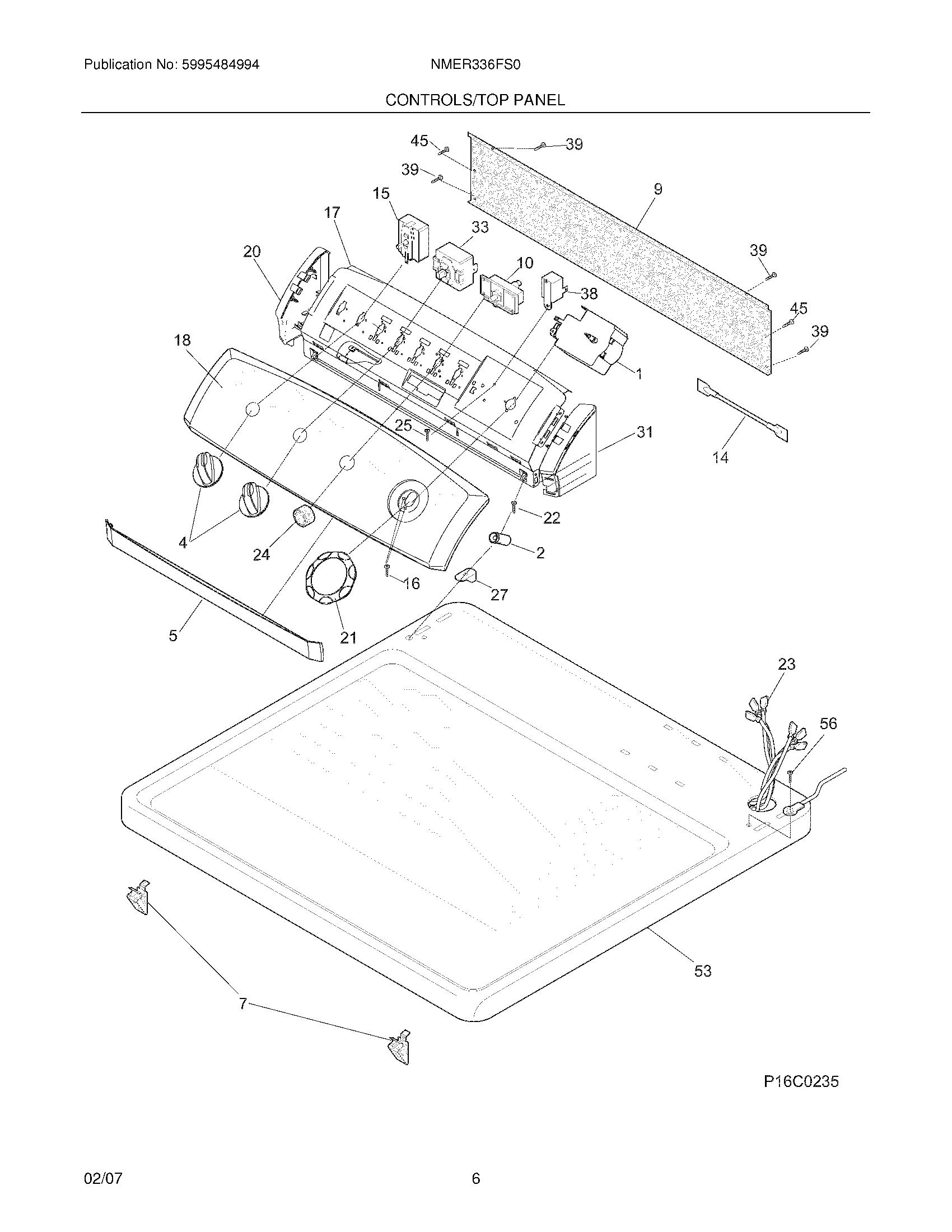

NMER336FS0 07 – CONTROLS/TOP PANEL

Products

Position	Product
NI	WCI 131629600
1	131719100 Frigidaire Timer Assembly
2	WCI 134096100
4	134844410 Frigidaire Washer Dryer Selector Knob White
5	WCI 134019900
7	3205821 Frigidaire Clip
9	WCI 131992900
10	131469000 Frigidaire Switch-Push/Start P1
14	WCI 134446800
15	WCI 134398500
16	218359202 Frigidaire Refrigerator Screw
17	WCI 131993040
18	WCI 134864900
20	WCI 134019610
21	134886700 Frigidaire Dryer Timer Knob
22	WCI 131266330
23	Wiring Harness
24	WCI 131111501
25	5303015671 Frigidaire Bracket Termination Screw
27	CLIP-CONSOLE MTG
31	WCI 134019600
33	Switch,2 position
38	WCI 131629400
39	131168200 Frigidaire Dryer Screw
45	131205100 Frigidaire Screw
53	WCI 134086802
56	131243800 Frigidaire Screw
