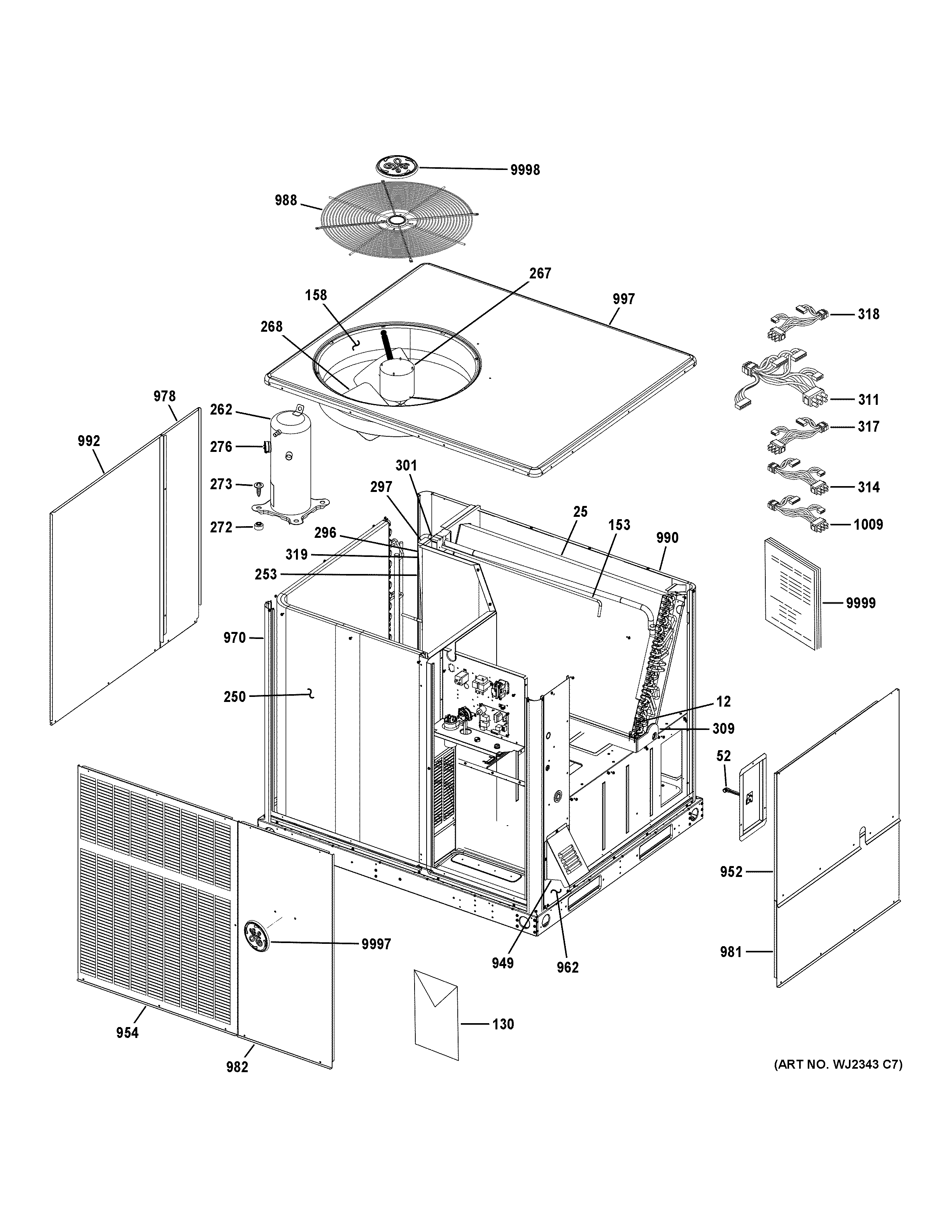

NP16G60V12604 BODY PARTS

Products

Position	Product
12	SWITCH-INTERLOCK LEVEL SENSOR NC
25	ASSY-COIL EVAP 24X40.5 3 ROW-(CTO)
52	102857-27 LIMIT CONTROL (195F)
130	LABEL-WIRING DIAGRAM 16 GE-(CTO)
153	ASSY-DISTRIBUTOR 9 TUBE-(CTO)
158	ORIFICE RING 22 I.D. X 6 -(CTO)
250	ASSY-COIL(2 ROW J-STYLE 22 FPI-(CTO)
253	VALVE-EXPANSION (INDOOR) 5TON
262	107253-08 COMP ZPS51K7E-PFV R410A 230-1
267	100483-43 Cond Fan MTR 1/4HP 208/230-1
268	FAN 24" 3-BLADE 30-PITCH CCW-(CTO)
272	GROMMET-COMPRESSOR-(CTO)
273	BOLT-SLEEVE COMBINATION-(CTO)
276	HARNESS-COMP MOLDED PLUG-(CTO)
296	100087-14 SWITCH-HI PRESS
297	100087-15 SWITCH-LO PRESS
301	DRIER R410A – ONE WAY – 55G-(CTO)
309	PAN-DRAIN PLST INSUL LG-(CTO)
311	W/H SECONDARY ELEC-(CTO)
314	HARNESS-MTR (CONTROL)-(CTO)
317	HARNESS-WIRING-(CTO)
318	HARNESS (MOLDED PLUG)-(CTO)
319	Valve Core
949	VENT HOOD-(CTO)
952	PNL BLOWER ACCESS LG-(CTO)
954	PNL -LOUVER LEFT SIDE LG-(CTO)
962	PNL -UTILITY G/E LG-(CTO)
970	POST-CORNER LARGE-(CTO)
978	PNL -COMPRESSOR ACCESS LG-(CTO)
981	PANEL -HEAT EXCHANGER ACCESS-(CTO)
982	PNL -CONTROL ACCESS LG-(CTO)-(CTO)
988	GUARD-FAN WIRE BLK-(CTO)
990	PNL REAR LG 3DR ARM TXT GRAY-(CTO)
992	PNL-LOUVER FRONT LARGE-(CTO)
997	PNL TOP LG ARM TXT
1009	GEN 22C75
9997	GEN 10721304
9998	GEN 10721306
9999	PM SERVICE INSTRUCTIONS
