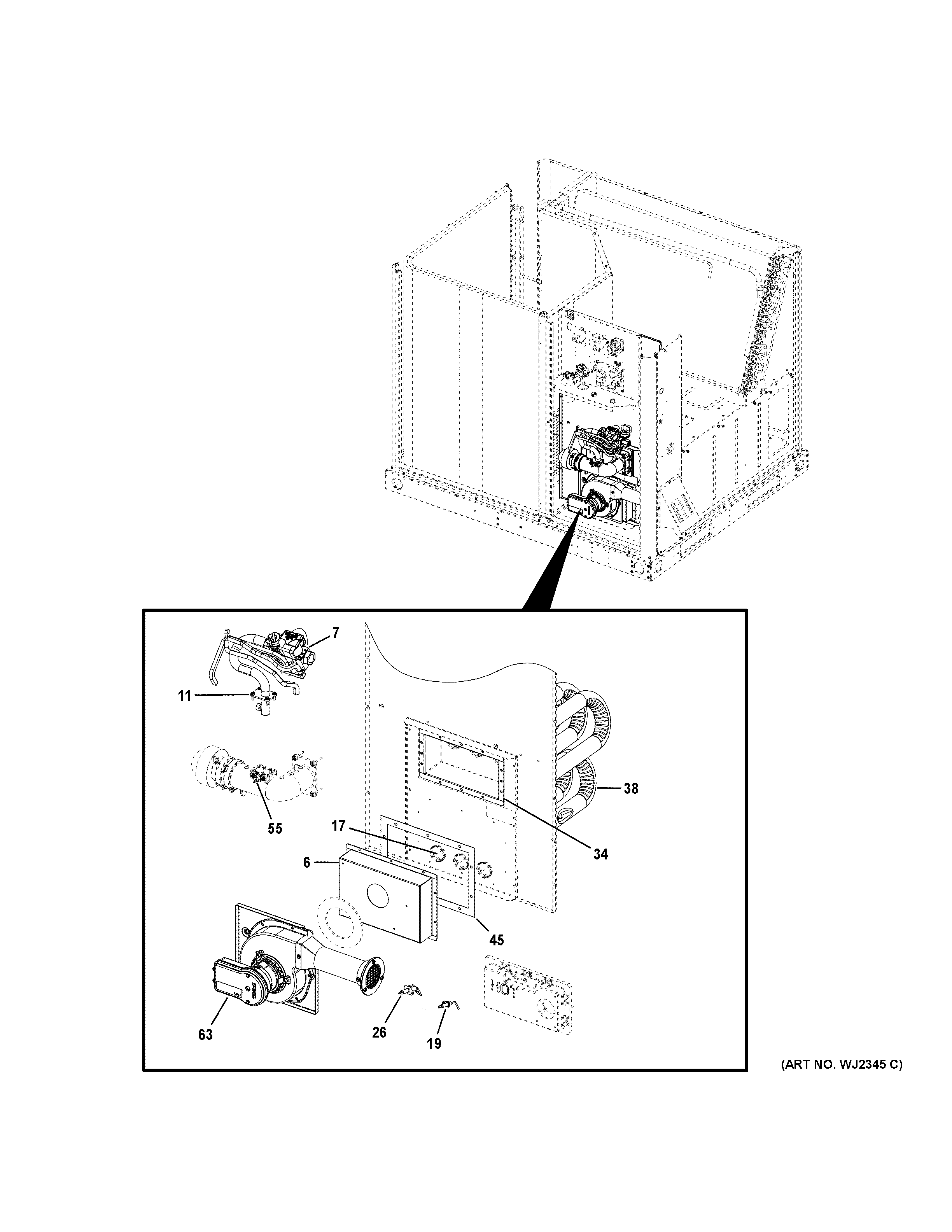

NP16G60V12604 GAS VALVE & BURNER ASSEMBLY

Products

Position	Product
6	BOX COLLECTOR (7 BURNER)-(CTO)
7	10A33 GE 103181-04 Gas Valve 2 Stage
11	ASSY-MANIFOLD GAS 7 BURN-(CTO)
17	ORIFICE #47 -(CTO)
19	104160-01 SENSOR FLAME
26	IGNITOR
34	BURNER, INSHOT-(CTO)
38	HEAT EXCH LG 7TU W/VEST-(CTO)
45	GASKET FLUE COVER 6-7 BURNER-(CTO)
55	10G93 GE 100811-03 Rollout Limit Control
63	BLWR COMUSTION 2-STAGE-(CTO)
